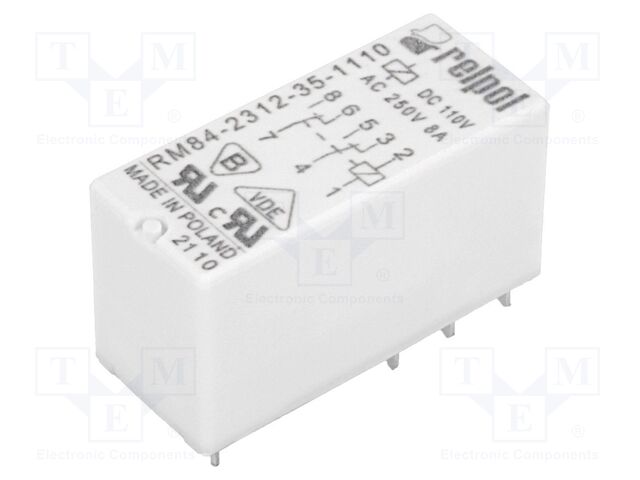

RELPOL RM84-2312-35-1110 | Relay: electromagnetic; DPDT; Ucoil: 110VDC; 8A; 8A/250VAC; PCB

RELPOL . RM84-2312-35-1110

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM84-2312-35-1110 | Relay: electromagnetic; DPDT; Ucoil: 110VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple1
height15.7
height_AttribHeight
jsonUrlDatad37a2f21fd0c3809f220147408941513.
jsonUrlData234fd014a168f7b5853f3
keywordsRELPOL, RM84-2312-35-1110, RM84-P-110VDC-AU
MPNRM84-2312-35-1110
qtyInStock0
SKURM84-P-110VDC-AU
snippetRELPOL RM84-2312-35-1110 | Relay: electromagnetic; DPDT; Ucoil: 110VDC; 8A; 8A/250VAC; PC
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage110V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance25.2k?
Coil voltage min77V DC
Coil voltage max280V DC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
Height15.7mm
Number of pins8
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84-P-110VDC-AU11
TMERM84-2312-35-1110100010001000 @ $6.86
