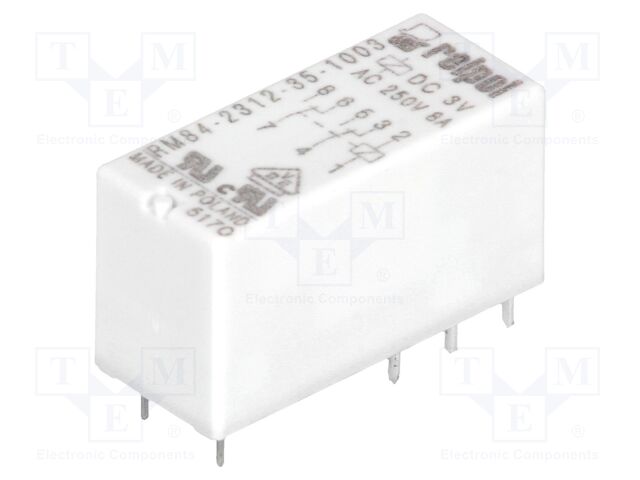

RELPOL RM84-2312-35-1003 | Relay: electromagnetic; DPDT; Ucoil: 3VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM84-2312-35-1003

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM84-2312-35-1003 | Relay: electromagnetic; DPDT; Ucoil: 3VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple1
height15.7
height_AttribHeight
jsonUrlData8d495f6361ae54063da2cebed321190a.
jsonUrlData2b6879349371962bc9bb0
keywordsRELPOL, RM84-2312-35-1003
MPN, SKURM84-2312-35-1003
qtyInStock0
snippetRELPOL RM84-2312-35-1003 | Relay: electromagnetic; DPDT; Ucoil: 3VDC; 8A; 8A/250VAC; 8A/24VD
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage3V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance22?
Coil voltage min2.1V DC
Coil voltage max7.6V DC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi/Au 5?m
Terminal pitch5mm
Related itemsGD50,
Height15.7mm
Number of pins8
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84-2312-35-100311
