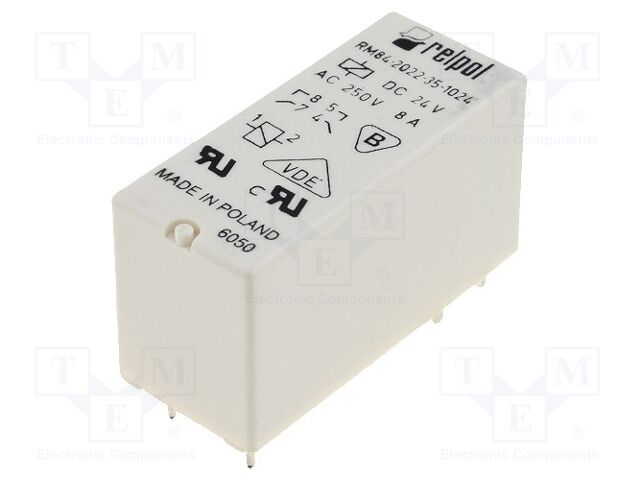

RELPOL RM84-2022-35-1024 | Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 8A; 8A/250VAC; PCB

RELPOL . RM84-2022-35-1024

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM84-2022-35-1024 | Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple, tierMinQty11
height15.7
height_AttribHeight
jsonUrlDataf735e4f551c114aecfa00a02384c39fb.
jsonUrlData2c525794f9742e7ac073a
keywordsRELPOL, RM84-2022-35-1024
MPN, SKURM84-2022-35-1024
qtyInStock413
snippetRELPOL RM84-2022-35-1024 | Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 8A; 8A/250VAC; PC
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.93
tierPrice21.75
tierPrice31.36
tierPrice41.19
tierPrice51.1
Type of relayelectromagnetic
Contacts configurationDPST-NO
Rated coil voltage24V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance1440?
Coil voltage min16.8V DC
Coil voltage max61.2V DC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
Height15.7mm
OEM number600468
Number of pins6
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84-2022-35-1024141311 @ $1.93, 5 @ $1.75, 20 @ $1.36, 100 @ $1.19, 500 @ $1.10
TMERM84-Z-24V11
