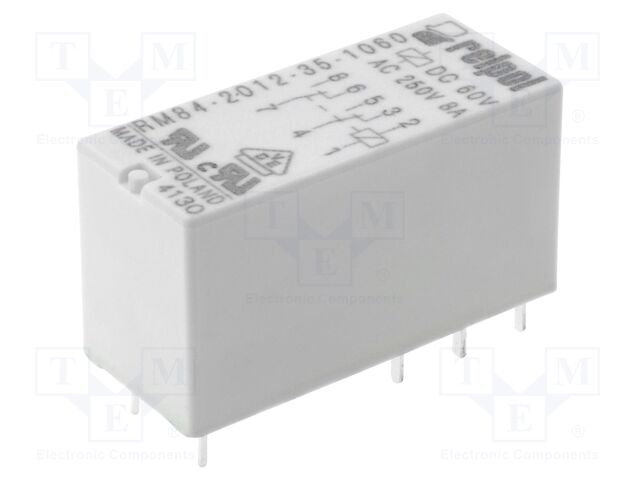

RELPOL RM84-2012-35-1060 | Relay: electromagnetic; DPDT; Ucoil: 60VDC; 8A; 8A/250VAC; 8A/24VDC

RELPOL . RM84-2012-35-1060

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
DimensionUnitmm
Extra Product NameRELPOL RM84-2012-35-1060 | Relay: electromagnetic; DPDT; Ucoil: 60VDC; 8A; 8A/250VAC; 8A/24VDC
atoms, moq, multiple, tierMinQty11
height15.7
height_AttribHeight
jsonUrlDataa689b7891200c093d5f7278b607274ed.
jsonUrlData2e7cc00c205f842adab0c
keywordsRELPOL, RM84-2012-35-1060
MPN, SKURM84-2012-35-1060
qtyInStock1160
snippetRELPOL RM84-2012-35-1060 | Relay: electromagnetic; DPDT; Ucoil: 60VDC; 8A; 8A/250VAC; 8A/24VD
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.9
tierPrice21.73
tierPrice31.34
tierPrice41.17
tierPrice51.08
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage60V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance7500?
Coil voltage min42V DC
Coil voltage max153V DC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
Height15.7mm
OEM number600338
Number of pins8
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84-2012-35-10601116011 @ $1.90, 5 @ $1.73, 20 @ $1.34, 100 @ $1.17, 500 @ $1.08
