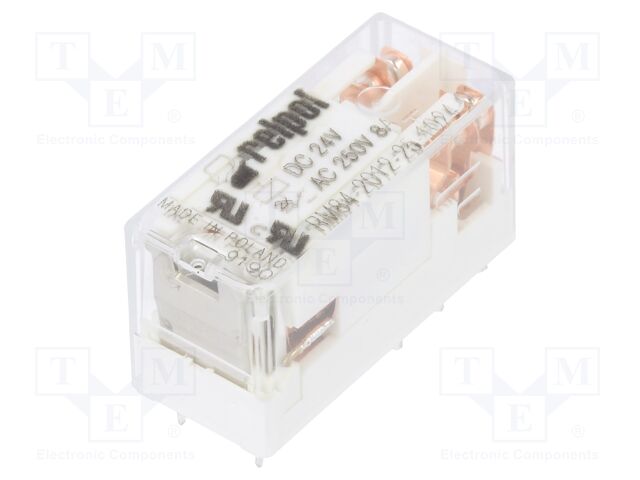

RELPOL RM84-2012-25-1024-01 | Relay: extension; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC; PCB

RELPOL . RM84-2012-25-1024-01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
DimensionUnitmm
Extra Product NameRELPOL RM84-2012-25-1024-01 | Relay: extension; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC; PCB
Weight14
WeightUnitg
Weight_AttribWeight
atoms, moq, multiple, tierMinQty11
height15.7
height_AttribHeight
jsonUrlData444d8ef50c5a599ab725b896545b0e93.5
jsonUrlData245d7ad38492d6ca75143
MPNRM84-2012-25-1024-01
qtyInStock245
SKURM84201225102401
snippetRELPOL RM84-2012-25-1024-01 | Relay: extension; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC; PC
tierMinQty210
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice13.86
tierPrice23.56
tierPrice33.28
tierPrice43.15
tierPrice52.85
Type of relayextension
Contacts configurationDPDT
Rated coil voltage24V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance1.44k?
Coil voltage min16.8V DC
Coil voltage max61.2V DC
Operate time7ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Mechanical durability30000000 cycles
Operating temperature-40...85?C
Relay seriesRM84
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Height15.7mm
Related itemsGD50,
OEM number859619
Number of pins8
Body colourtransparent

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM84201225102401124511 @ $3.86, 10 @ $3.56, 20 @ $3.28, 100 @ $3.15, 500 @ $2.85
TMERM84-P-24V-111
