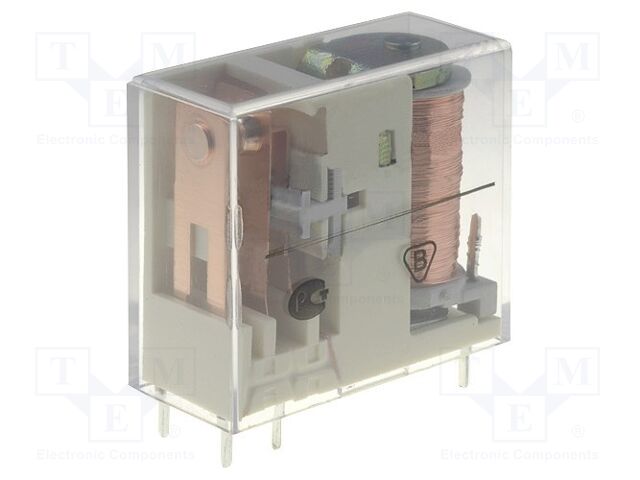

RELPOL RM83-1021-25-1048-01 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; max.400VAC; 16A; PCB

RELPOL . RM83-1021-25-1048-01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
Extra Product NameRELPOL RM83-1021-25-1048-01 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; max.400VAC; 16A; PCB
Weight18
WeightUnitg
Weight_AttribWeight
atoms, moq, multiple1
jsonUrlDatad73dd57f5acf6e52d4cadbfc79c758dd.5
jsonUrlData211370137b6b93d0d52c5
MPNRM83-1021-25-1048-01
qtyInStock0
SKURM83-Z-48V-1
snippetRELPOL RM83-1021-25-1048-01 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; max.400VAC; 16A; PC
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage48V DC
Switched voltagemax. 250V DC,
Relay varianttransparent
Switched current16A
MountingPCB
Coil resistance4.4k?
Coil voltage min33.6V DC
Coil voltage max85V DC
Operate time7ms
Body dimensions29.5x13.1x25.5mm
Release time3ms
Coil power consumption0.6W
Operating temperature-40...70?C
Relay seriesRM83
Contacts pitch5mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM83-Z-48V-111
