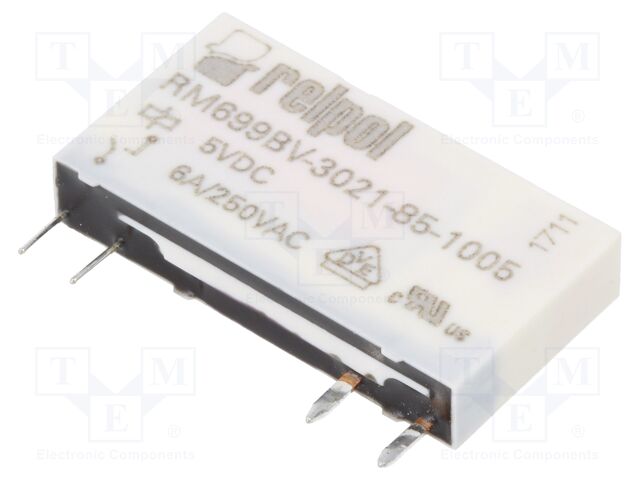

RELPOL RM699BV-3021-85-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 6A; 6A/250VAC; 170mW

RELPOL . RM699BV-3021-85-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM699BV-3021-85-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 6A; 6A/250VAC; 170mW
atoms, moq, multiple1
jsonUrlData6e417e4b41e0cc2316544fef0c0fc396.
jsonUrlData283d567f062594b7c57be
keywordsRELPOL, RM699BV-3021-85-1005, RM699BV3021851005, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM699BV-3021-85-1005
qtyInStock0
SKURM699BV3021851005
snippetRELPOL RM699BV-3021-85-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 6A; 6A/250VAC; 170m
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max6A
AC contacts rating @R6A / 250V AC
DC contacts rating @R6A / 24V DC
Switched voltagemax. 24V DC,
Relay variantinterface
MountingPCB,
Coil resistance147?
Coil voltage min3.75V DC
Coil voltage max7.5V DC
Operate time8ms
Body dimensions28x5x15mm
Release time4ms
Coil power consumption170mW
IP ratingIP64
Operating temperature-40...85?C
Relay seriesRM699B
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
Related itemsPI6W-1P,
OEM number2615443
