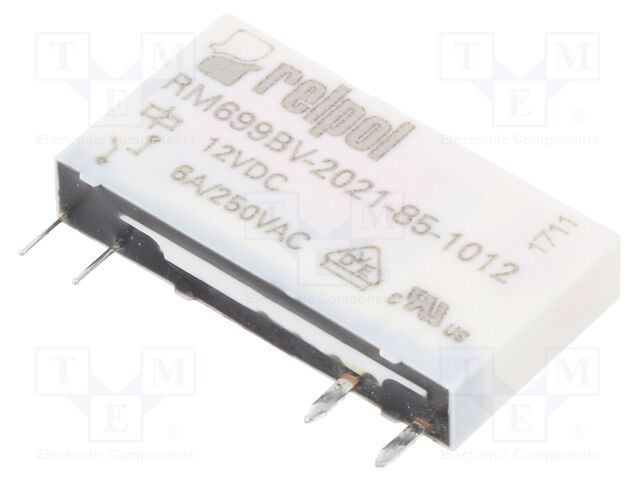

RELPOL RM699BV-2021-85-1012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 6A; 6A/250VAC; 170mW

RELPOL . RM699BV-2021-85-1012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM699BV-2021-85-1012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 6A; 6A/250VAC; 170mW
atoms, moq, multiple, tierMinQty11
jsonUrlData21dba3d147d52ccd33a1a4b24c3eba02.
jsonUrlData21611c879b345543dc15b
keywordsRELPOL, RM699BV-2021-85-1012, RM699BV2021851012, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNRM699BV-2021-85-1012
qtyInStock185
SKURM699BV2021851012
snippetRELPOL RM699BV-2021-85-1012 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 6A; 6A/250VAC; 170m
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice16.36
tierPrice26.01
tierPrice35.66
tierPrice45.31
tierPrice54.82
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max6A
AC contacts rating @R6A / 250V AC
DC contacts rating @R6A / 24V DC
Switched voltagemax. 24V DC,
Relay variantinterface
MountingPCB,
Coil resistance848?
Coil voltage min9V DC
Coil voltage max18V DC
Operate time8ms
Body dimensions28x5x15mm
Release time4ms
Coil power consumption170mW
IP ratingIP64
Operating temperature-40...85?C
Relay seriesRM699B
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsPI6W-1P,
OEM number2615502

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM699BV2021851012118511 @ $6.36, 5 @ $6.01, 20 @ $5.66, 100 @ $5.31, 500 @ $4.82
