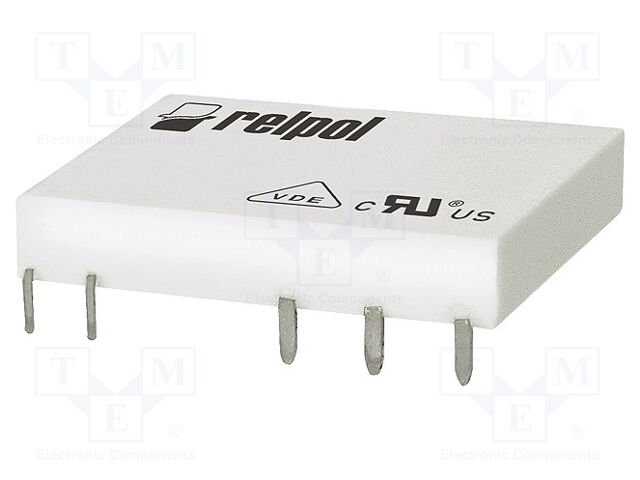

RELPOL RM699BH-3011-85-1024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/24VDC

RELPOL . RM699BH-3011-85-1024

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
Extra Product NameRELPOL RM699BH-3011-85-1024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/24VDC
atoms, moq, multiple, tierMinQty11
jsonUrlDatad12e4ce752a55200103db9abcaa5155d.5
jsonUrlData26ddde3ae62cfe9386e85
MPNRM699BH-3011-85-1024
qtyInStock0
SKURM699H-P-24
snippetRELPOL RM699BH-3011-85-1024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; 6A/24VD
tierPrice16.61
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V DC
Contact current max6A
AC contacts rating @R6A / 250V AC
DC contacts rating @R6A / 24V DC
Switched voltagemax. 24V DC,
Relay variantinterface
Mountinghorizontal,
Coil resistance3.39k?
Coil voltage min18V DC
Coil voltage max36V DC
Operate time8ms
Body dimensions28x5x15mm
Release time4ms
Coil power consumption170mW
IP ratingIP64
Operating temperature-40...85?C
Relay seriesRM699B
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
OEM number2613700

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM699H-P-24111 @ $6.61
