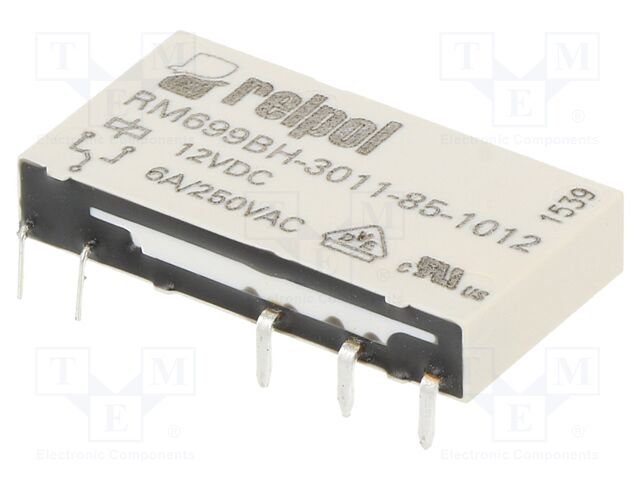

RELPOL RM699BH-3011-85-1012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A; 6A/250VAC; 6A/24VDC

RELPOL . RM699BH-3011-85-1012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM699BH-3011-85-1012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A; 6A/250VAC; 6A/24VDC
atoms, moq, multiple, tierMinQty11
jsonUrlData4c187f3461fef8db0ad654075f1ee6c8.
jsonUrlData2a25ac6562cca788c5d85
keywordsRELPOL, RM699BH-3011-85-1012, RM699H-P-12
MPNRM699BH-3011-85-1012
qtyInStock133
SKURM699H-P-12
snippetRELPOL RM699BH-3011-85-1012 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A; 6A/250VAC; 6A/24VD
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice16.57
tierPrice26.39
tierPrice36.21
tierPrice44.79
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage12V DC
Contact current max6A
AC contacts rating @R6A / 250V AC
DC contacts rating @R6A / 24V DC
Switched voltagemax. 24V DC,
Relay variantinterface
Mountinghorizontal,
Coil resistance848?
Coil voltage min9V DC
Coil voltage max18V DC
Operate time8ms
Body dimensions28x5x15mm
Release time4ms
Coil power consumption170mW
IP ratingIP64
Operating temperature-40...85?C
Relay seriesRM699B
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
OEM number2613699

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM699H-P-12113311 @ $6.57, 5 @ $6.39, 25 @ $6.21, 100 @ $4.79
