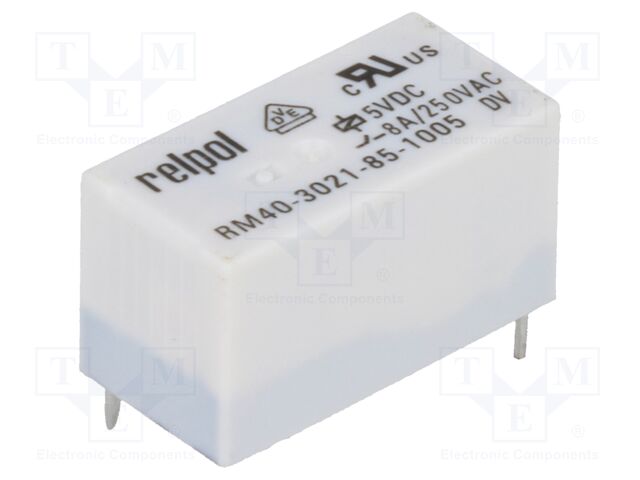

RELPOL RM40-3021-85-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 8A; 8A/250VAC; PCB

RELPOL . RM40-3021-85-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM40-3021-85-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 8A; 8A/250VAC; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData8e046aebd23e4fb99739463d4d1fbdce.
jsonUrlData20160047d835037321f2d
keywordsRELPOL, RM40-3021-85-1005, RM40-Z-05
MPNRM40-3021-85-1005
qtyInStock3547
SKURM40-Z-05
snippetRELPOL RM40-3021-85-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 8A; 8A/250VAC; PC
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice19.19
tierPrice28.35
tierPrice36.66
tierPrice46.04
tierPrice55.41
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 30V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingPCB
Coil resistance125?
Operate time8ms
Body dimensions20x10x10.5mm
Release time4ms
Coil power consumption200mW
IP ratingIP64
Operating temperature-40...85?C
Relay seriesRM40
Contact resistance100m?
Contact materialAgSnO
Terminal pitch7.62mm
OEM number2611684

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM40-Z-051354711 @ $9.19, 5 @ $8.35, 20 @ $6.66, 100 @ $6.04, 500 @ $5.41
