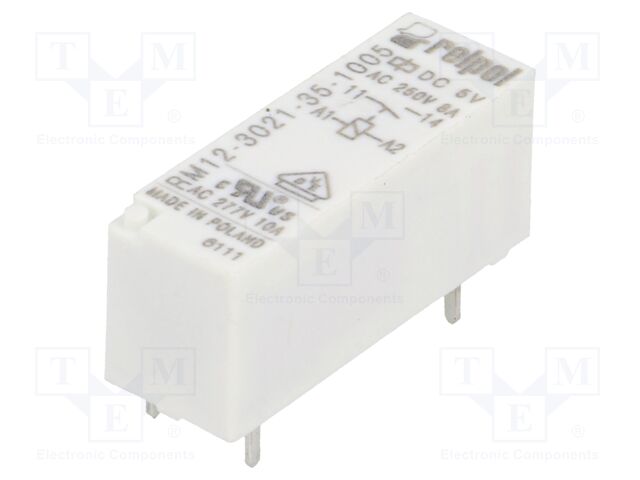

RELPOL RM12-3021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 8A

RELPOL . RM12-3021-35-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM12-3021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 8A
atoms, moq, multiple, tierMinQty11
jsonUrlDataa7c71937237a70523d32a0deb4001d02.
jsonUrlData27f721d56b1da2fe2b0bf
keywordsRELPOL, RM12-3021-35-1005
MPN, SKURM12-3021-35-1005
qtyInStock104
snippetRELPOL RM12-3021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 8
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.8
tierPrice21.63
tierPrice31.26
tierPrice41.12
tierPrice51.04
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max, Current rating8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingTHT
Coil resistance102?
Coil voltage min3.5V DC
Coil voltage max15V DC
Operate time10ms
Body dimensions10.1x12.5x28.5mm
Release time5ms
Coil power consumption250mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM12
Contact resistance100m?
Contact materialAgSnO
Terminal pitch2.54mm
Max surge current10A

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM12-3021-35-1005110411 @ $1.80, 5 @ $1.63, 20 @ $1.26, 100 @ $1.12, 500 @ $1.04
