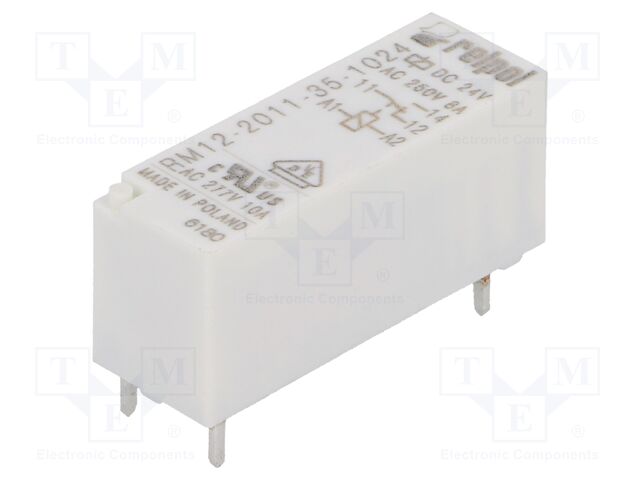

RELPOL RM12-2011-35-1024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 8A; THT

RELPOL . RM12-2011-35-1024

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM12-2011-35-1024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 8A; THT
atoms, moq, multiple, tierMinQty11
jsonUrlDatacc463156a567fe3c2210d240ea07a015.5
jsonUrlData2af04255d646fc85cfd84
keywordsRELPOL, RM12-2011-35-1024, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM12-2011-35-1024
qtyInStock1351
snippetRELPOL RM12-2011-35-1024 | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 8A; TH
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.35
tierPrice21.23
tierPrice30.94
tierPrice40.83
tierPrice50.78
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V DC
Contact current max, Current rating8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingTHT
Coil resistance2.3k?
Coil voltage min16.8V DC
Coil voltage max72V DC
Operate time10ms
Body dimensions10.1x12.5x28.5mm
Release time5ms
Coil power consumption250mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM12
Contact resistance100m?
Contact materialAgNi
Terminal pitch3.2mm
OEM number861982
Max surge current10A

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM12-2011-35-10241135111 @ $1.35, 5 @ $1.23, 20 @ $0.94, 100 @ $0.83, 500 @ $0.78
