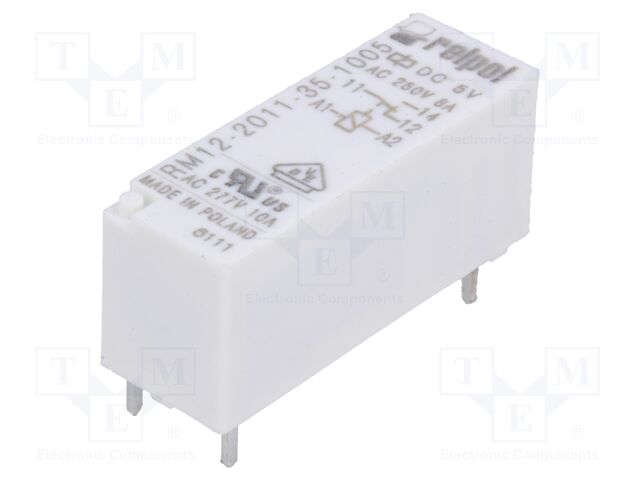

RELPOL RM12-2011-35-1005 | Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 8A; THT

RELPOL . RM12-2011-35-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM12-2011-35-1005 | Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 8A; THT
atoms, moq, multiple1
jsonUrlDatad89c54200766979e4318266ef62f2356.5
jsonUrlData205884481af17a08a3351
keywordsRELPOL, RM12-2011-35-1005, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM12-2011-35-1005
qtyInStock0
snippetRELPOL RM12-2011-35-1005 | Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 8A; TH
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage5V DC
Contact current max, Current rating8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingTHT
Coil resistance102?
Coil voltage min3.5V DC
Coil voltage max15V DC
Operate time10ms
Body dimensions10.1x12.5x28.5mm
Release time5ms
Coil power consumption250mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM12
Contact resistance100m?
Contact materialAgNi
Terminal pitch3.2mm
OEM number861977
Max surge current10A

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM12-2011-35-100511
