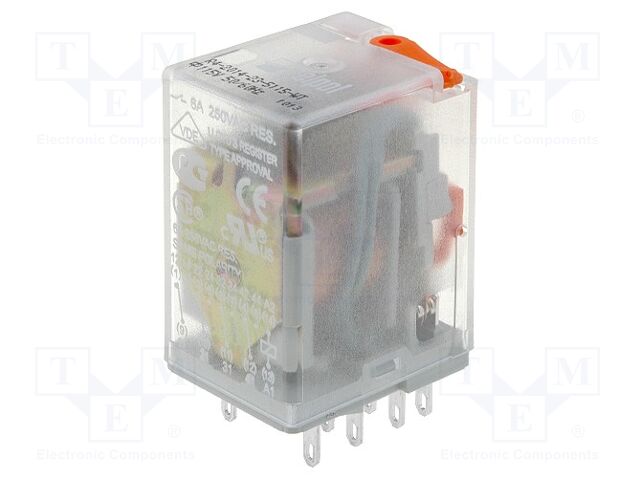

RELPOL R4-2014-23-5115-WT | Relay: electromagnetic; 4PDT; Ucoil: 115VAC; Icontacts max: 12A

RELPOL . R4-2014-23-5115-WT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Industrial Electromagnetic Relays
Extra Product NameRELPOL R4-2014-23-5115-WT | Relay: electromagnetic; 4PDT; Ucoil: 115VAC; Icontacts max: 12A
atoms, moq, multiple1
jsonUrlData9cc0186197dbbe4838dfe2ddbb255cdb.
jsonUrlData24ab4de55e67acf006e79
keywordsRELPOL, R4-2014-23-5115-WT, R4-2014-23-5115, Relays and Contactors, Relays, Electromagnetic Relays, Industrial Electromagnetic Relays
MPNR4-2014-23-5115-WT
qtyInStock0
SKUR4-2014-23-5115
snippetRELPOL R4-2014-23-5115-WT | Relay: electromagnetic; 4PDT; Ucoil: 115VAC; Icontacts max: 12
Type of relayelectromagnetic
Contacts configuration4PDT
Rated coil voltage115V AC
Contact current max12A
AC contacts rating @R6A / 250V AC
DC contacts rating @R6A / 24V DC
Switched voltagemax. 250V AC,
Relay variantindustrial
Mountingsocket
Coil voltage min92V AC
Coil voltage max127V AC
Relay seriesR4
Operating temperature-40...55?C
Body dimensions27.4x21.1x36.6mm
Coil resistance3.61k?
Mechanical durability20000000 cycles
Operate time10ms
Release time6ms
Contact resistance100m?
Coil power consumption1.6VA
Leadsconnectors 2,2x0,5mm
IP ratingIP40
Switching capacity500VA
Related itemsG4,
