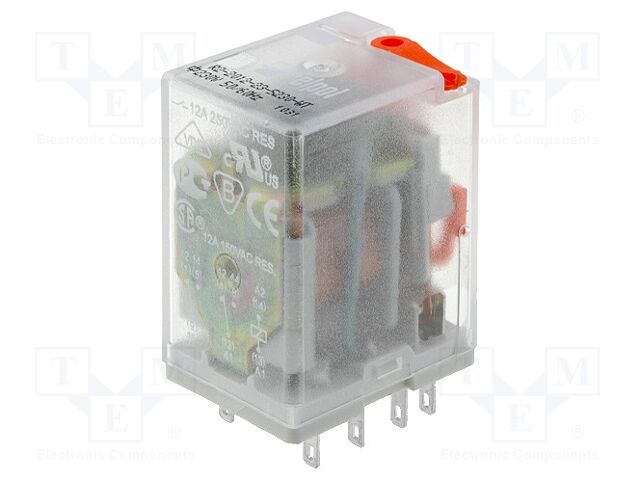

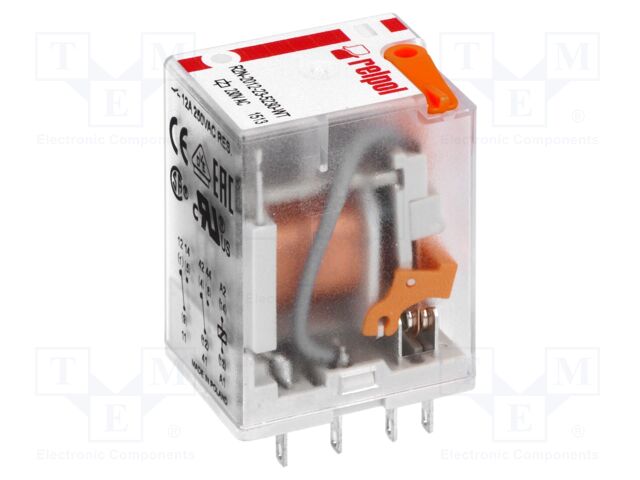

RELPOL R2N-2012-23-5230-WT | Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 24A

RELPOL . R2N-2012-23-5230-WT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Industrial Electromagnetic Relays
Extra Product NameRELPOL R2N-2012-23-5230-WT | Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 24A
atoms, moq, multiple1
jsonUrlDatadf7f9fd319197b3954ba889607bfc710.
jsonUrlData2e7c927b067fbee25e6e1
keywordsRELPOL, R2N-2012-23-5230-WT, R2-2P-230VAC
MPNR2N-2012-23-5230-WT
qtyInStock0
SKUR2-2P-230VAC
snippetRELPOL R2N-2012-23-5230-WT | Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 24
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage230V AC
Contact current max24A
AC contacts rating @R12A / 250V AC
DC contacts rating @R12A / 24V DC
Switched voltagemax. 250V DC,
Relay variantindustrial
Mountingsocket
Coil voltage min184V AC
Coil voltage max253V AC
Relay seriesR2
Operating temperature-40...55?C
Body dimensions27.5x21.2x35.6mm
Coil resistance16.1k?
Mechanical durability20000000 cycles
Operate time10ms
Release time8ms
Contact resistance100m?
Coil power consumption1.6VA
Leadsconnectors 2,2x0,5mm
IP ratingIP40
Related itemsG4/2,

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMER2-2P-230VAC11
TMER2N2012235230WT12011 @ $7.83, 5 @ $7.59, 25 @ $7.36, 100 @ $6.21
