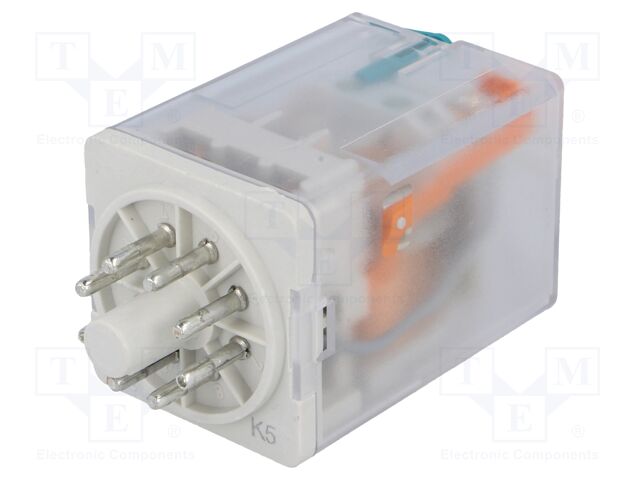

RELPOL R15-2012-23-1048-WT | Relay: electromagnetic; DPDT; Ucoil: 48VDC; Icontacts max: 20A

RELPOL . R15-2012-23-1048-WT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Industrial Electromagnetic Relays
Extra Product NameRELPOL R15-2012-23-1048-WT | Relay: electromagnetic; DPDT; Ucoil: 48VDC; Icontacts max: 20A
atoms, moq, multiple, tierMinQty11
jsonUrlData1d69444e11fea24228e4298ad708ec64.
jsonUrlData2bf6511c335f523a3af8b
keywordsRELPOL, R15-2012-23-1048-WT, R15-2P-48VDC
MPNR15-2012-23-1048-WT
qtyInStock, Number of pins8
SKUR15-2P-48VDC
snippetRELPOL R15-2012-23-1048-WT | Relay: electromagnetic; DPDT; Ucoil: 48VDC; Icontacts max: 20
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice115.4
tierPrice214.94
tierPrice314.49
tierPrice412.23
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage48V DC
Contact current max20A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 24V DC
Switched voltagemax. 250V DC,
Relay variantindustrial
Mountingsocket
Relay seriesR15
Operating temperature-40...70?C
Body dimensions35x35x54.5mm
Coil resistance1.75k?
Contact resistance100m?
Coil power consumption1.5W
Leadsstud terminals
Electrical connectionround socket
Kind of connectoroctal
Related itemsGOP8,
OEM number802889

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMER15-2P-48VDC1811 @ $15.40, 5 @ $14.94, 25 @ $14.49, 100 @ $12.23
