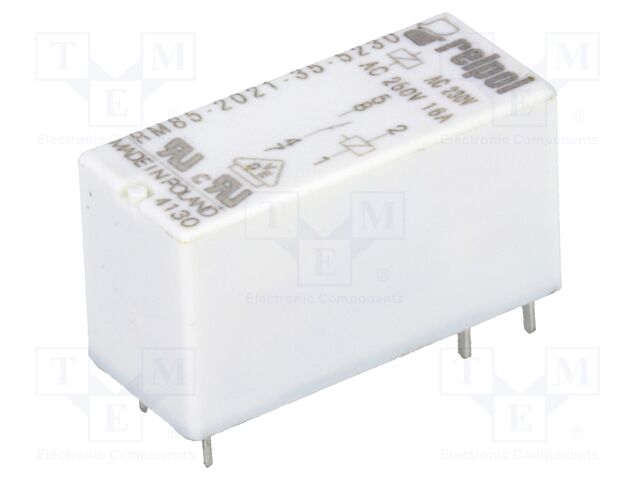

RELPOL RM85-2021-35-5230 | Relay: electromagnetic; SPST-NO; Ucoil: 230VAC; Icontacts max: 16A

RELPOL . RM85-2021-35-5230

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-2021-35-5230 | Relay: electromagnetic; SPST-NO; Ucoil: 230VAC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlData6801d46886d596ecb7fffdde702e4e0d.
jsonUrlData2f62609b2bc6ceb1e9c03
keywordsRELPOL, RM85-2021-35-5230
MPN, SKURM85-2021-35-5230
qtyInStock351
snippetRELPOL RM85-2021-35-5230 | Relay: electromagnetic; SPST-NO; Ucoil: 230VAC; Icontacts max: 16
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice15.84
tierPrice25.29
tierPrice34.1
tierPrice43.57
tierPrice53.3
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage230V AC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance38.5k?
Coil voltage min184V AC
Coil voltage max276V AC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption0.75VA
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
OEM number651384
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85-2021-35-5230135111 @ $5.84, 5 @ $5.29, 20 @ $4.10, 100 @ $3.57, 500 @ $3.30
TMERM85-Z-230VA11
