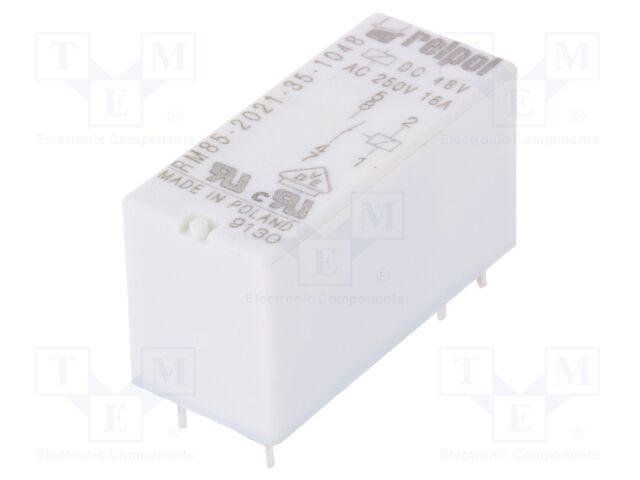

RELPOL RM85-2021-35-1048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; Icontacts max: 16A

RELPOL . RM85-2021-35-1048

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-2021-35-1048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; Icontacts max: 16A
atoms, moq, multiple1
jsonUrlData98e4dbeb79f14f1490e77f826c603c68.
jsonUrlData2daa467f156881ecc8e3e
keywordsRELPOL, RM85-2021-35-1048
MPN, SKURM85-2021-35-1048
qtyInStock0
snippetRELPOL RM85-2021-35-1048 | Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; Icontacts max: 16
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage48V DC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance5700?
Coil voltage min33.6V DC
Coil voltage max122.4V DC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
OEM number600105
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85-2021-35-104811
TMERM85-Z-48V11
