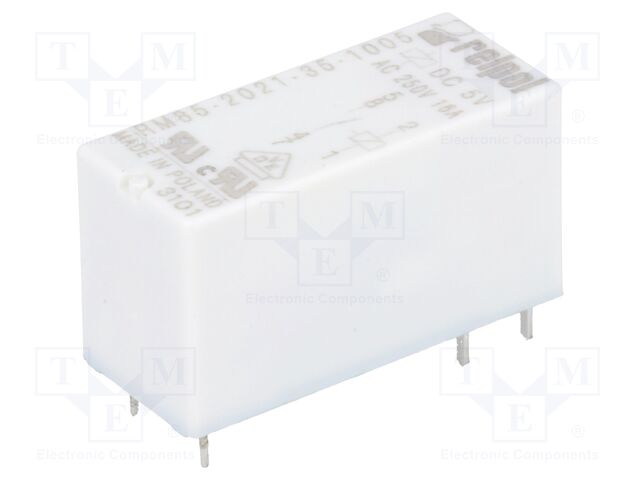

RELPOL RM85-2021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A

RELPOL . RM85-2021-35-1005

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameRELPOL RM85-2021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16A
atoms, moq, multiple, tierMinQty11
jsonUrlData9e826e444012a0a0b8bb8dd27871c0e2.
jsonUrlData2640845c44480ab54f738
keywordsRELPOL, RM85-2021-35-1005, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPN, SKURM85-2021-35-1005
qtyInStock1533
snippetRELPOL RM85-2021-35-1005 | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 16
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.86
tierPrice21.69
tierPrice31.31
tierPrice41.14
tierPrice51.06
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max, Current rating16A
AC contacts rating @R16A / 250V AC
DC contacts rating @R16A / 24V DC
Switched voltagemax. 250V DC,
Relay variantminiature
MountingPCB
Coil resistance60?
Coil voltage min3.5V DC
Coil voltage max12.7V DC
Operate time8ms
Body dimensions29x12.7x15.7mm
Release time3ms
Coil power consumption480mW
IP ratingIP67
Operating temperature-40...85?C
Relay seriesRM85
Contact resistance100m?
Contact materialAgNi
Terminal pitch5mm
Related itemsGD50,
OEM number600100
Body colourwhite

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMERM85-2021-35-10051153311 @ $1.86, 5 @ $1.69, 20 @ $1.31, 100 @ $1.14, 500 @ $1.06
TMERM85-Z-5V11
