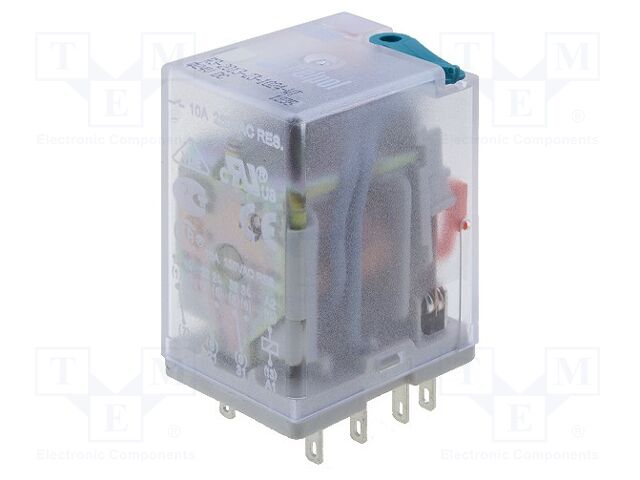

RELPOL R3-2013-23-1024-WT | Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 20A

RELPOL . R3-2013-23-1024-WT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRELPOL
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Industrial Electromagnetic Relays
Extra Product NameRELPOL R3-2013-23-1024-WT | Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 20A
atoms, moq, multiple1
jsonUrlData22deedc874d3d7810e106e4d784f3efc.
jsonUrlData2f235f981eb5e2be2b46f
keywordsRELPOL, R3-2013-23-1024-WT, R32013231024WT
MPNR3-2013-23-1024-WT
qtyInStock0
SKUR32013231024WT
snippetRELPOL R3-2013-23-1024-WT | Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 20
Type of relayelectromagnetic
Contacts configuration3PDT
Rated coil voltage24V DC
Contact current max20A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 24V DC
Switched voltagemax. 250V DC,
Relay variantindustrial
Mountingsocket
Coil voltage min19.2V DC
Coil voltage max26.4V DC
Relay seriesR3
Operating temperature-40...55?C
Body dimensions27.5x21.2x35.6mm
Coil resistance640?
Mechanical durability20000000 cycles
Contact resistance100m?
Coil power consumption0.9W
Leadsconnectors 2,2x0,5mm
IP ratingIP40
Related itemsGZM3,
