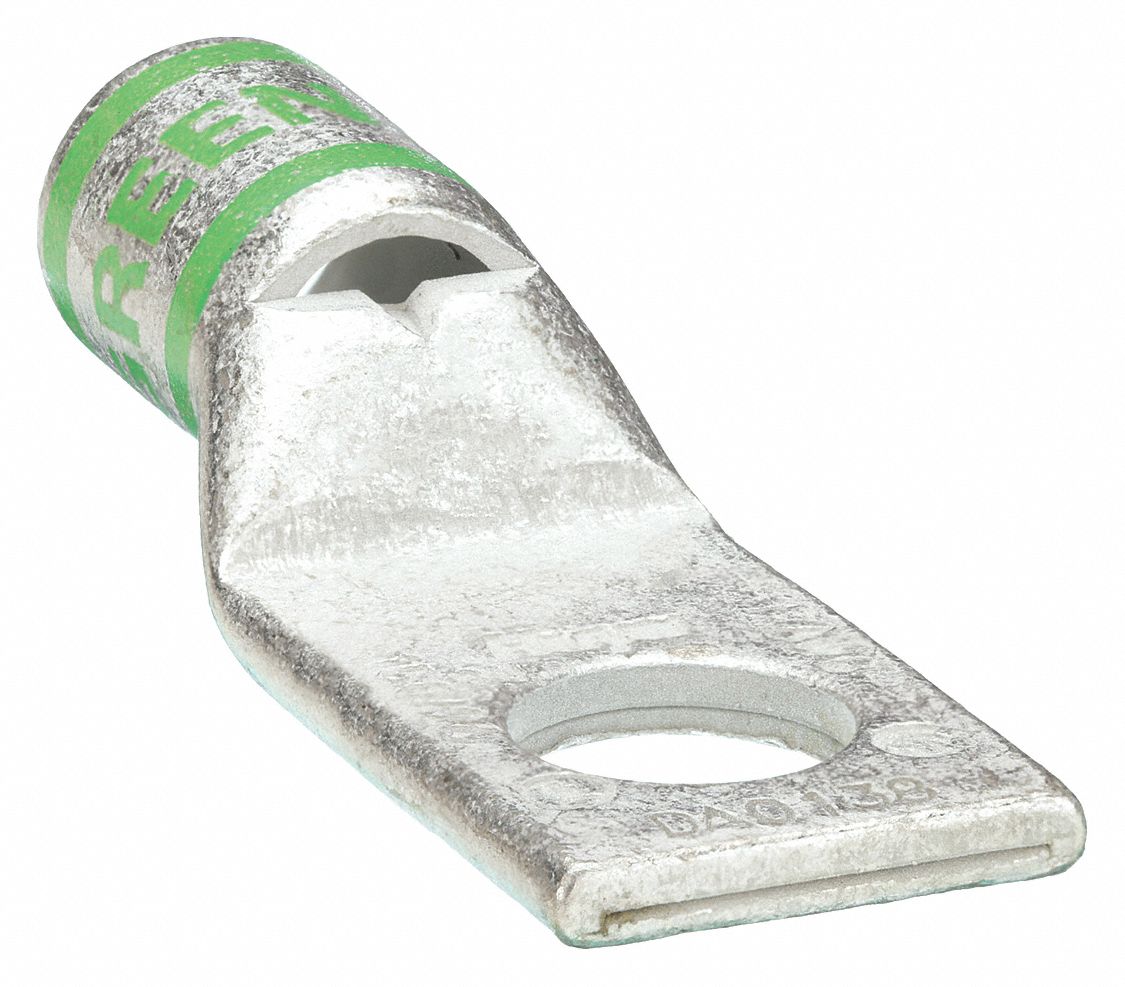

LUG,1 AWG,37 DIE,GREEN

APPROVED VENDOR . 24C344

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAPPROVED VENDOR
DimensionUnitinch
Extra Product NameLUG,1 AWG,37 DIE,GREEN
UNSPSC39121405
Weight0.01
WeightUnitlbs
diameter, height0.47
height_AttribBarrel Outside Diameter
length1.5
length_AttribOverall Length
moq, multiple, Number of Holes1
MPN24C344
originalCurrency{'currency': 'CAD'}
qtyInStock0
SKUGGE24C344
width0.68
width_AttribOverall Width
ItemOne-Hole Lug Compression Connector
Colour CodeGreen
Tongue AngleStraight
For Conductor Material, MaterialCopper
For Stranded Copper Wire Size - Minimum, For Stranded Copper Wire Size - Maximum, For Wire Size1 AWG
Inspection Hole, RoHS CompliantYes
Maximum Operating Temperature300 Degrees F
Termination StyleCrimp
StandardsUL, CSA
Barrel Outside Diameter0.47 in
Connector TypeStraight Barrel
Current195 A
For Wire TypeStranded
Hole Size0.27 in
Overall Width, Tongue Width0.68 in
Strip Length11/16 in
Tongue Length0.65 in
Tongue Thickness0.11 in
Barrel SizeShort
Die Code37
For Stud Size, Stud Size1/4 in
Maximum Voltage600V AC
Seam StyleSeamless
Barrel Inside Diameter0.36 in
Barrel StyleChamfered
Contact FinishTin
Hole Center to End0.25 in
Overall Length1.5 in
Special FeaturesCorrosion Resistant, High-Conductivity Construction
Tongue StyleStandard

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caGGE24C34411
