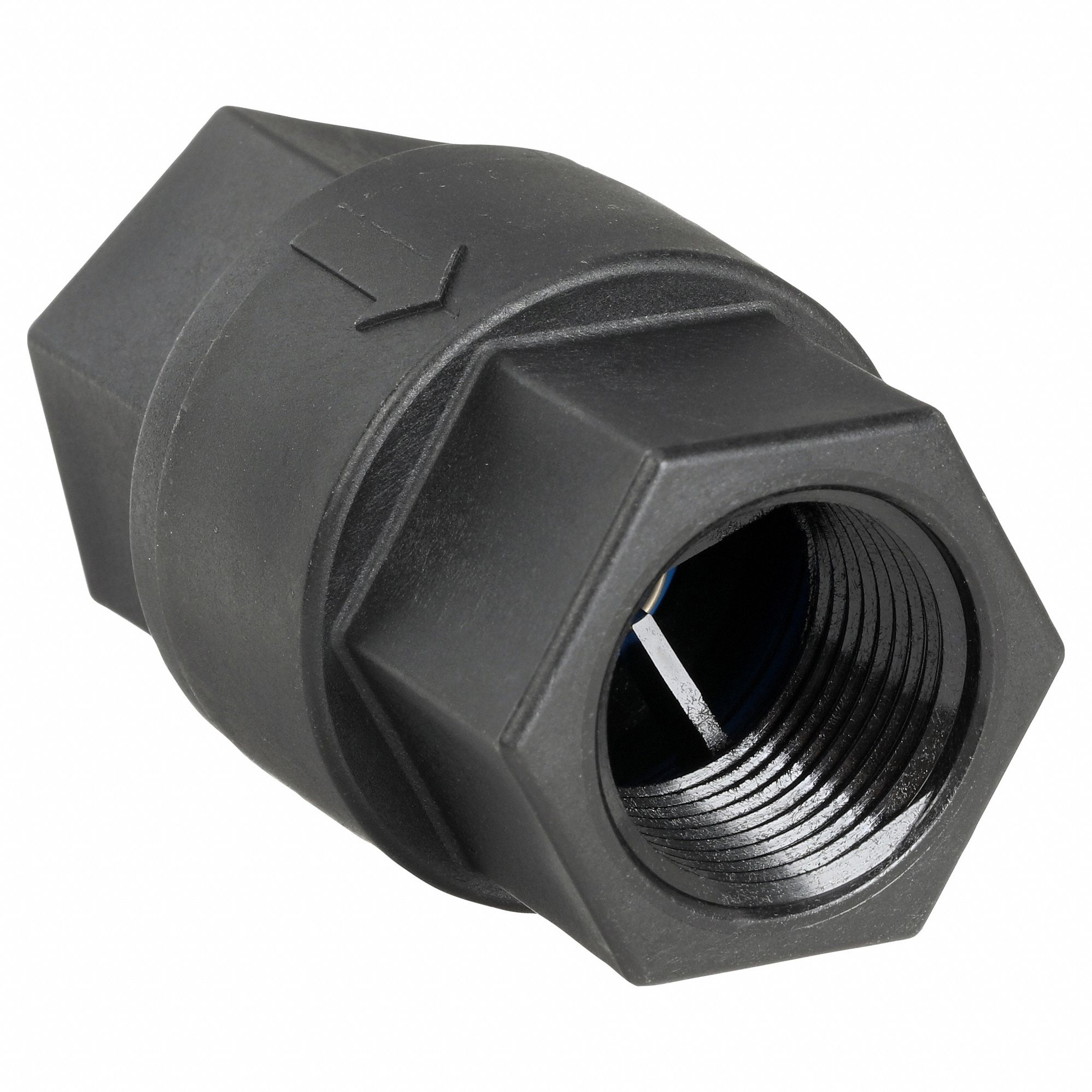

BALL CONE SPRING CHECK VALVE,3/4 IN.

APPROVED VENDOR . FP CHK 687-12F12F-B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAPPROVED VENDOR
DimensionUnitinch
Extra Product NameBALL CONE SPRING CHECK VALVE,3/4 IN.
UNSPSC40141622
Weight0.11
WeightUnitlbs
height, width1.375
height_AttribOverall Height
length2.5
length_AttribLength
moq, multiple1
MPNFP CHK 687-12F12F-B
originalCurrency{'currency': 'CAD'}
qtyInStock0
SKUWWG4DJD1
width_AttribWidth
Item - Check ValvesCheck Valve
Mechanism and Body DesignInline Ball Cone
Pipe or Tube Size3/4 in
Cracking Pressure0.33 psi
Seal MaterialBuna-N
Min Temp - Valves-20 Degrees F
Max Steam Pressure - ValvesNot Rated
Spring MaterialStainless Steel
Application - ValvesGeneral Purpose
Width, Overall Height1 3/8 in
Hex Size15/16 in
Flow DesignSingle
Body Material - Valves, Seat MaterialGlass Filled Polypropylene
Connection TypeFNPT x FNPT
Mounting OrientationHorizontal, Vertical
Max Temp - Valves140 Degrees F
Max Water Pressure - Valves125 psi
Full Flow - ValvesYes
Length2 1/2 in

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWWG4DJD111
