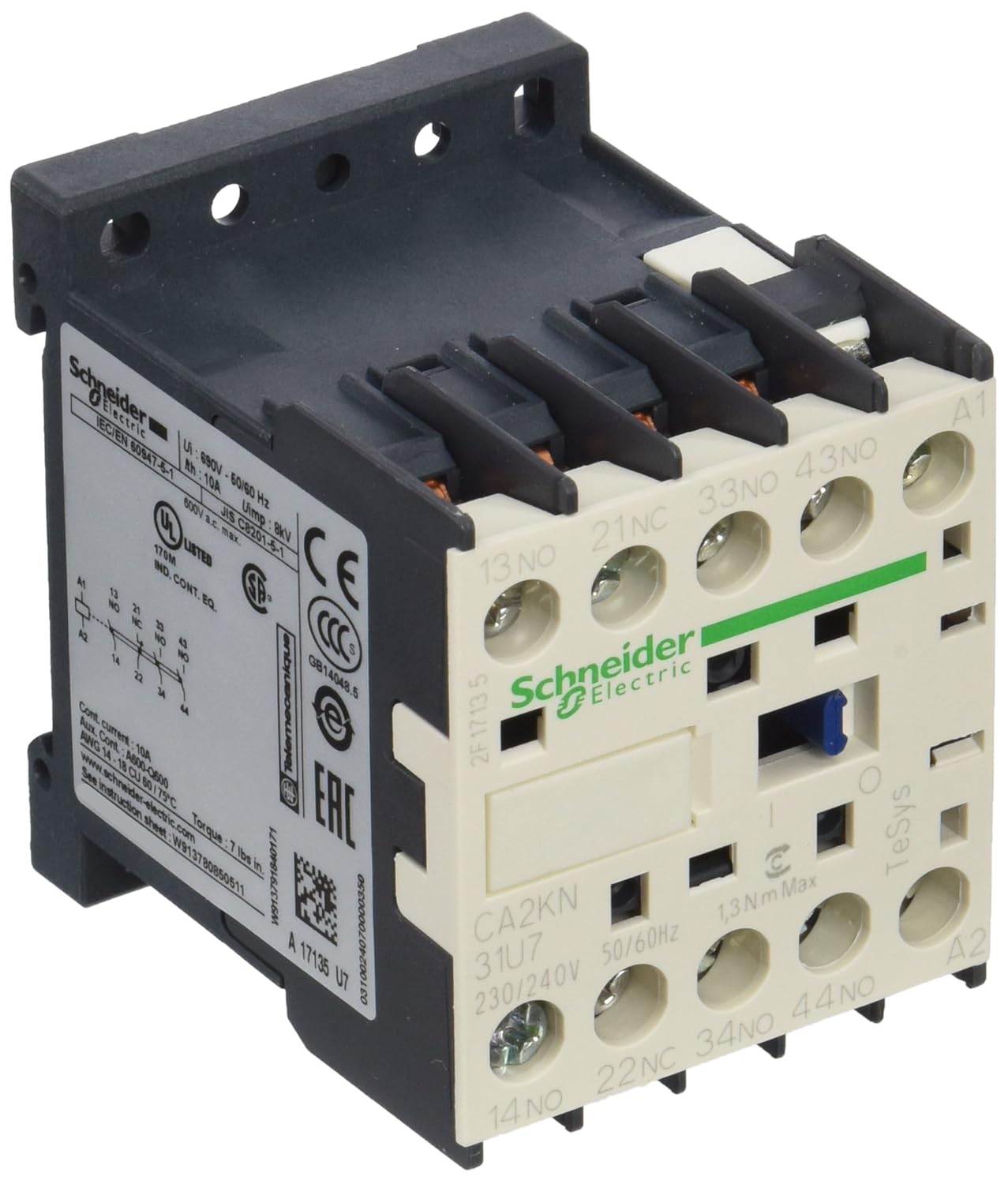

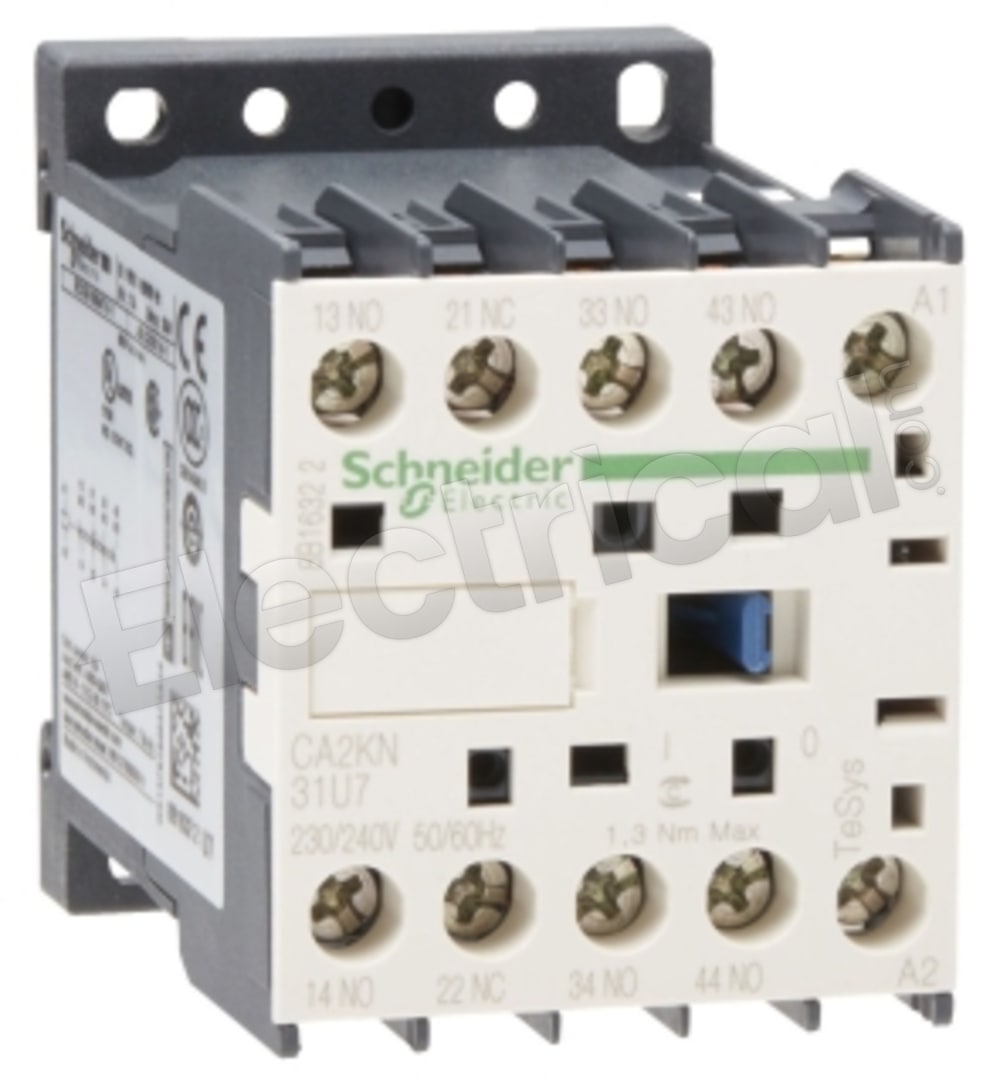

Schneider Electric - CA2KN31U7 - Control Relay 3NO+1NC 240 VAC,TeSys K Series - Allied Electronics & Automation, part of RS Group

IEC Control Relay, Coil Volts 240V AC, AC Contact Rating - Relay 10A @ 120/240/480/600V, DC Contact Rating - Relay 2.00A @ 125/250/600V, Number of Pins - Relay 10, Contact Form - Relay (1) SPST-NC, (3) SPST-NO, Mounting - Relay DIN Rail, Surface, Power Consumption - Relay 4.5 VA, Body Height - Relay 2.28 in, Body Width - Relay 1.77 in, Body Depth - Relay 2.24 in, Overall Height - Relay 2.28 in

Mounting on 35 mm DIN3 track or 4 screw direct mounting Screws in open ?ready-to-tighten? position Schneider Electric / Square D TeSysK 4-Pole Control relay has coil rating of 230 - 240 VAC at 50/60 Hz and current rating of 10 Amps for enhanced performance. It has minimum switching voltage of 17 Volts, minimum switching current of 5 Milli-Amps and inrush power rating of 30 VA. Relay provides plate/rail mounting with screw clamp terminal connection for easy and convenient installation. It comes with 3 NO - 1 NC contacts to offer easy and convenient connectivity. It measures 1.77 Inch x 2.24 Inch x 2.28 Inch. Control relay has an operating ambient air temperature of -25 to 50 degree Celsius and storage ambient air temperature of -50 to 80 degree Celsius. IP2X rated design offers maximum degree of protection. It accommodates conductor of size 12 to 18 AWG. Control relay is UL listed, CSA certified and meets UL 94 V1 flame-rating standards. Schneider Electric, CONTROL RELAY 600VAC 10AMP IEC +OPTIONS, -25...50 ¦C, 10 A at Product Specification Amperage Rating 10 A AT
