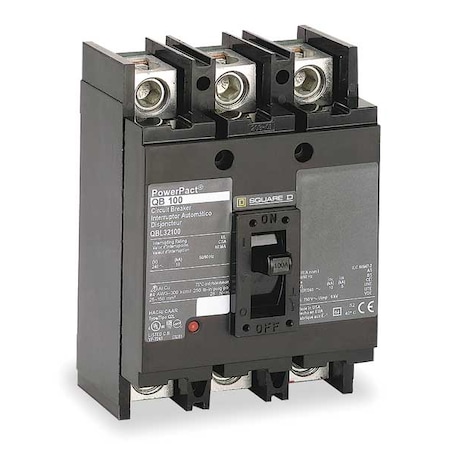

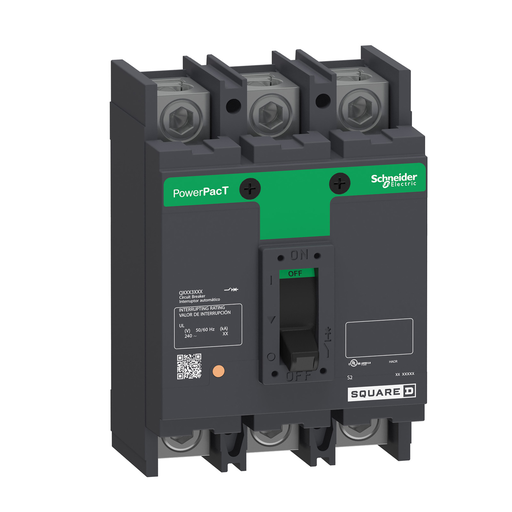

Square D - QDL32080 - Molded Case Circuit Breaker, 3-Pole, 240V 80A, QDL Series - RS

<p>Circuit Breaker, Amps 80, Number of Poles 3, Circuit Breaker Type Standard, AC Voltage Rating 240VAC, DC Voltage Rating Not Rated, For Use With -, Series QD, Trip Type Thermal Magnetic, Terminal Connection Lug, Max. AIR Rating 25 kA, Phase Connection ABC, Mounting Free Standing, Height 6.47 In., Width 4.50 In., Depth 3.93 In., Min. Wire Size 4 AWG, Max. Wire Size 300 kcmil, Instantaneous Trip Fixed, High Amp Trip Setting 1800A, Low Amp Trip Setting 1000A, Frame Size 250A/QD</p><p><b>Specifications: </b><ul><li>Item: Circuit Breaker</li><li>Height: 6.47"</li><li>Standards: UL Listed, CSA Certified, CE Marked, IEC</li><li>Terminal Connection: Lug</li><li>High Amp Trip Setting: 1800A</li><li>Instantaneous Trip: Fixed</li><li>Amps: 80</li><li>DC Voltage Rating: Not Rated</li><li>Depth: 3.93"</li><li>Max. AIR Rating: 25 kA</li><li>Mounting: Free Standing</li><li>Phase: 3</li><li>Low Amp Trip Setting: 1000A</li><li>Frame Size: 250A/QD</li><li>Max. Wire Size: 300 kcmil</li><li>Circuit Breaker Type: Standard</li><li>Number of Poles: 3</li><li>For Use With: -</li><li>Series: QD</li><li>Phase Connection: ABC</li><li>AC Voltage Rating: 240VAC</li><li>Width: 4.50"</li><li>Min. Wire Size: 4 AWG</li><li>Trip Type: Thermal Magnetic</li></ul></p>

QDL32080 - Square D / Schneider Electric - Type Qdl, 80 Amp, 3 Pole, 240 Volt Molded Case Circuit Breaker By Square D / Schneider Electric
