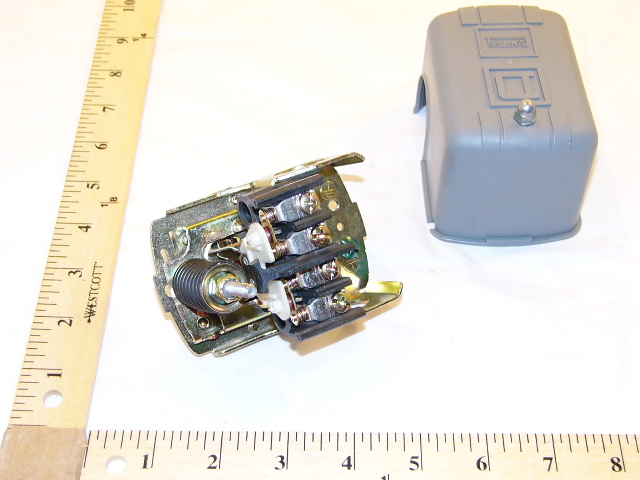

Square D - 9013FHG49J59 - Pressure Switch 575VAC 1HP F +Options - RS

<ul></li><li>Pressure sensor type: Electromechanical pressure switch </li><li>Controlled fluid: Air (-22...257 °F) </li><li>Adjustable range on rising pressure: 100...200 psi </li><li>Approximate adjustable differential: 40 psi </li><li>Destruction pressure: 220 psi </li><li>Pressure actuator: Diaphragm </li><li>Pressure switch type of operation: Regulation between 2 thresholds </li><li>Scale type: Fixed differential </li><li>Setting: Internal </li><li>Local display: Without </li><li>Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY </li><li>Cable entry number: 2 0.88 in cable entries with 0.84 in across flats UL 508 </li><li>Electrical connection: Screw-clamp terminals, clamping capacity: 5.261 mm / Screw-clamp terminals, clamping capacity: 10 AWG </li><li>Fluid connection type: 0.25 inch NPT external conforming to UL 508 </li><li>Short circuit protection: 20 A by cartridge fuse, type gG </li><li>Materials in contact with fluid: Nitrile (Buna-N) or equivalent rubber diaphragm / Zinc plated steel or equivalent flange </li><li>Material: Noryl thermoplastic resin or equivalent cover </li><li>Polypropylene cover </li><li>Operating position: Any position </li><li>Motor power kW: 0.75 kW (1 hp) at 575 V AC, 3 phases / 0.75 kW (1 hp) at 460 V AC, 3 phases / 2.2 kW (3 hp) at 230 V AC, 3 phases / 1.5 kW (2 hp) at 115 V AC, 3 phases / 1.1 kW (1.5 hp) at 115 V AC, 1 phase / 1.5 kW (2 hp) at 230 V AC, 1 phase </li><li>Electrical durability: 100000 cycles at 10 cyc/mn </li><li>Mechanical durability: 300000 cycles </li><li>Terminal block type: 4 terminals </li><li>Operating rate: 10 cyc/mn </li><li>[Ui] rated insulation voltage: 575 V conforming to UL 508</li></ul><p><b>Specifications: </b><ul><li>Connection Size:1/4" </li><li> Max Pressure (PSI):200 </li><li> Min Pressure (PSI):100 </li><li> Pressure Differential:40 psi </li><li> Connection Type:Threaded</li></ul></p>
