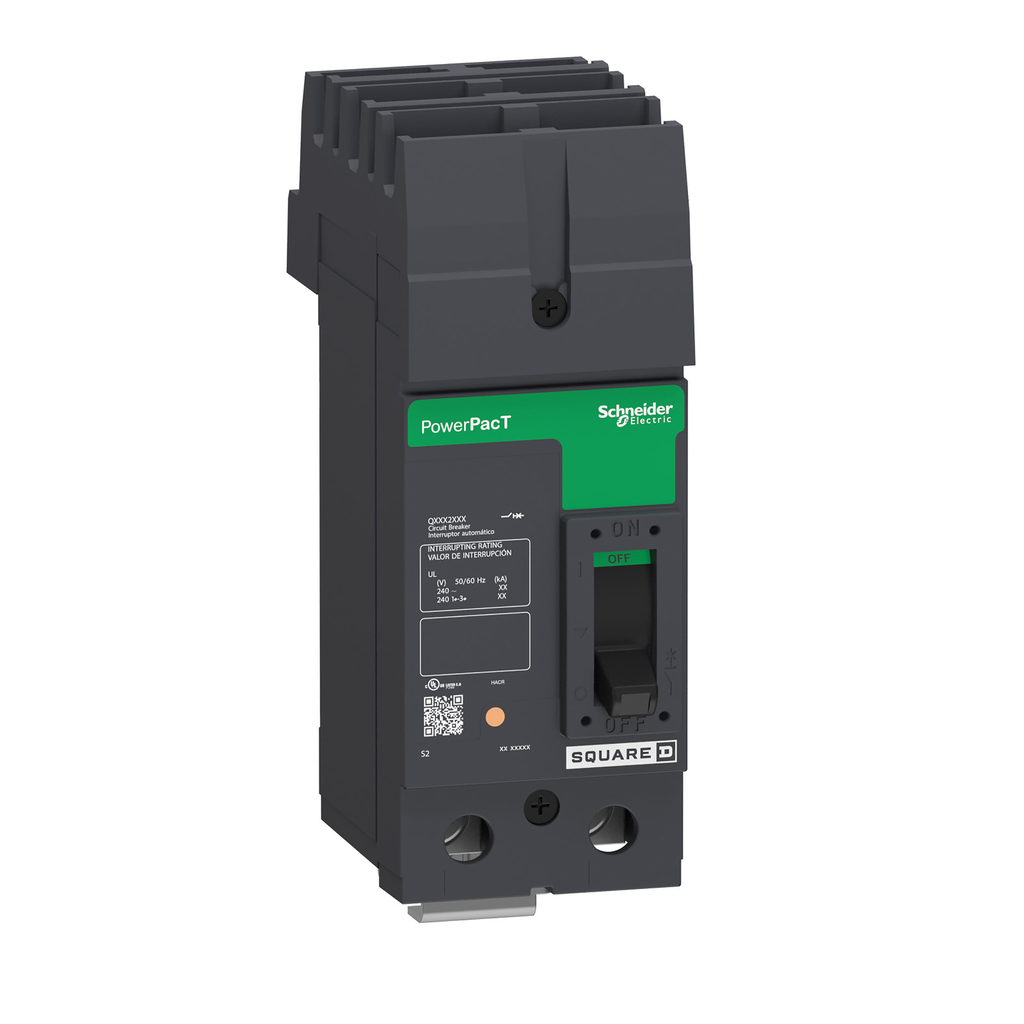

Square D - QDA221101 - Molded Case Circuit Breaker, 2-Pole, 240V 110A, QDA Series - RS

<p>Circuit Breaker, Amps 110, Number of Poles 2, Circuit Breaker Type Standard, AC Voltage Rating 240VAC, DC Voltage Rating Not Rated, For Use With I Line Panelboards, Series QD, Trip Type Thermal Magnetic, Terminal Connection Lug, Max. AIR Rating 25 kA, Phase Connection AB, Mounting Plug In Panelboard, Height 6.47 In., Width 3.00 In., Depth 3.93 In., Min. Wire Size 4 AWG, Max. Wire Size 300 kcmil, Instantaneous Trip Fixed, High Amp Trip Setting 2400A, Low Amp Trip Setting 1200A, Frame Size 250A/QD</p><p><b>Specifications: </b><ul><li>Item: Circuit Breaker</li><li>Height: 6.47"</li><li>Standards: UL Listed, CSA Certified, CE Marked, IEC</li><li>Terminal Connection: Lug</li><li>High Amp Trip Setting: 2400A</li><li>Instantaneous Trip: Fixed</li><li>Amps: 110</li><li>DC Voltage Rating: Not Rated</li><li>Depth: 3.93"</li><li>Max. AIR Rating: 25 kA</li><li>Mounting: Plug In Panelboard</li><li>Phase: 1</li><li>Low Amp Trip Setting: 1200A</li><li>Frame Size: 250A/QD</li><li>Max. Wire Size: 300 kcmil</li><li>Circuit Breaker Type: Standard</li><li>Number of Poles: 2</li><li>For Use With: I Line Panelboards</li><li>Series: QD</li><li>Phase Connection: AB</li><li>AC Voltage Rating: 240VAC</li><li>Width: 3.00"</li><li>Min. Wire Size: 4 AWG</li><li>Trip Type: Thermal Magnetic</li></ul></p>
