Miniature Circuit Breaker, Amps 20, AC Voltage Rating 120V AC, Circuit Breaker Type Combination Arc Fault Circuit Interrupter, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series HOM, Phase 1, Series HOM, Max. AIR Rating 10kA at 120V AC, For Use With Homeline Load Center, Terminal Connection Screw Clamp, Frame Size 100A/HOM, Length 3.13 in, Width 1.0 in, Depth 2.98 in

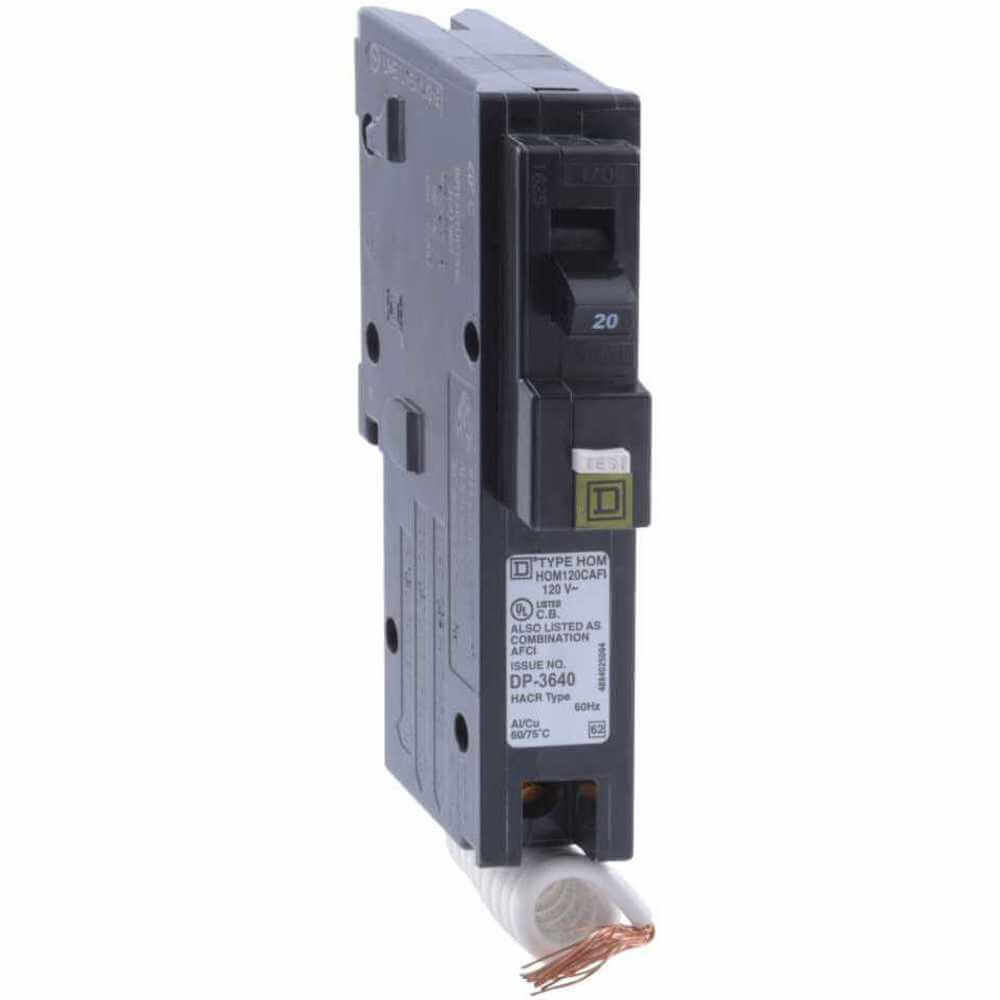

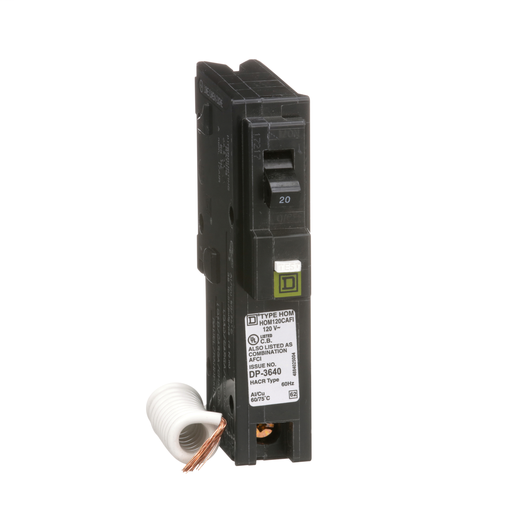

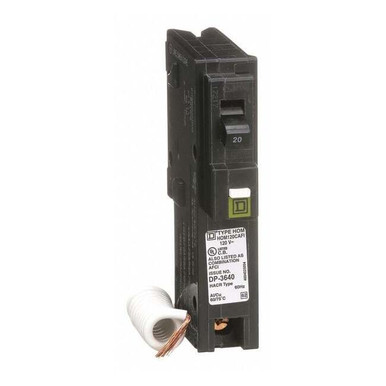

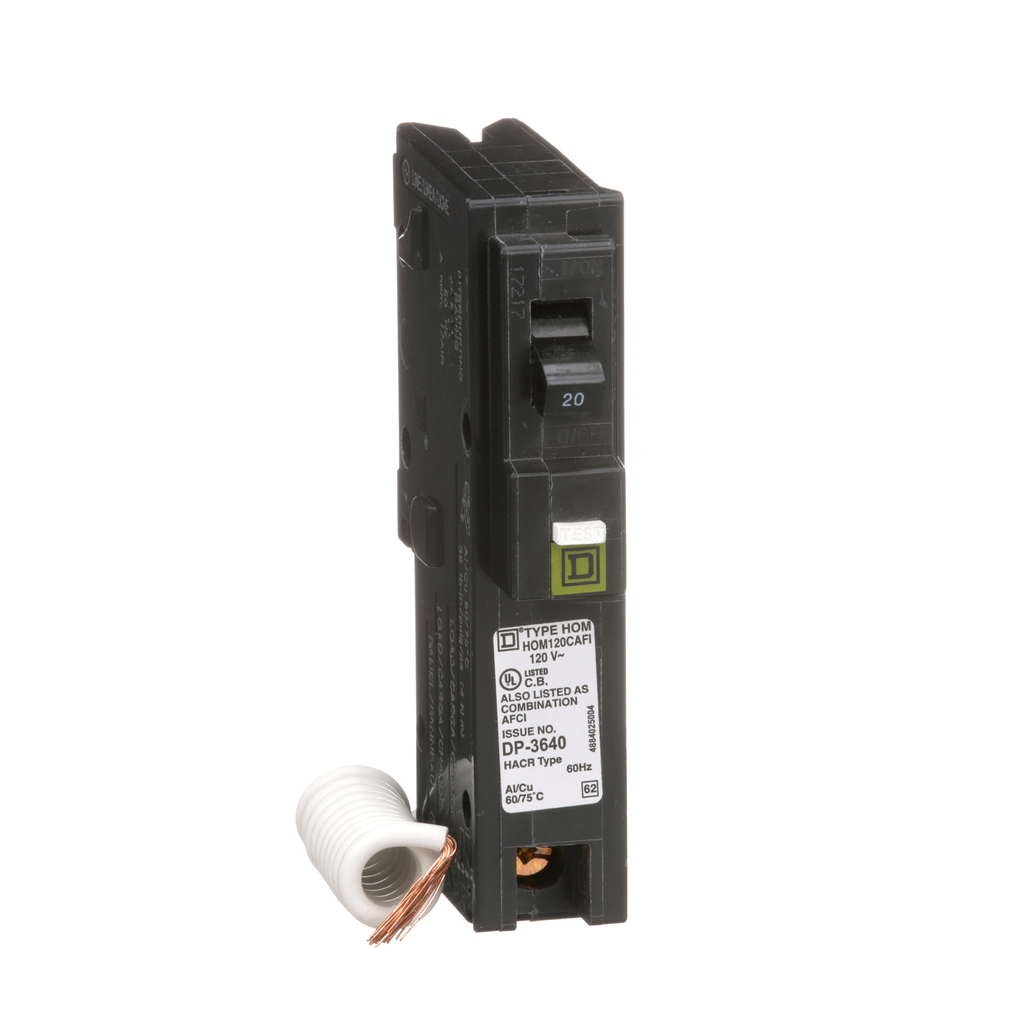

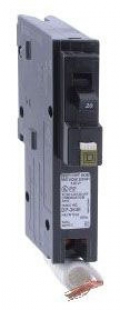

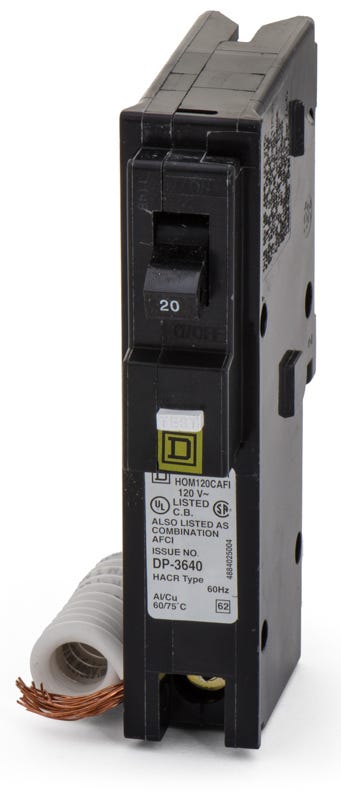

Mini circuit breaker, Homeline, 20A, 1 pole, 120 VAC, 10 kA AIR, combo arc fault, pigtail neutral, plug in mount

Homeline Combination Arc Fault Circuit Interrupters provide overload and short circuit protection, plus arc fault protection.<br /><br /> Item: Plug In Circuit Breaker<br /> Amps: 20<br /> Number of Poles: 1<br /> Circuit Breaker Type: Combination Arc Fault Circuit Interrupter<br /> AC Voltage Rating: 120VAC<br /> DC Voltage Rating: Not Rated<br /> For Use With: Homeline Load Centers<br /> Series: HOM<br /> Terminal Connection: Screw Clamp<br /> Min. Wire Size: 14 AWG<br /> Max. Wire Size: 8 AWG<br /> Length: 4.75"<br /> Width: 1.00"<br /> Depth: 2.98"<br /> Standards: UL Listed, CSA Certified, NEC<br /> Max. AIR Rating: 10 kA

<p><ul><li>The Square D by Schneider Electric Homeline 20 Amp One-Pole Combination Arc-Fault Circuit Interrupting (CAFCI) Circuit Breaker is for use to help protect your wires from arcing faults and is intended for overload and short-circuits protection of your electrical system. Now standard in all Square D brand CAFCI circuit breakers, Time-Saver Diagnostics provide advanced trip indication technology, helping identify the type of fault that has occurred faster. Time-Saver Diagnostics helps take away the guess work and provides diagnostic assistance by identifying the type of fault that last occurred. It saves money by reducing troubleshooting time, simple to use, accurate and reliable. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.<ul><li>Homeline 20 Amp single-pole combination AFCI circuit breaker</li><li>Compatible with homeline load centers and CSED devices</li><li>120/240-Volt AC</li><li>10000 AIR</li><li>UL listed</li><li>Limited lifetime warranty</li></ul></p><p><b>Specifications: </b><ul><li>Product Type: Circuit Breaker</li><li>Poles: 1</li><li>Amperage: 20</li><li>Features: Arc Fault Protection</li></ul></p>
