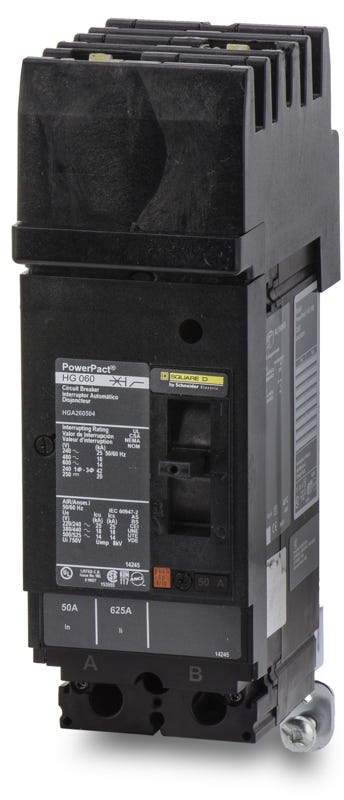

Square D - HGA260504 - Molded Case Circuit Breaker, 2-Pole, 600V 50A, HGA Series - RS

<p>Circuit Breaker, Amps 50, Number of Poles 2, Circuit Breaker Type Standard, AC Voltage Rating 600VAC, DC Voltage Rating 250VDC, For Use With I Line Panelboards, Series HG, Trip Type Thermal Magnetic, Terminal Connection Lug, Max. AIR Rating Not Rated, Phase Connection BC, Mounting Plug In Panelboard, Height 6.40 In., Width 2.70 In., Depth 3.40 In., Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Instantaneous Trip Fixed, High Amp Trip Setting 850A, Low Amp Trip Setting 400A, Frame Size 60A/HG</p><p><b>Specifications: </b><ul><li>Item: Circuit Breaker</li><li>Height: 6.40"</li><li>Standards: UL Listed, IEC, CSA Certified, Federal Specification W-C-375B/GEN, CE Marked, NEMA, NMX, UTE, VDE, BS, CEI, UNE, CCC, HACR, HID, SWD, NOM</li><li>Terminal Connection: Lug</li><li>High Amp Trip Setting: 850A</li><li>Instantaneous Trip: Fixed</li><li>Amps: 50</li><li>DC Voltage Rating: 250VDC</li><li>Depth: 3.40"</li><li>Max. AIR Rating: Not Rated</li><li>Mounting: Plug In Panelboard</li><li>Phase: 1</li><li>Low Amp Trip Setting: 400A</li><li>Frame Size: 60A/HG</li><li>Max. Wire Size: 3/0 AWG</li><li>Circuit Breaker Type: Standard</li><li>Number of Poles: 2</li><li>For Use With: I Line Panelboards</li><li>Series: HG</li><li>Phase Connection: BC</li><li>AC Voltage Rating: 600VAC</li><li>Width: 2.70"</li><li>Min. Wire Size: 14 AWG</li><li>Trip Type: Thermal Magnetic</li></ul></p>
