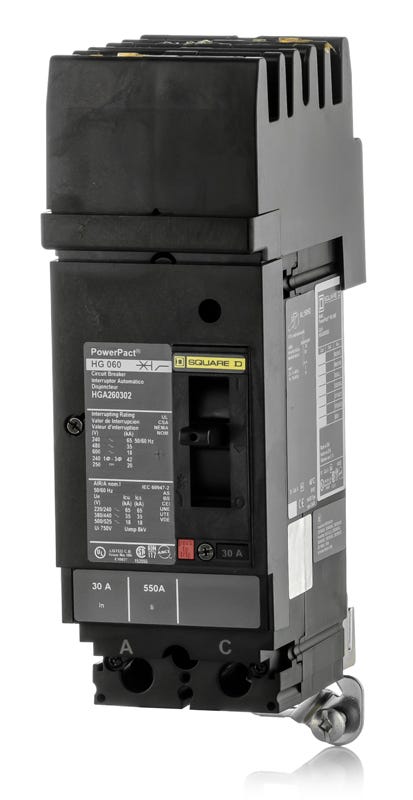

Square D - HGA260302 - Molded Case Circuit Breaker, 2-Pole, 600V 30A, HGA Series - RS

<p>Circuit Breaker, Amps 30, Number of Poles 2, Circuit Breaker Type Standard, AC Voltage Rating 600VAC, DC Voltage Rating 250VDC, For Use With I Line Panelboards, Series HG, Trip Type Thermal Magnetic, Terminal Connection Lug, Max. AIR Rating Not Rated, Phase Connection AC, Mounting Plug In Panelboard, Height 6.40 In., Width 2.70 In., Depth 3.40 In., Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Instantaneous Trip Fixed, High Amp Trip Setting 750A, Low Amp Trip Setting 350A, Frame Size 60A/HG</p><p><b>Specifications: </b><ul><li>Standards: UL Listed, IEC, CSA Certified, Federal Specification W-C-375B/GEN, CE Marked, NEMA, NMX, UTE, VDE, BS, CEI, UNE, CCC, HACR, HID, SWD, NOM</li><li>Amps: 30</li><li>Phase Connection: AC</li><li>Terminal Connection: Lug</li><li>Instantaneous Trip: Fixed</li><li>Mounting: Plug In Panelboard</li><li>Item: Circuit Breaker</li><li>Width: 2.70"</li><li>Circuit Breaker Type: Standard</li><li>Low Amp Trip Setting: 350A</li><li>Min. Wire Size: 14 AWG</li><li>Height: 6.40"</li><li>Number of Poles: 2</li><li>DC Voltage Rating: 250VDC</li><li>High Amp Trip Setting: 750A</li><li>Depth: 3.40"</li><li>AC Voltage Rating: 600VAC</li><li>Frame Size: 60A/HG</li><li>Phase: 1</li><li>For Use With: I Line Panelboards</li><li>Series: HG</li><li>Max. AIR Rating: Not Rated</li><li>Max. Wire Size: 3/0 AWG</li><li>Trip Type: Thermal Magnetic</li></ul></p>
