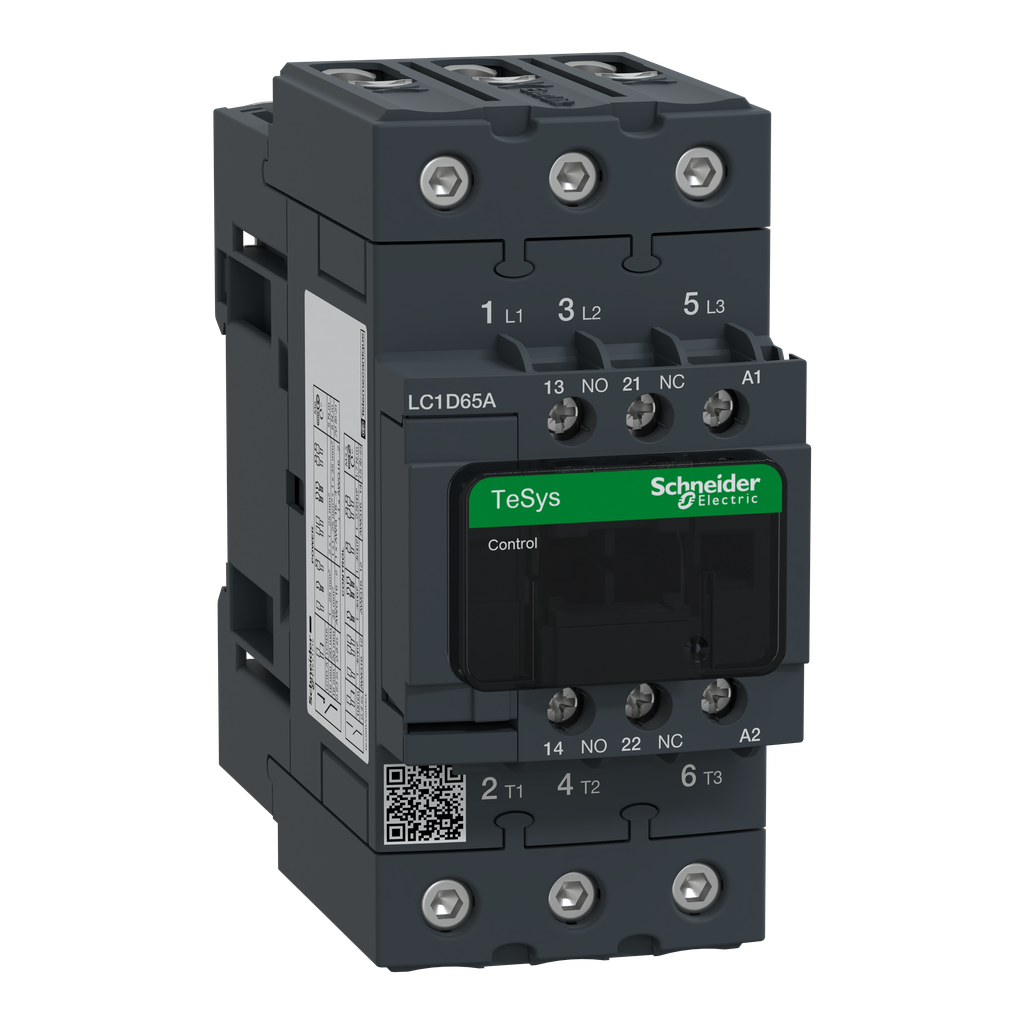

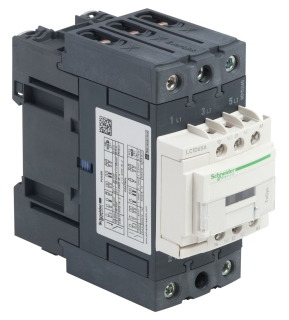

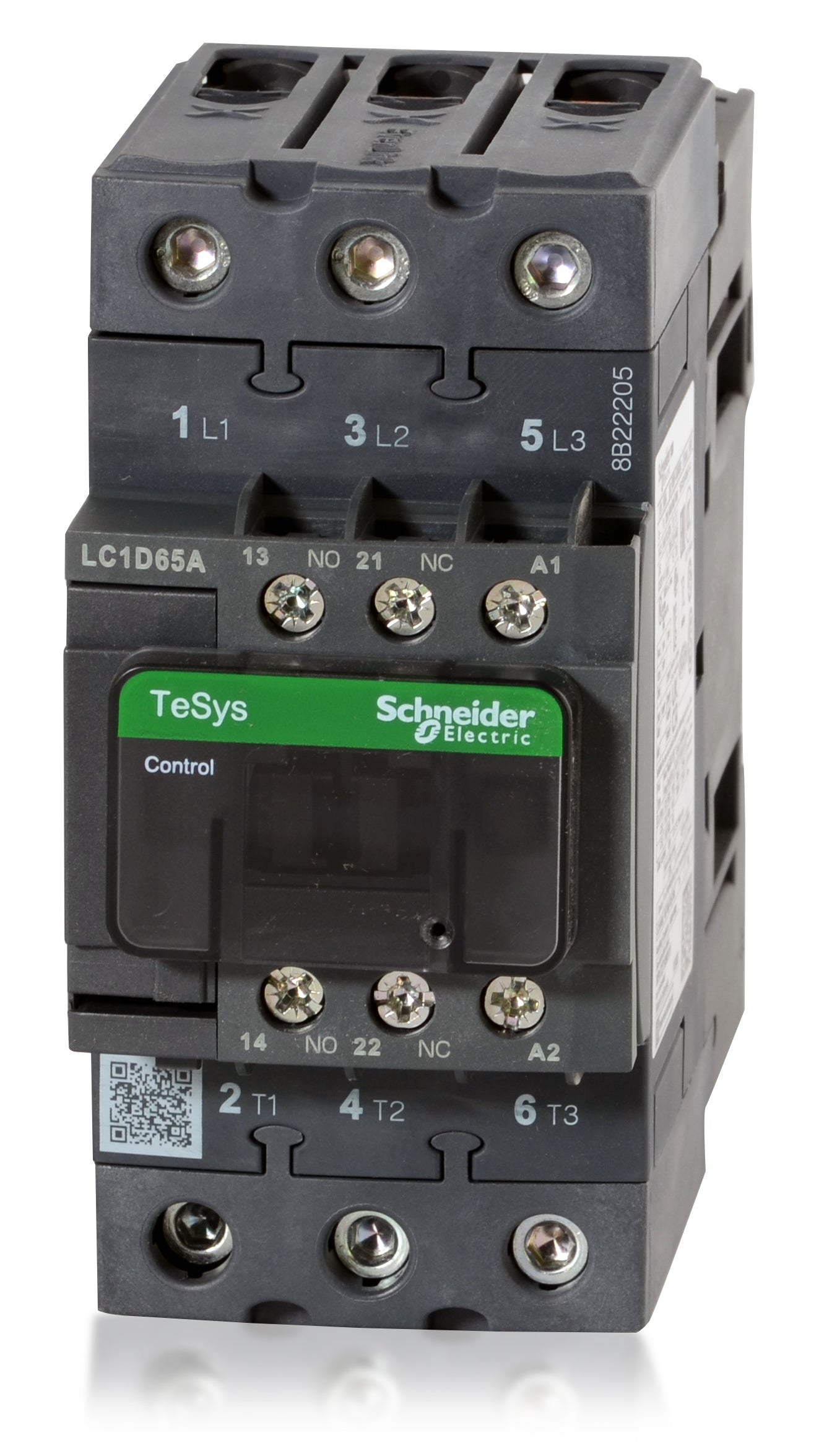

Schneider Electric - LC1D65AU7 - Contactor LC1D, 3P, 65A 240V, 50/60 Hz, TeSys Deca Series - RS

'IEC Magnetic Contactor, Full Load Amps-Inductive 65, Full Load Amps-Resistive 80, Number of Poles 3, Coil Volts 240VAC, 50/60 Hz, Action Nonreversing, Enclosure NEMA Rating No Enclosure, Auxiliary Contact Form 1NC/1NO, HP @ 1 Phase - 120V 5, HP @ 1 Phase - 230V 10, HP @ 3 Phase - 208V 20, HP @ 3 Phase - 240V 20, HP @ 3 Phase - 480V 40, HP @ 3 Phase - 575V 50, Height 2.17 In., Width 2.17 In., Depth 4.61 In., Standards UL, CSA, CE'

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 65A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Contactor is also rated for 5HP at 115VAC and 10HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 240 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.90 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. This listing is for Each. Brand Schneider Electric Sub Brand TeSys D;TeSys Deca Warranty Description Contractual Warranty: 18 months Country of Origin Indonesia Made in USA No Application Motor control;resistive load Coil Power Rating 13-13 VA 60 HZ 0.3 20 A Degrees C)-15-15 VA 50 HZ 0.3 20 A Degrees C) Coil Voltage 240 V AC 50/60 Hz Connection Control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end;control circuit screw clamp terminals 1 1-4 mm²flexible without cable end;control circuit screw clamp

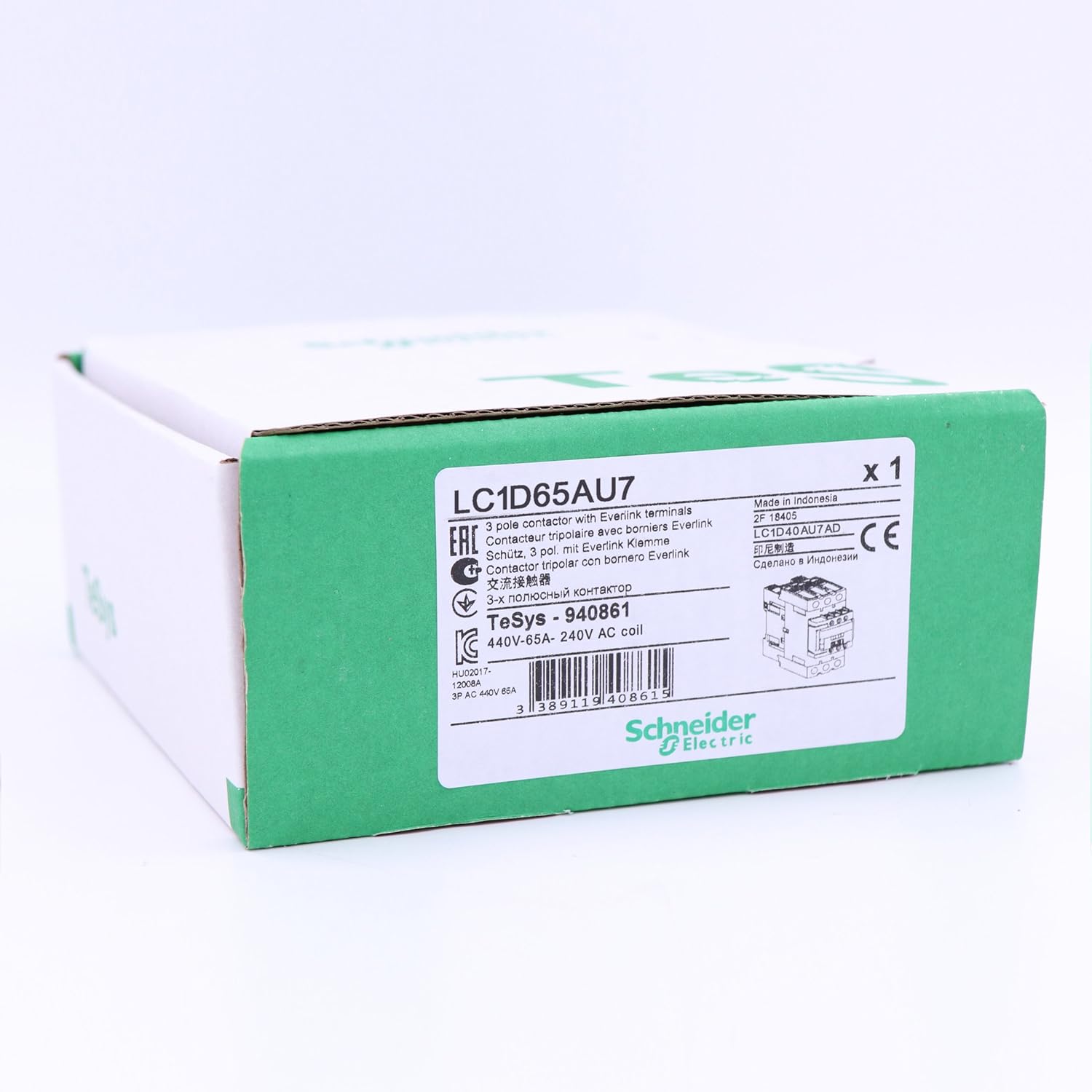

LC1D65AU7 TeSys D contactor - 3P(3 NO) - AC-3 - 240V 65A - 240V AC 50/60 Hz coil

<br /><br /> Item: IEC Magnetic Contactor<br /> Full Load Amps-Inductive: 65<br /> Full Load Amps-Resistive: 80<br /> Number of Poles: 3<br /> Coil Volts: 240VAC<br /> Reversing: No<br /> HP @ 1 Phase - 120V: 5<br /> HP @ 1 Phase - 240V: 10<br /> HP @ 3 Phase - 208V: 20<br /> HP @ 3 Phase - 240V: 20<br /> HP @ 3 Phase - 480V: 40<br /> HP @ 3 Phase - 575V: 50<br /> Aux. Contact Configuration: 1NO/1NC<br /> Enclosure NEMA Rating: No Enclosure<br /> Hz: 50/60<br /> Height: 2.17"<br /> Width: 2.17"<br /> Depth: 4.61"<br /> Standards: UL, CSA, CE<br />

3P ELK CONTACTOR 65A 240V50/60HZ
