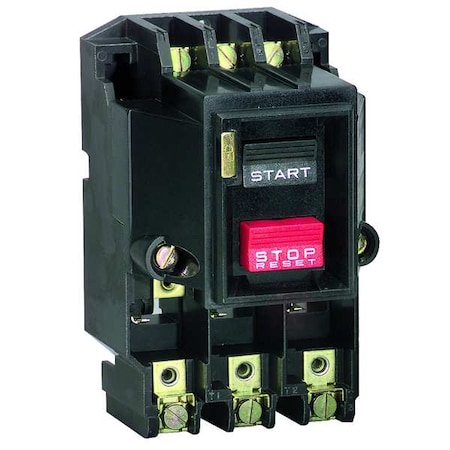

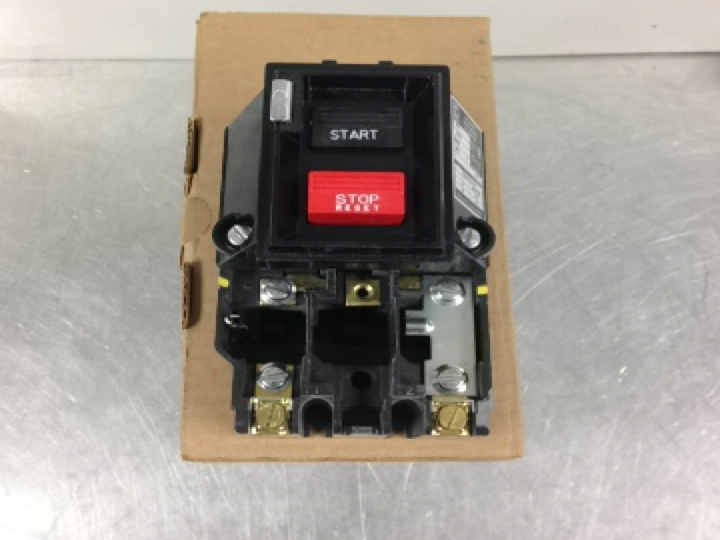

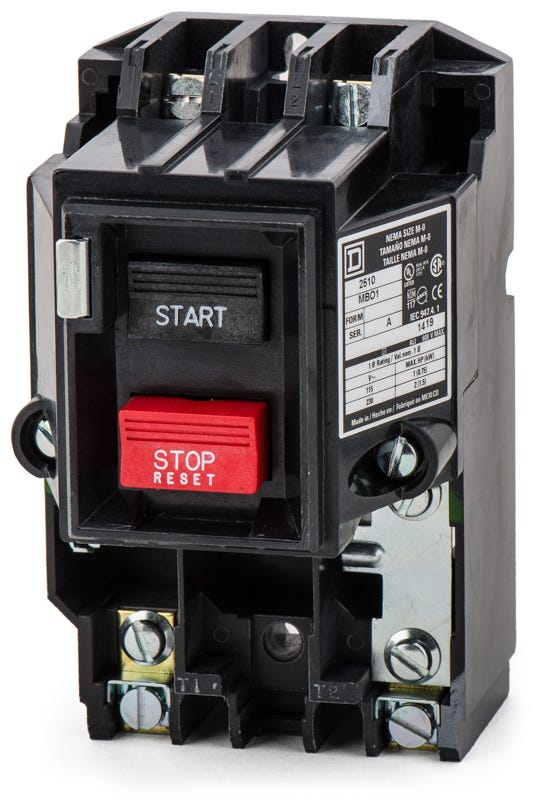

Manual Motor Starter, NEMA Size M-0, Operator Push Button, Enclosure NEMA Rating No Enclosure, Number of Required Thermals 1, Amps AC 18 A, Number of Poles 2, Description/Special Features Screw Clamp Terminals, Single Unit, Max. Voltage 600V AC/230V DC, Height 5.72 in, Width 3.5 in, Depth 4.06 in, HP @ 1 Phase - 120V 1 hp, HP @ 1 Phase - 230V 2 hp, Standards CSA, UL, Pilot Light Yes

NEMA Manual Motor Starters 600VAC max.; 250VDC max. Required thermal units sold separately.Push-button motor starters provide On/Off operation and overload protection for small 1-phase, 3-phase, or DC motors. For use on small machine tools, pumps, fans, and conveyors.UL Listed.Note: NEMA Type 12 enclosures can be converted for 3R outdoor use by drilling two 1/8" holes in the bottom.<br /><br /> Item: Manual Motor Starter<br /> NEMA Size: M-0<br /> Operator: Push Button<br /> Enclosure NEMA Rating: No Enclosure<br /> Number of Required Thermals: 1<br /> Amps AC: 18<br /> Number of Poles: 2<br /> Description/Special Features: Single Unit, Screw Clamp Terminals<br /> Max. Voltage: 600VAC/230VDC<br /> Height: 5.72"<br /> Width: 3.50"<br /> Depth: 4.06"<br /> HP @ 1 Phase - 120V: 1<br /> HP @ 1 Phase - 230V: 2<br /> Standards: UL, CSA<br /> Pilot Light: Yes<br /> Thermal Unit Code: J1<br />
