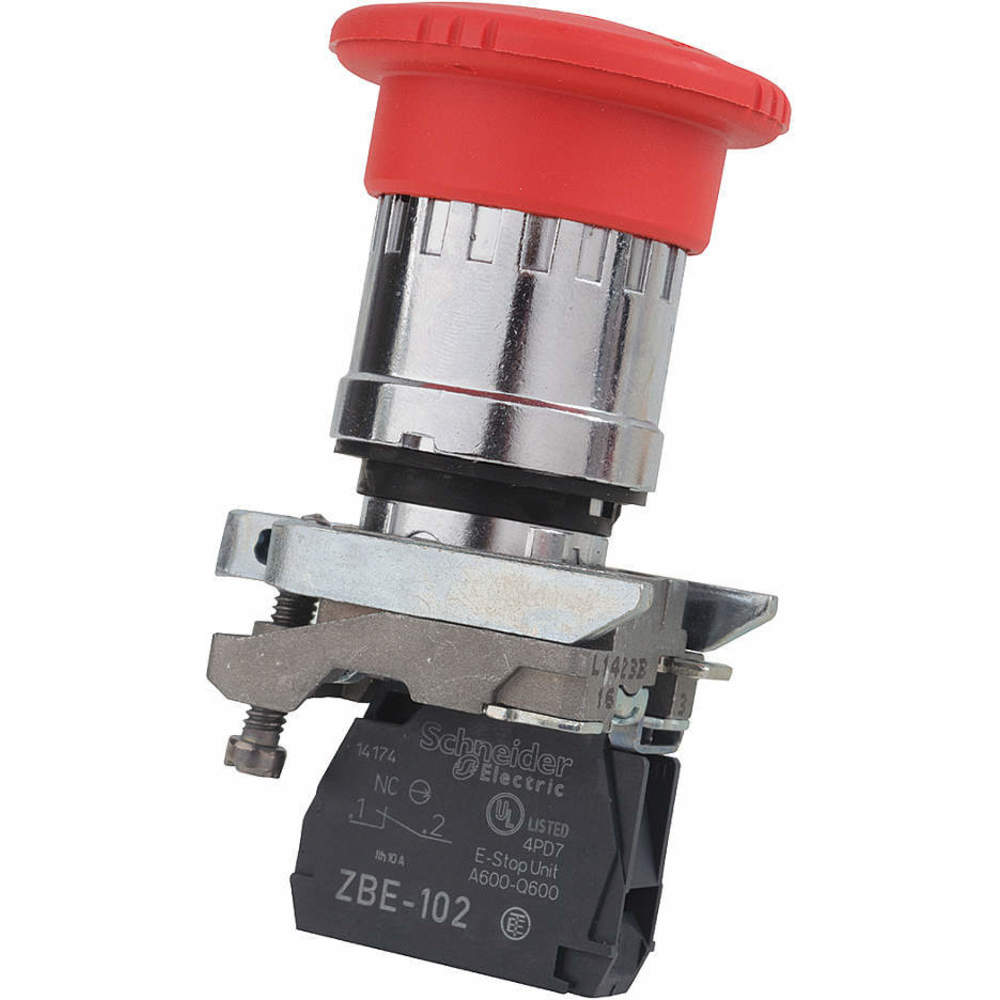

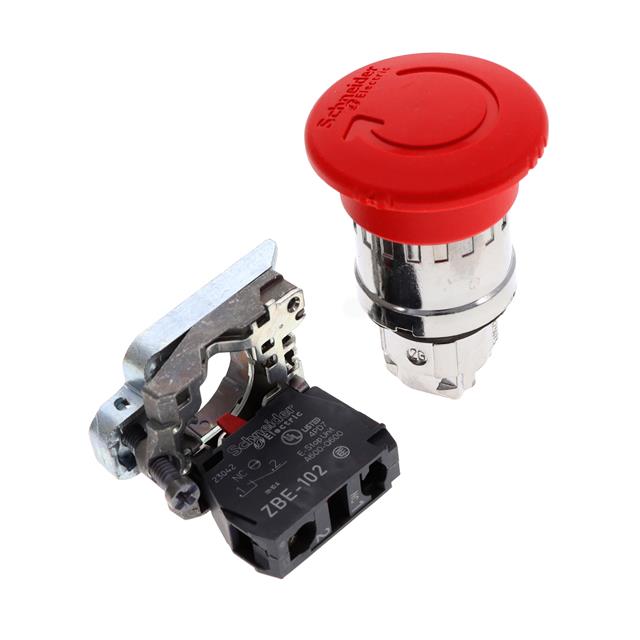

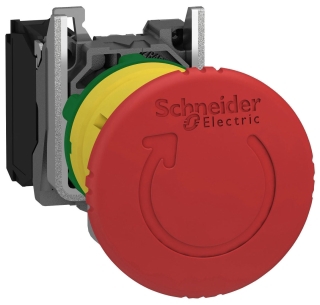

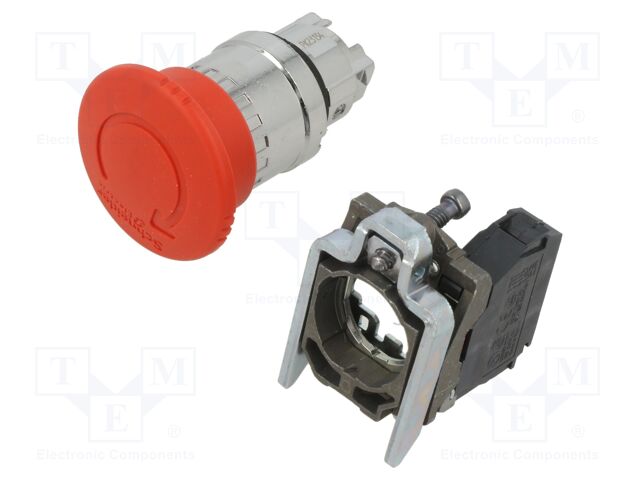

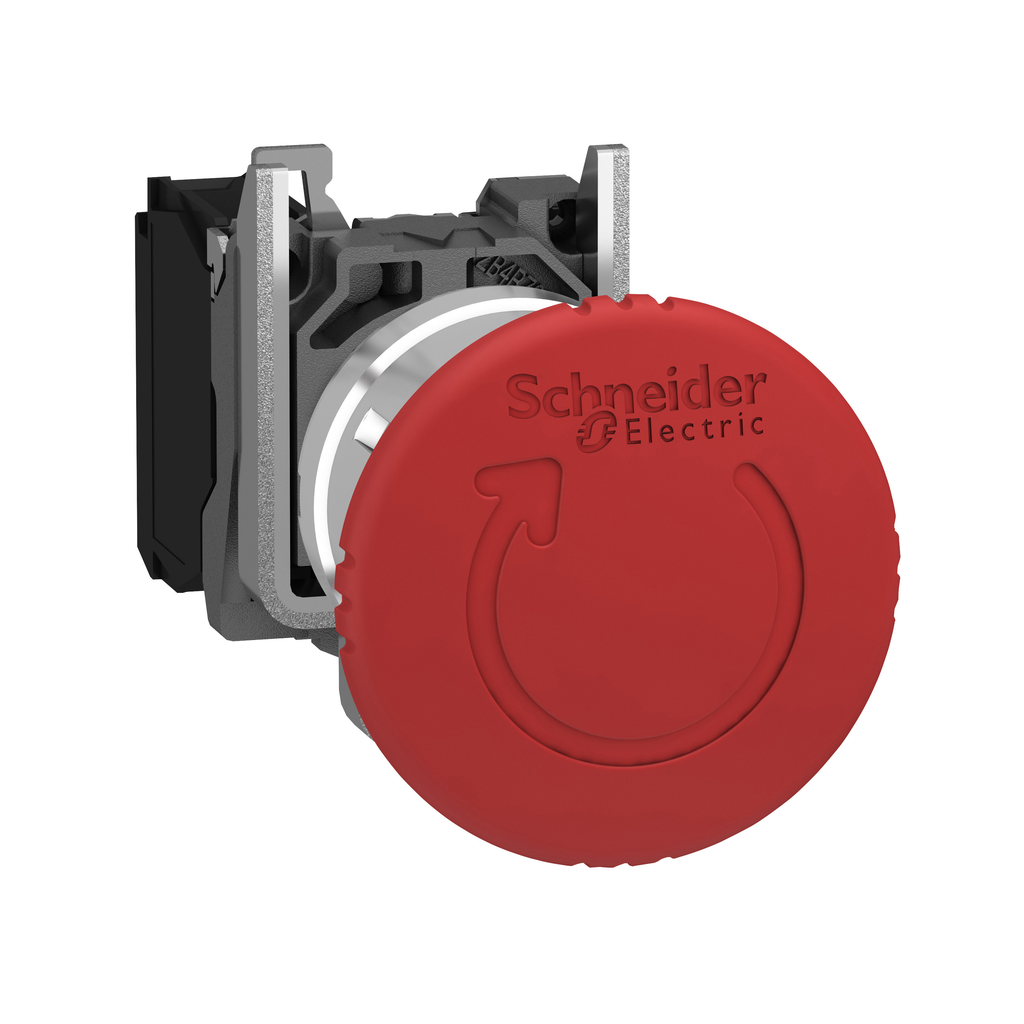

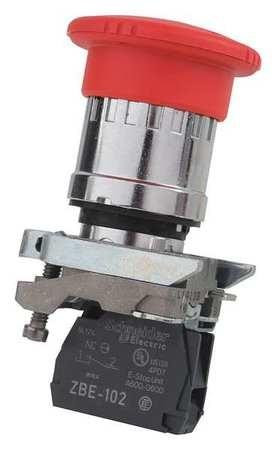

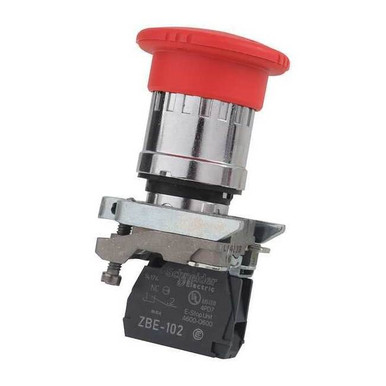

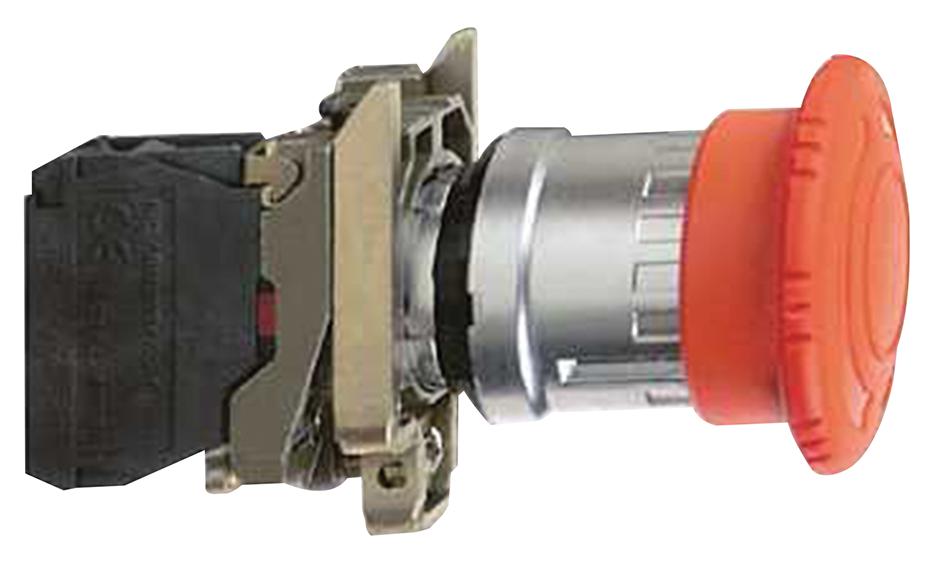

Schneider Electric - XB4BS8442 - E-Stop, Red 40mm, Switching, 22mm Latching Turn, 1NC, Harmony XB4 Series - Allied Electronics & Automation, part of RS Group

' Emergency Stop Push Button, 22mm, Maintained Push / Turn To Release Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600VAC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 4, 4X, 12, 13, IP Rating 66, Legend No Legend '

<br /><br /> Item: Emergency Stop Push Button<br /> Size: 22mm<br /> Action: Maintained Push / Turn To Release<br /> Type of Operator: 40mm Mushroom Head<br /> Head Material: Plastic<br /> Contact Form: 1NC<br /> Bezel: Chrome Plated Zinc Die Cast<br /> Color: Red<br /> Contact Rating: 10A @ 600VAC<br /> NEMA Contact Rating Designation: A600/Q600<br /> Number of Operators: 1<br /> NEMA Rating: 4, 4X, 12, 13<br /> IP Rating: 66<br /> Legend: No Legend<br /> Standards: EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60364-5-53, EN/ISO 13850, JIS C 4520, UL508, CSA C22.2 N.14<br /> Terminal Connection: Screw Clamp<br /> Features: Panel Mounting<br /> Material: Metal<br /> Basic Material: Metal<br />

<p>The XB4 series of emergency stop pushbuttons provides you with an extra safeguard in your working environment. Features include turn to release functionality and an easy reset once activated, chrome plated metal panel with a prominent 40mm diameter red round push button and 2 NC contacts. Silver alloy contacts are highly conductive and resistant to corrosion providing a reliable connection. This E-stop also has short circuit protection using a 10 A fuse and is NEMA 13 and NEMA 4X rated, providing additional protection against environmental disturbances such as dust, oil, or water spray.</p><p>This emergency stop buttons is designed to cut power to an electrical circuit when pushed, rendering machinery that the e-stop facilitates shut-down and safe. The twist-to-release actuator stays latched until the fault has been corrected and the switch is manually reset. This E-stop switch has a standard cut-out diameter of 22mm, and an IP69K rating so that it's sealed against dust and handles high-pressure water jets. Typical applications include general workshops, machine, chemical and marine installations, food and beverage, service sectors such as kitchens, car washes and more.</p>
