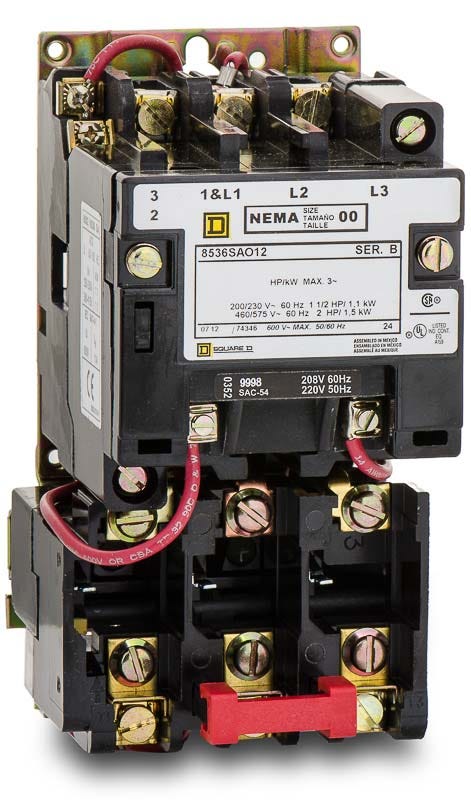

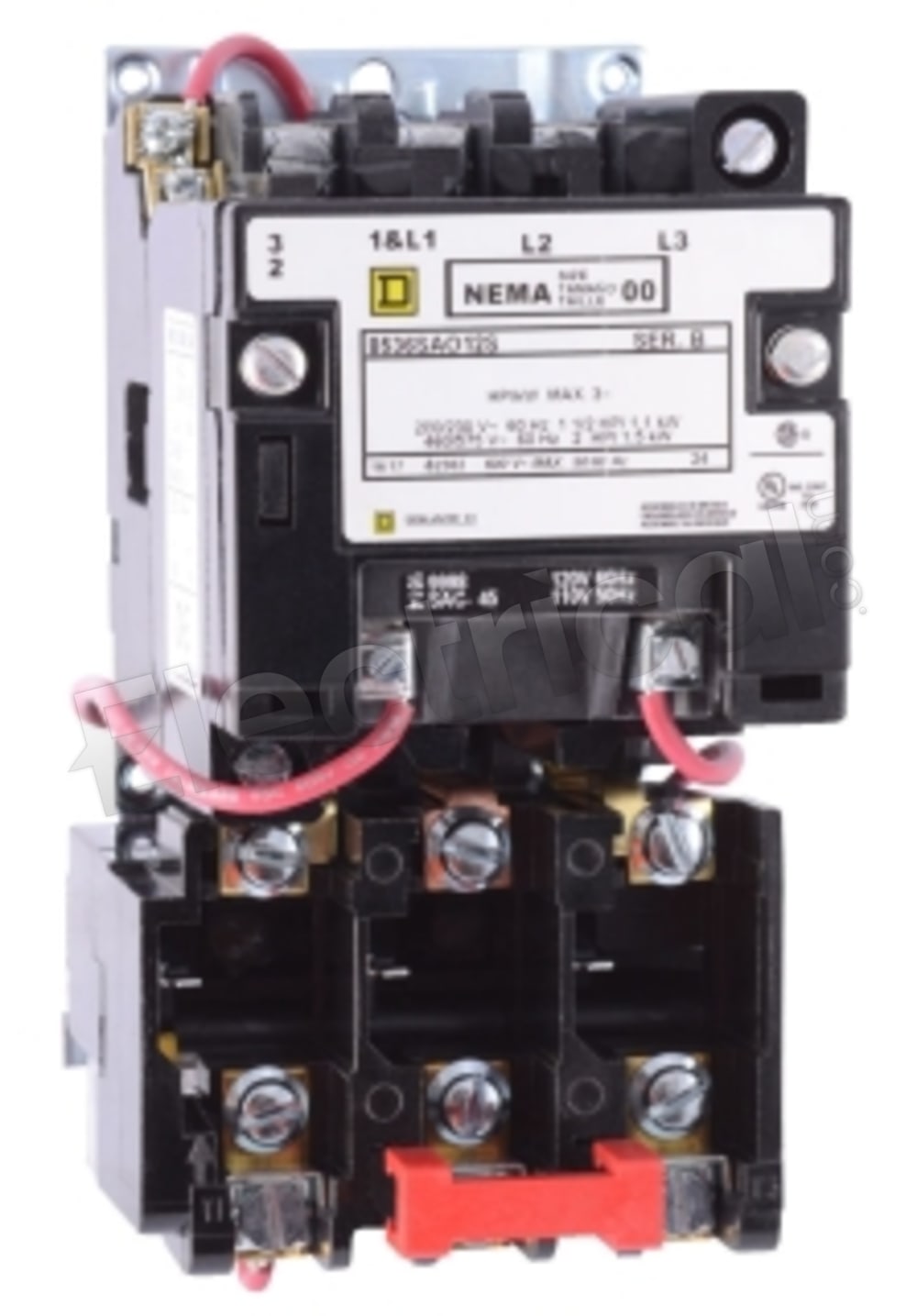

SQUARE D . 8536SAO12V03

Full Voltage, Non Reversing; 1 1/2 Hp At 200/230 Vac 50/60 Hz, 2 Hp At 460/575 Vac 50/60 Hz; 9 Ampere; 3 Phase; Coil Voltage 220 V At 50 Hz, 240 V At 60 Hz; Size Nema 00; Open Enclosure; Overloads Melting Alloy; Nema Construction Standard; 8536 Model

NEMA Magnetic Motor Starters with Standard Overload Relays Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.UL Listed and CSA Certified.<br /><br /> Item: Magnetic Motor Starter<br /> NEMA Size: 00<br /> Amps AC: 9<br /> Coil Volts: 240VAC<br /> Enclosure NEMA Rating: No Enclosure<br /> HP @ 3 Phase - 240V: 1-1/2<br /> HP @ 3 Phase - 480V: 2<br /> Action: Nonreversing<br /> Number of Poles: 3<br /> HP @ 3 Phase - 208V: 1-1/2<br /> HP @ 3 Phase - 575V: 2<br /> Height: 6.77"<br /> Width: 3.5"<br /> Depth: 4.22"<br /> Standards: UL Listed/CSA Certified<br /> Starter Type: NEMA<br /> Hz: 50/60<br />
