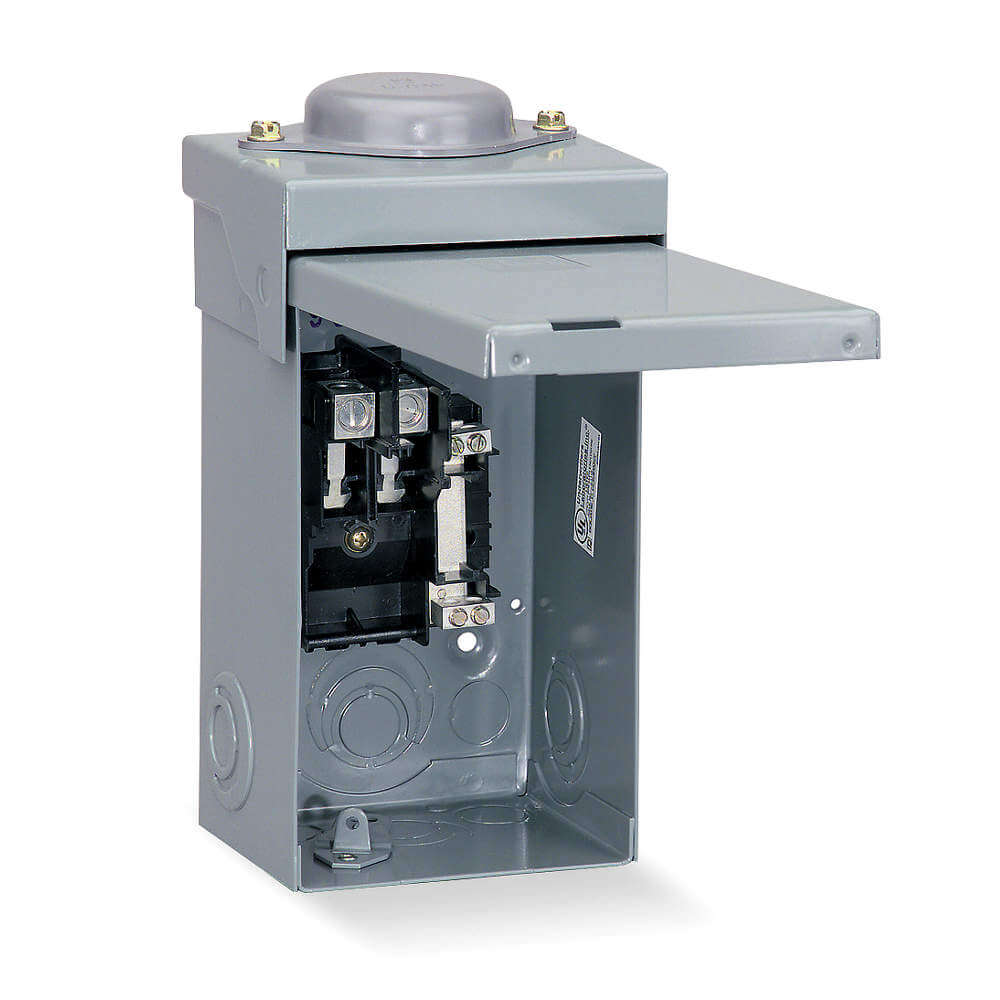

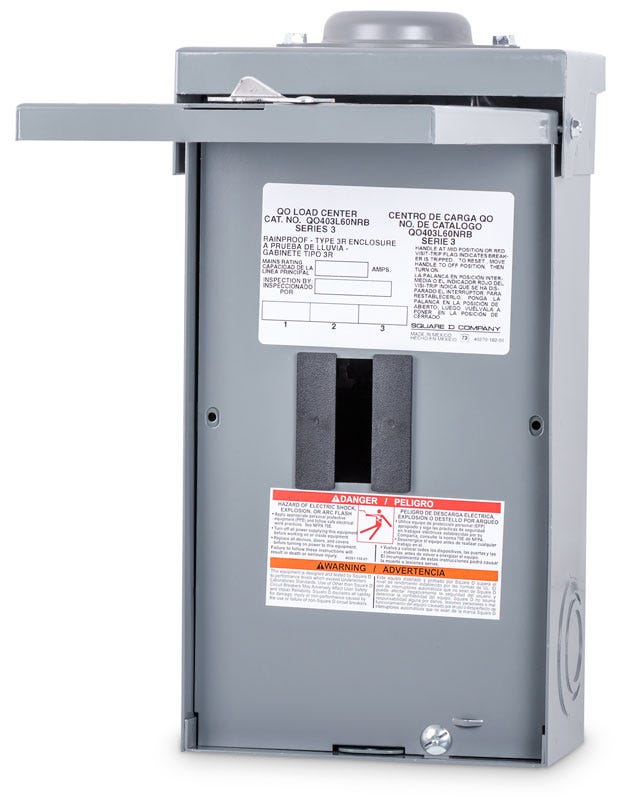

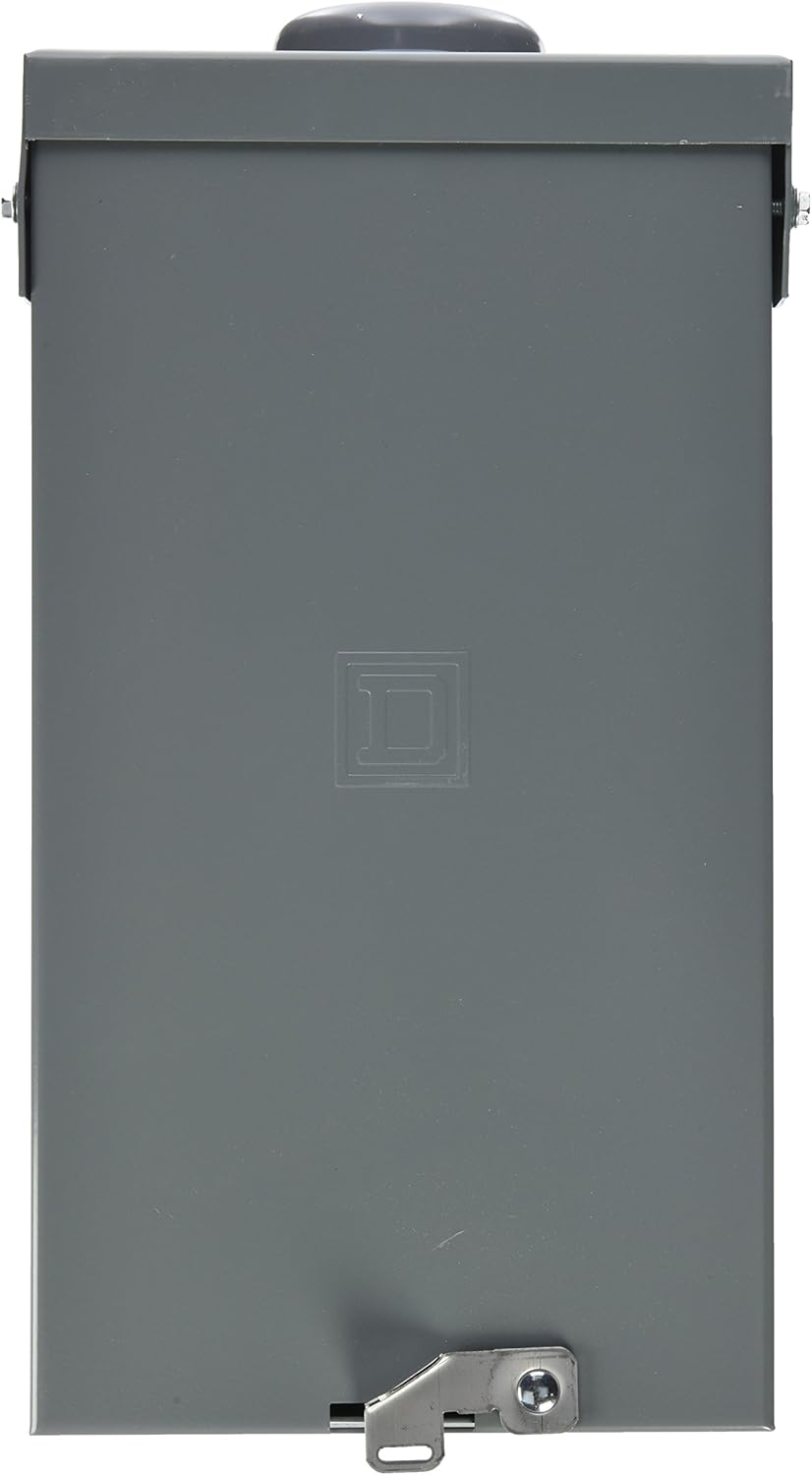

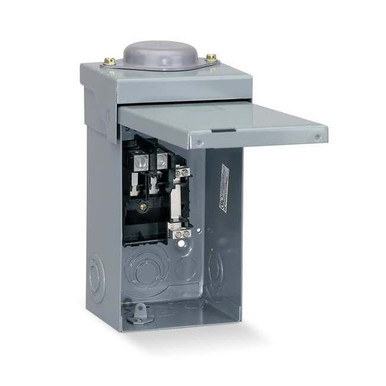

Load Center, Number of Spaces 3, Amps 60 A, Voltage 208Y/120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 3, Series QO, Height 13.19 in, Width 6.94 in, Depth 4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 3R, Cover Attachment Style Top Hinge, Cover Closure Method Latch

Load Center, Number of Spaces 3, Amps 60 A, Voltage 208Y/120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Surface Cover, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 3, Series QO, Height 13 3/16 in, Width 6 15/16 in, Depth 4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Aluminum, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 3R, Cover Attachment Style Top Hinge, Cover Closure Method Latch

This load center is designed to help protect against the ingress of rain, sleet, snow, falling dirt, and the external formation of ice on the enclosure.<br /><br /> Item: Load Center<br /> Main Circuit Breaker or Main Lug: Main Lug<br /> Amps: 60<br /> Number of Spaces: 3<br /> Max. No. of Tandem Breakers: 0<br /> Circuit Breaker Type: QO<br /> Voltage: 208Y/120VAC, 240/120VAC Delta, 240VAC Delta<br /> Series: QO403<br /> Phase: 3<br /> Height: 13-1/4"<br /> Width: 7"<br /> Depth: 4"<br /> Recommended Surface Cover: Included<br /> Short Circuit Current Rating: 65kA<br /> Bus Material: Shielded Tin Plated Copper<br /> Enclosure Material: Steel<br /> Enclosure NEMA Rating: 3R<br /> Recommended Ground Bar Kit: 5B718<br /> Standards: UL Listed, RoHS Compliant, Federal Specification W-P-115c As Type 1 Class 2<br />
