Square D - FA36040 - CIRCUIT BREAKER, MOLDED CASE, FA SERIES, 3-POLE, 600V 40A - RS

FA36040 Panelboard Circuit Breaker; Type Molded Case, Thermal Magnetic, Main; Voltage Rating 600 Volt AC, 250 Volt DC; Current Rating 40 Amp; Number of Poles 3; Interrupting Rating 14 Kiloamp at 600 Volt AC; Trip Setting 400 Amp Hold, 850 Amp Trip; Installation Plug-On; Application Construction, Commercial Building, Control Equipment Panel, Industrial Building, OEM Commercial; Used On I-Line Panelboard and Switchboard; Approval UL 489, CSA, IEC, Federal Specification W-C-375B/GEN; Frame Type F; Phase Connection Type ABC; Size 4.5 Inch Width x 4.13 Inch Depth x 6 Inch Height; Mounting Height 5.5 Inch; Wire Size (1) 12 to 1/0 AWG (Aluminum) or (1) 14 to 1/0 AWG (Copper)

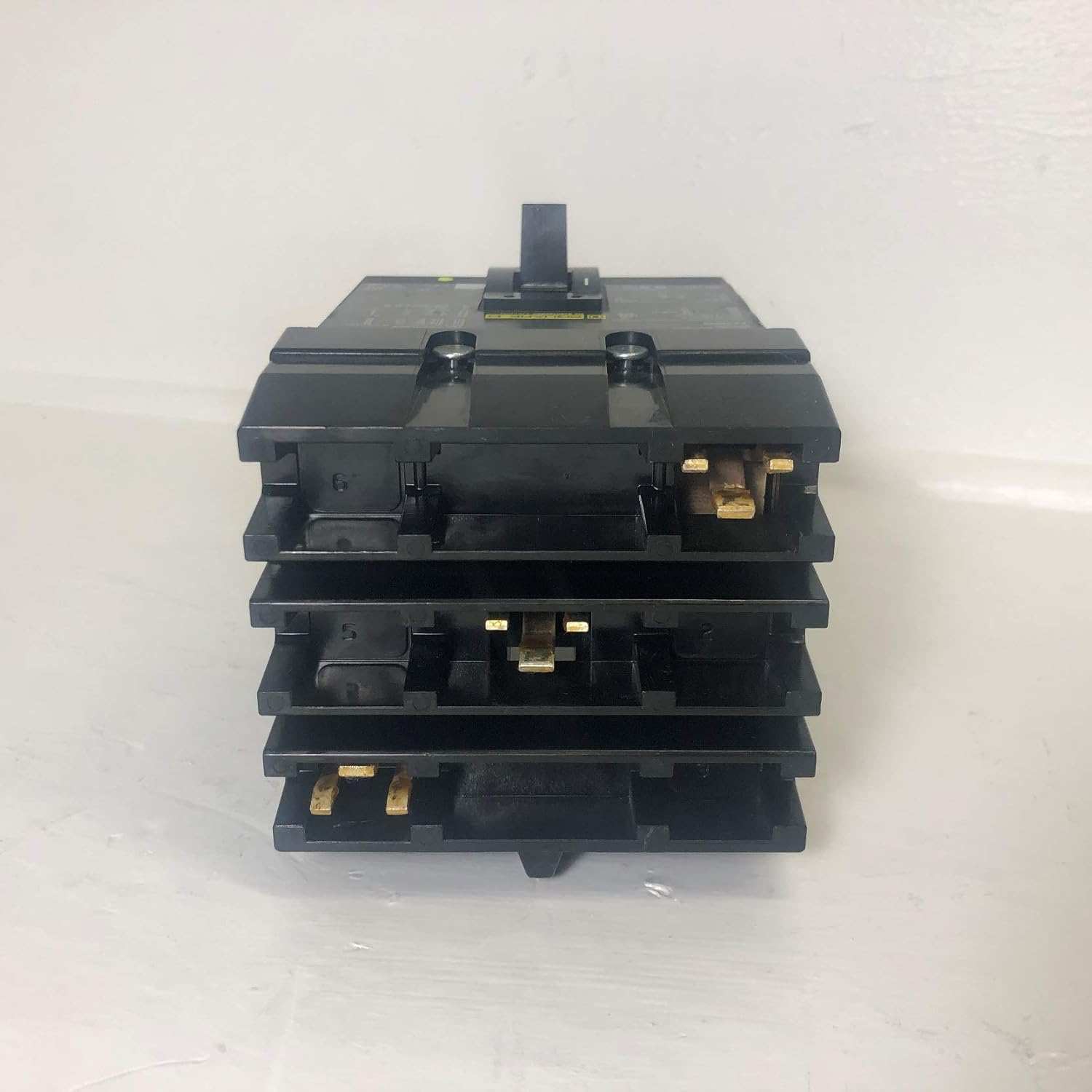

Square D<br>I-Line<br> Cat No. FA36040<br><br> Molded Case Circuit Breaker<br> 40 Amps<BR> Type FA<br><br>Includes set of lugs<br><br> 3 Pole<br> 480/600 VAC<br> 250 VDC<BR><BR> Interrupting Rating:<br> 25,000 Amps @ 240 Volts AC<BR> 18,000 Amps @ 480 Volts AC<BR> 14,000 Amps @ 600 Volts AC<BR> 10,000 Amps @ 250 Volts DC<BR><BR><BR> Breaker Weight: 5.4 lbs.<br> Breaker Dimensions (D x W x H): 4.5" x 4.5" x 7.5"<br> (add 1" to depth measurement for handle)<br> (add 1.5" to height measurement for bottom bracket)

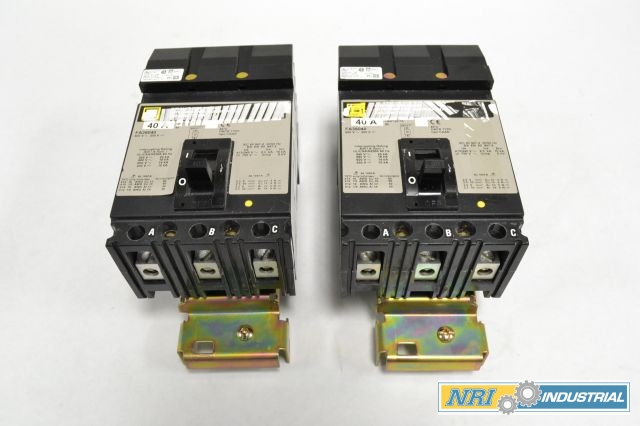

Mfr Brand Name: SQUARE D / Catalog No.: FA36040 / Product Name: SQUARE D FA36040 40A 600V 3P 18K USED / Poles: 3 / Amps: 40 / Volts: 600 / AIC: 18

Molded Case, Thermal Magnetic; F Frame; 240 Vac At 50/60 Hz, 480 Vac Star/277 Vac At 50/60 Hz, 480 Vac At 50/60 Hz, 600 Vac Star/347 Vac At 50/60 Hz, 600 Vac At 50/60 Hz (ul/csa/nom); 415 Vac At 50/60 Hz (iec); 250 Vdc; 40 Ampere; 3 Pole; Interrupting Rating 25 Kiloampere At 240 Vac, 18 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac, 14 Kiloampere At 600 Vac Star/347 Vac Or 600 Vac (ul/csa/nom); 10 Kiloampere At 415 Vac (iec); 10 Kiloampere At 250 Vdc; Terminal Plug On; Size 4.5 Inch W X 4.13 Inch D X 6 Inch H; Approval Ul, Csa, Ce; Fa Model; Applicable Standard W-c-375b/gen
