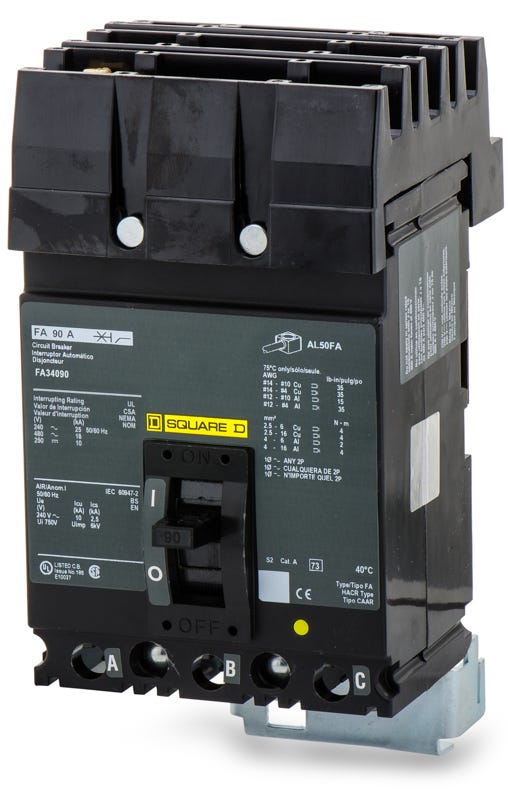

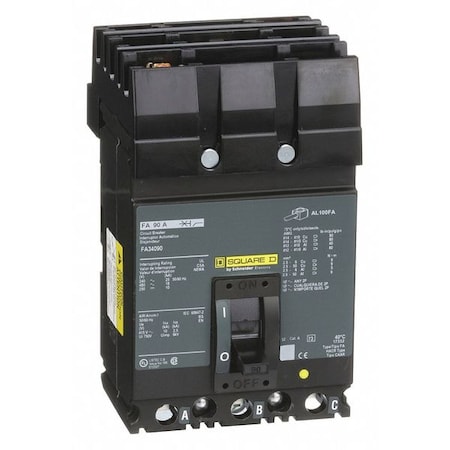

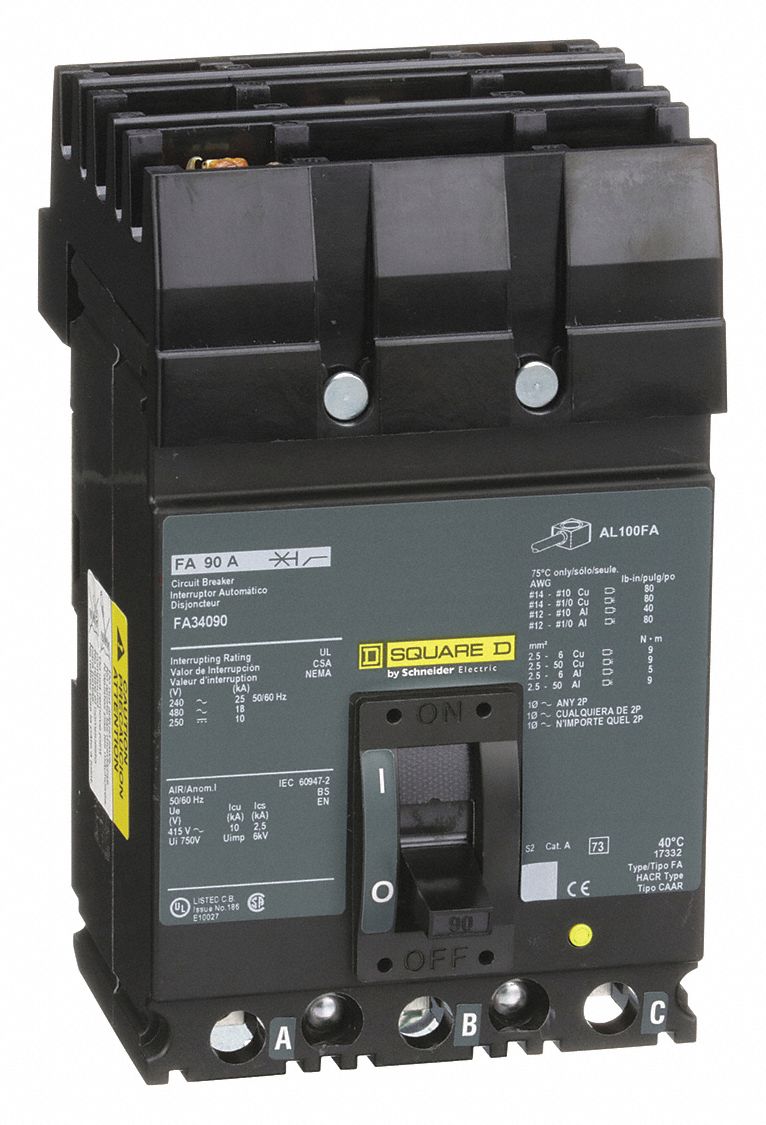

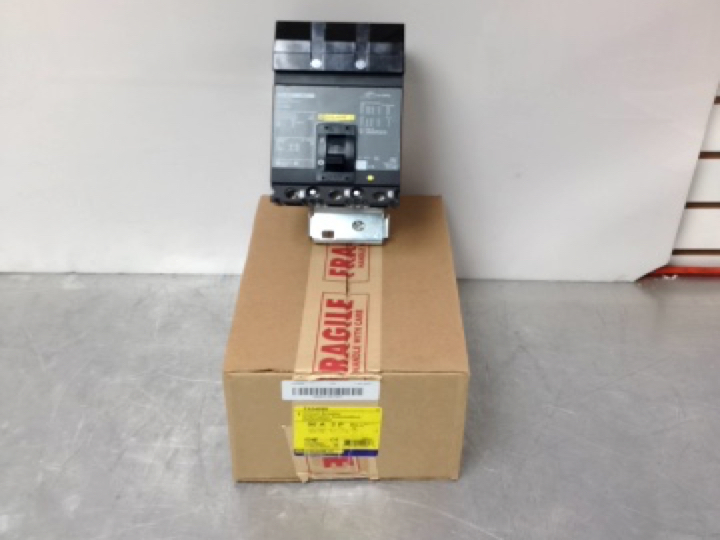

Square D - FA34090 - CIRCUIT BREAKER, MOLDED CASE, FA SERIES, 3-POLE, 480V 90A - Allied Electronics & Automation, part of RS Group

Images are for representation purpose only. Actual product may differ from specifications shown in photo. To check if the actual product is shown in image, or to request additional photos, please send us a message.<ul><li>FA34090</li><li>Square D</li><li>Molded Case</li><li>I-Line</li><li>FA</li><li>3 Phase</li><li>3 Pole</li><li>480 Volt</li><li>90 Amp</li><li>I-Line Style Plug In</li><li>Thermal Magnetic</li><li>(LI) Long-Time and Instantaneous</li><li>18kA@480V</li></ul>Depending on the item, some prices may be negotiable. Feel free to send us a message and make us an offer. We'd be happy to work with you within your budget, and all reasonable offers will be considered. We do our best to respond to most messages within one business day. Breaker Outlet specializes in new and obsolete circuit breakers, motor control, switchgear, and other electrical distribution. We have an extensive offline inventory, so if there's something you need that's not listed, please contact us and we may be able to get it for you. Our knowledgeable customer service team is here to help you with any questions, and we look forward to the opportunity to meet your electrical needs.

Mfr Brand Name: SQUARE D / Catalog No.: FA34090 / Product Name: SQUARE D FA34090 BU 90A 480V USED / Amps: 90 / Volts: 480

Square D<br>I-Line<br> Cat No. FA34090<br><br> Molded Case Circuit Breaker<BR> 90 Amps<BR> Type FA<br><br>Includes set of lugs<br><br> 3 Pole<br> 480 VAC / 250 VDC<br> HACR Type<br><BR> Interrupting Rating:<BR> 25,000 Amps @ 240 Volts AC<br> 18,000 Amps @ 480 Volts AC<BR> 10,000 Amps @ 250 Volts DC<br><BR><BR> Breaker Weight: 5.4 lbs.<br> Breaker Dimensions (D x W x H): 4.5" x 4.5" x 7.5"<br> (add 1" to depth measurement for handle)<br> (add 1.5" to height measurement for bottom bracket)

240/480 Vac At 50/60 Hz, 480 Vac Star/277 Vac At 50/60 Hz (ul/csa/nom); 240/415 Vac At 50/60 Hz (iec), 250 Vdc; 90 Ampere; 3; 25 Kiloampere At 240 Vac, 18 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac (ul/csa/nom); 10 Kiloampere At 415 Vac (iec), 10 Kiloampere At 250 Vdc; 900 To 1700 Ampere; Power Distribution; Class 650/651 I-line[r] Panelboard/switchboard; Ul, Csa; Fa; Fa Model; Frame Type F; Size 4.5 Inch W X 4.13 Inch D X 6 Inch H; Tripping Method Thermal Magnetic; Terminal Wire Size 14 To 1/0 Awg (copper)/12 To 1/0 Awg (aluminum)

Square D FA34090 240/480 vac at 50/60 hz, 480 vac star/277 vac at 50/60 hz (ul/csa/nom); 240/415 vac at 50/60 hz (iec); 250 vdc; 90 ampere at 40 deg c; 3 pole; interrupting rating 25 kiloampere at 240 vac, 18 kiloampere at 480 vac star/277 vac or 480 vac (ul/csa/nom)
