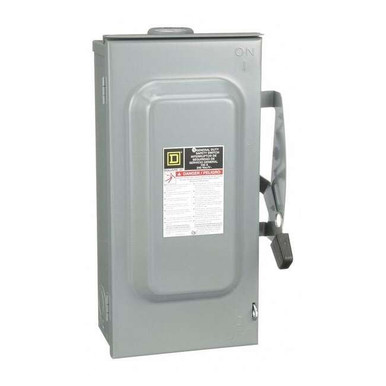

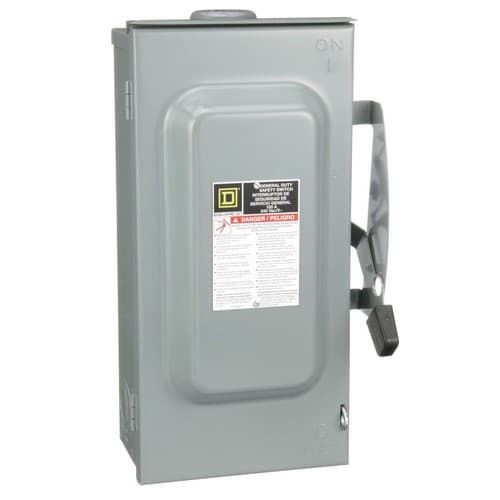

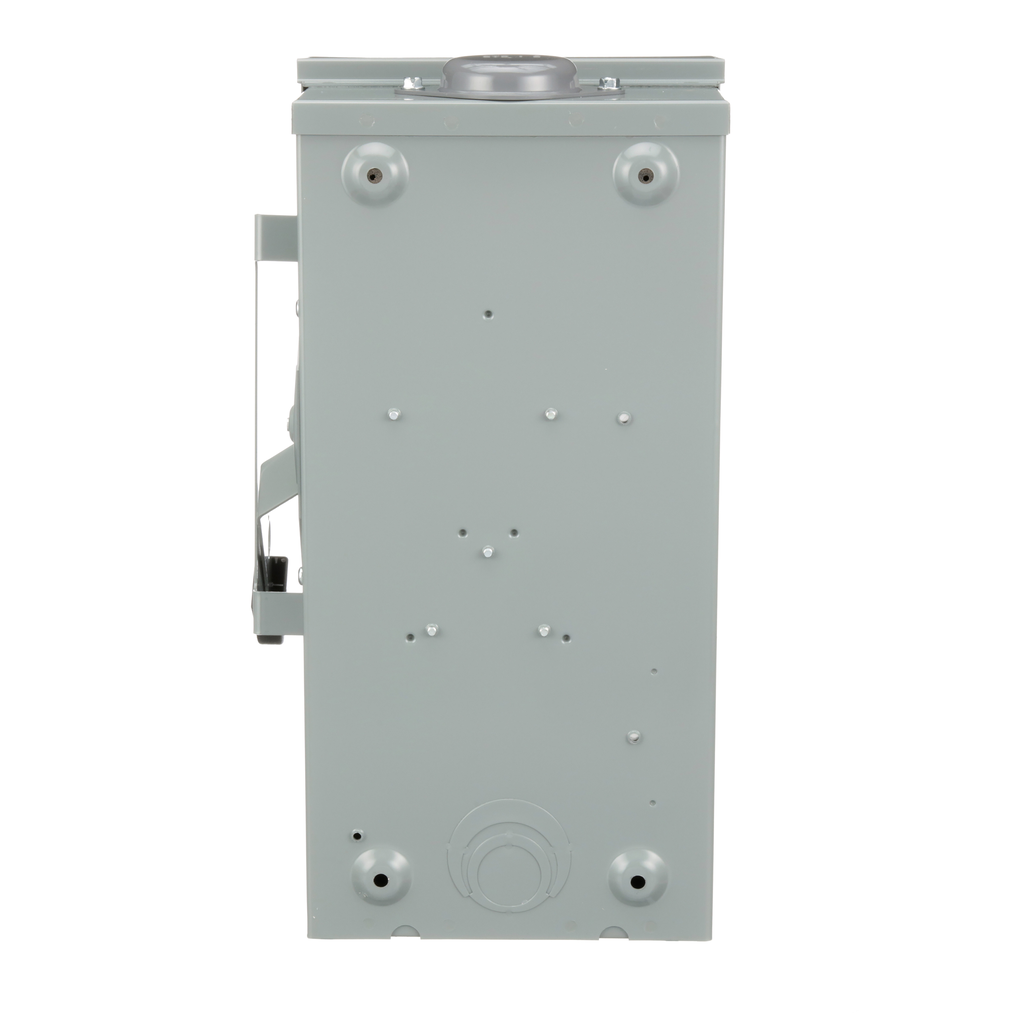

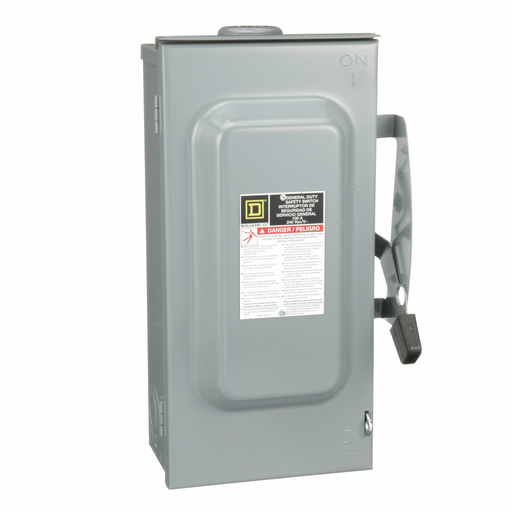

Square D by Schneider Electric . D223NRB

General duty safety switch. UL Listed cartridge fuse type. 100 amp 2 pole 3-wire 240 vac max.

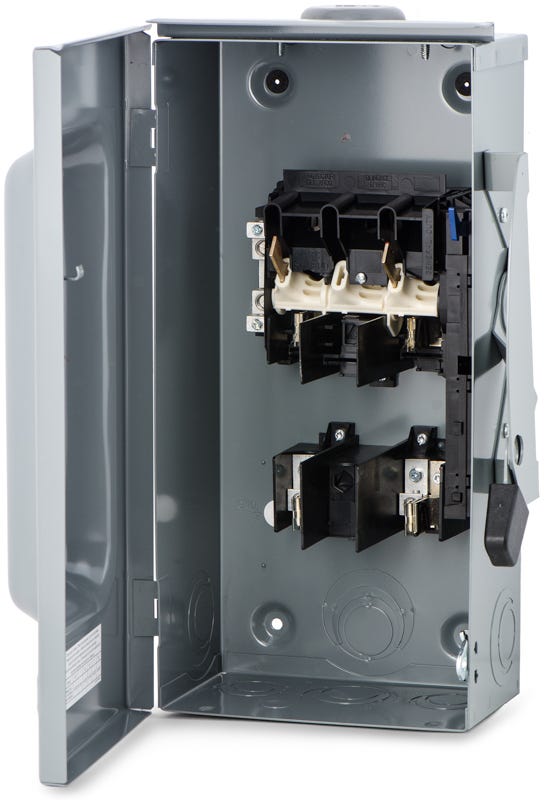

Suitable for use with service entrance equipment, this general-duty safety switch provides a 10kA short-circuit current rating when used with, or protected by, a Class H fuse. It has a 100kA short-circuit current rating when used with, or protected by, a Class R cartridge-type fuse (with a Class R fuse kit installed). Features include visible blades for positive identification that the switch is Off, a quick-make, quick-break operating mechanism, and spring-reinforced, plated-copper fuse clips. The lugs are suitable for aluminum or copper conductors. There are multiple padlock provisions in the Off position. An equipment grounding kit, available separately, is required.<br /><br /> Item: Safety Switch<br /> Protection Method: Fusible<br /> For Use With: Class H, K, R, T Fuse<br /> Duty: General<br /> Amps AC: 100<br /> Voltage: 240VAC<br /> Phase: 1<br /> HP: 15 HP @ 240VAC<br /> NEMA Enclosure Type: 3R<br /> IP Rating: 14<br /> Metallic / Non-Metallic: Metallic<br /> Material of Construction: Galvannealed Steel<br /> Number of Wires: 3<br /> Number of Poles: 2<br /> Contact Form: 2PST<br /> Height: 17.5"<br /> Width: 10.5"<br /> Depth: 6.5"<br /> Standards: UL Listed<br /> Fuse Kit (Class R): Mfr. No. RFK10
