Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Tandem, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Single, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.22 in, Width 0.75 in, Depth 2.91 in

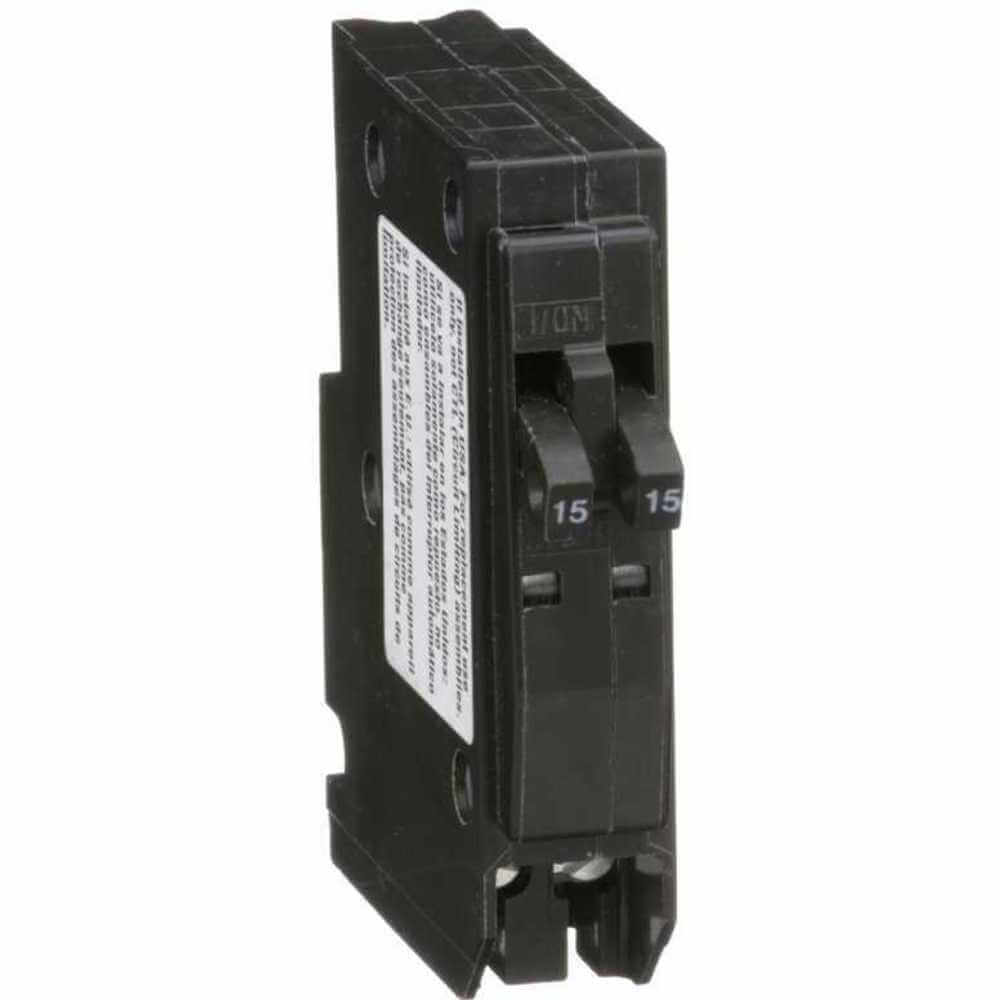

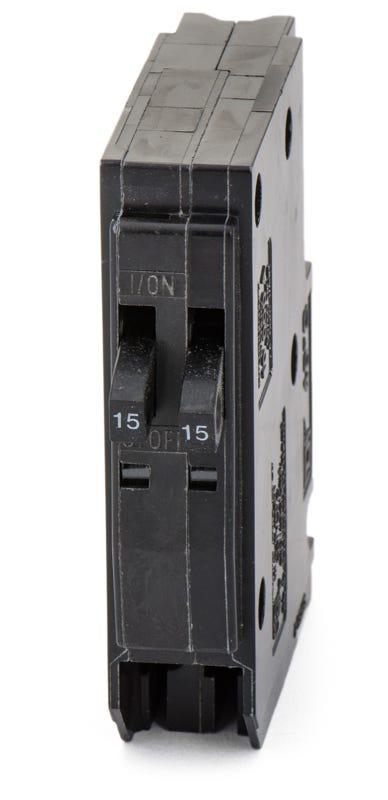

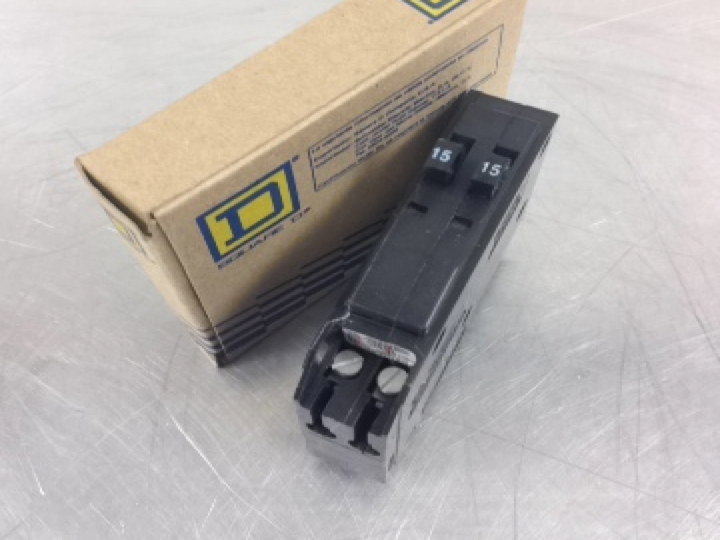

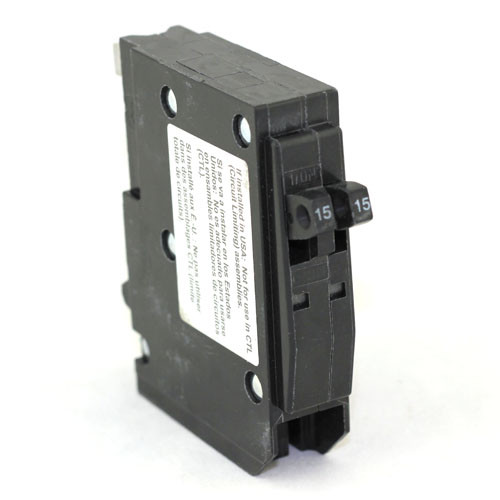

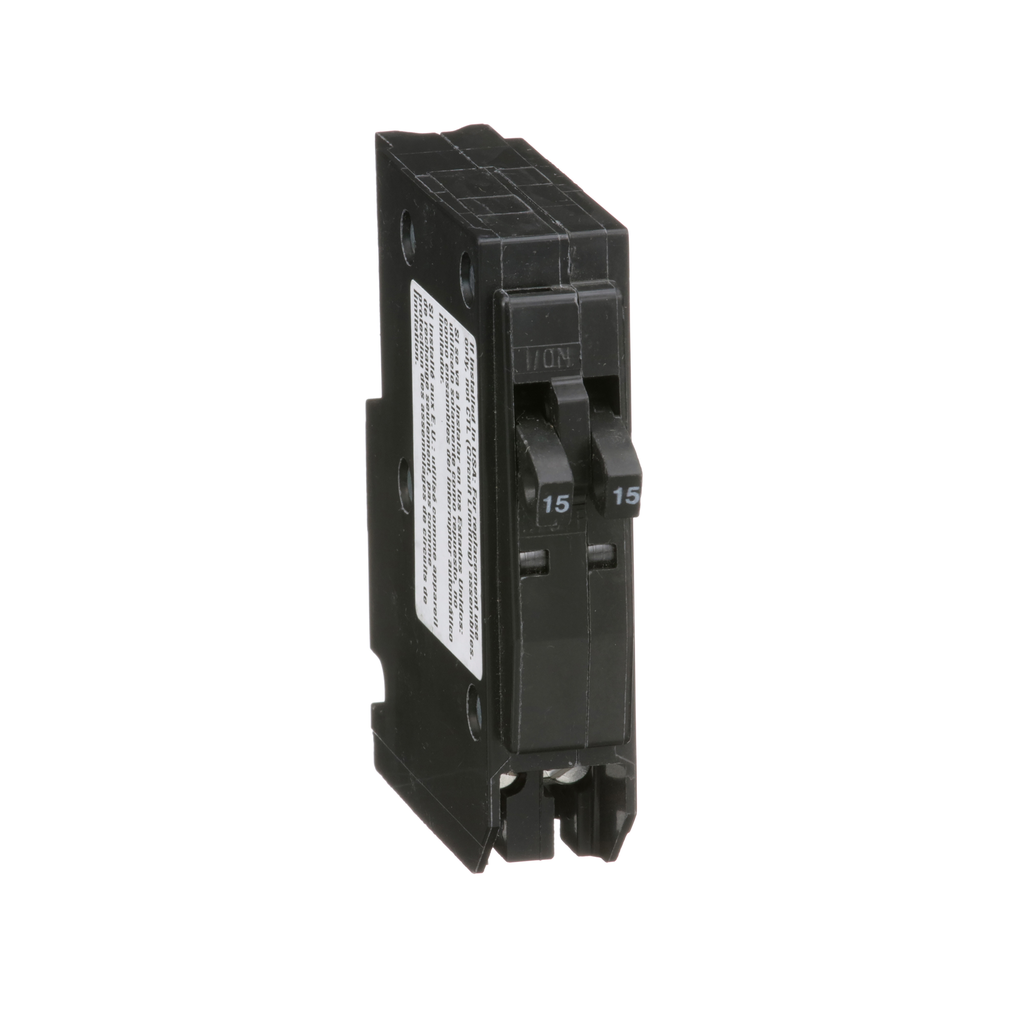

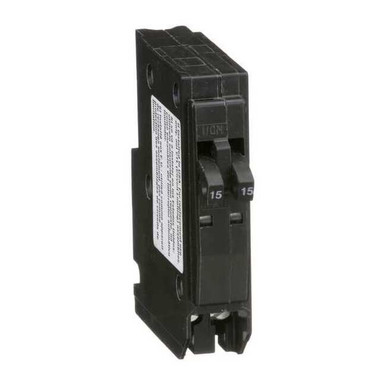

Square D QO™ Tandem 1-Pole miniature circuit breaker with Visi-Trip™ indicator, is rated at 15 Amps and 120/240 Volt AC. Interrupt current rating of this circuit breaker is 10 Kilo-Amps. It measures 0.75 Inch x 2.91 Inch x 3.5 Inch. This 1-Phase circuit breaker with box lugs connection, accommodates aluminum/copper wire of size 14 - 8 AWG. It features thermal-magnetic trip function to ensure reliability. This HACR rated circuit breaker supports plug-in mounting. It is suitable for us

Miniature Circuit Breaker, Amps 15, AC Voltage Rating 120/240V AC, Circuit Breaker Type Tandem, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase 1, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 3.22 in, Width 0.75 in, Depth 2.91 in, Min. Wire Size 12 AWG (Al), 14 AWG (Cu)

Thermal Magnetic; 1 Pole; 120/240 Vac At 50/60 Hz (ul/csa), 48 Vdc; 15 Ampere; Interrupting Rating 10 Kiloampere At 120/240 Vac (ul/csa), 5 Kiloampere At 48 Vdc; Wire Size 14 To 8 Awg (aluminum/copper), (2) 14 To 10 Awg (copper); Plug On Mounting; Size 0.75 Inch W X 2.91 Inch D X 3 Inch H; Approval Ul; Used On Qo Load Center, Nqod Panelboard, Oem Interior/speed-d[r] Switchboard Distribution Panel; Qo Model

Unlike fuses, miniature circuit breakers do not have to be replaced or reset after an overcurrent overload which makes them both more convenient and cost-efficient. Rated for aluminum and copper conductors.<br /><br /> Item: Plug In Circuit Breaker<br /> Amps: 15/15<br /> Number of Poles: 1<br /> Circuit Breaker Type: Tandem<br /> AC Voltage Rating: 120/240VAC<br /> DC Voltage Rating: Not Rated<br /> For Use With: QO Load Centers and NQOD Panelboards<br /> Series: QO<br /> Terminal Connection: Screw Clamp<br /> Min. Wire Size: 14 AWG<br /> Max. Wire Size: 8 AWG<br /> Length: 3.00"<br /> Width: 0.75"<br /> Depth: 2.91"<br /> Standards: UL Listed, CSA Certified<br /> Max. AIR Rating: 10 kA

<p><b>Note: </b>Image may not reflect actual productThe Square D QO Single Pole Miniature Tandem Circuit Breaker by Schneider Electric is designed to protect against overloads and short-circuits using a single pole tandem design, which allows 2-1P circuits in one space (compatible only with QO spaces that allow tandem breakers).<p><b>Specifications: </b><ul><li>Product: Miniature circuit-breaker</li><li>Range: QO</li><li>Current Rating: 15A</li><li>Certifications: UL listed / CSA</li><li>Voltage Rating: 120/240</li><li>Inturrupt Rating: 10 kA 120/240 V AC 50/60 Hz</li><li>Mounting Type: Plug-in</li><li>Number of Poles: 1</li><li>Number of Panel Spaces: 1</li><li>Ratings: HACR rated</li><li>Electrical Connection: Box lugs</li><li>Wire Size: AWG 14...AWG 8 copper or aluminium</li><li>Ambient air temperature for operation: 104 F (40 C)</li></ul></p>
