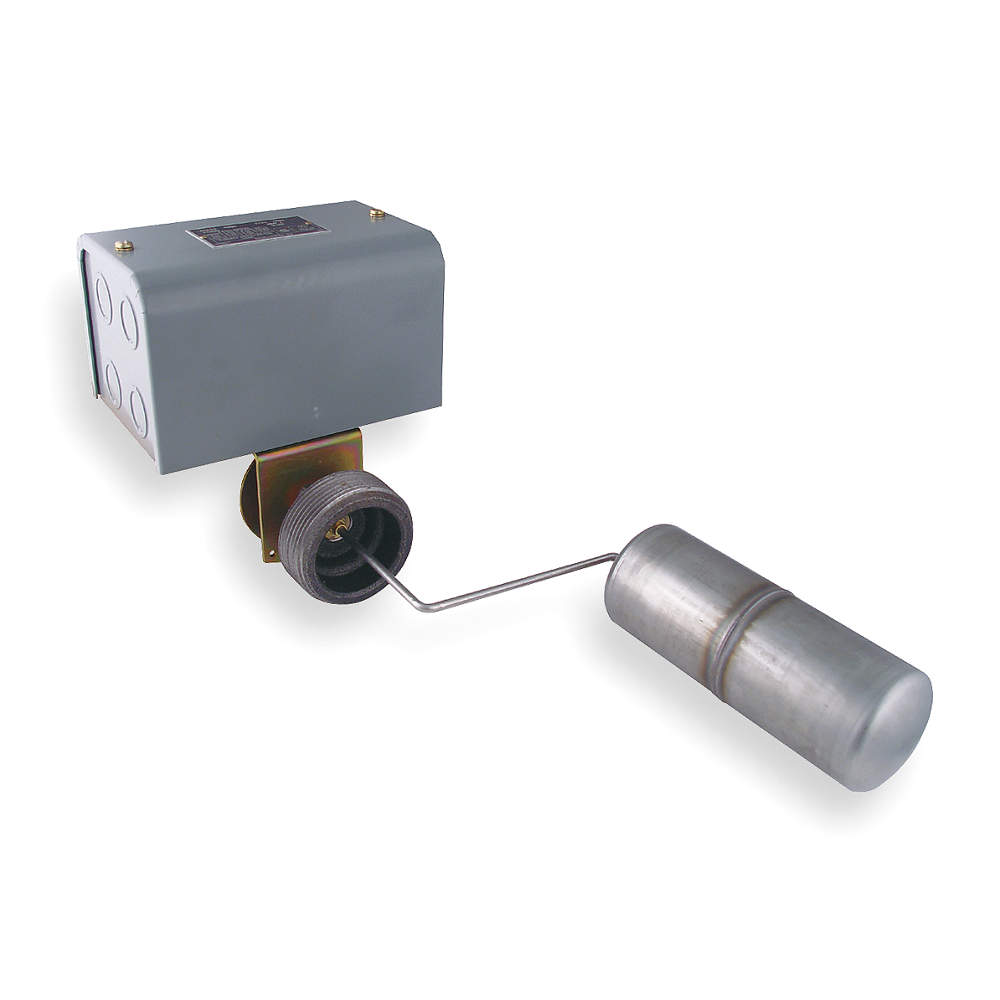

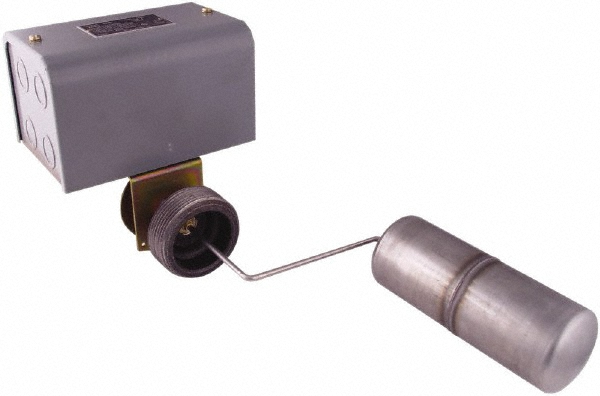

Square D - 9038CG36 - Float Switch 575Vac 1Hp Type C +Options - RS

<p><b>Description</b><ul><li>Overview Application: Closed tanks using duplex, condensate pumps. A 2.5 in. cast iron bushing attaches the float switch to the tank. Float Movement: Transmitted through a nitrile rubber seal such as a Buna-N quad ring. Occasional seal replacement may be necessary. Tank Pressure: Up to 50 psi Ambient Temperature: -22 to 200 °F Media Temperature (Minimum): Solidification point of the medium in the tank, down to -22 °F Contact Operation: Close on liquid rise (standard) Float Travel: Float travel is determined by the rod length. An external pointer indicates the float position. Materials (Standard): #304 SS float, #316 SS rod, 2.5 in. cast iron bushing, brass sealing connector, Buna-N quad ring packing. Water Level Change (in.): 4.75 - 9.25 (Min. - Max.)</li><li> Enclosure Type: NEMA-1 </li><li> Size: 2-1/2"</li></ul></p>

<p><b>Overview</b><ul><li><b>Application: </b>Closed tanks using duplex, condensate pumps. A 2.5 in. cast iron bushing attaches the float switch to the tank.</li><li><b>Float Movement: </b>Transmitted through a nitrile rubber seal such as a Buna-N quad ring. Occasional seal replacement may be necessary.</li><li><b>Tank Pressure: </b>Up to 50 psi</li><li><b>Ambient Temperature: </b>-22 to 200 F</li><li><b>Media Temperature (Minimum): </b>Solidification point of the medium in the tank, down to -22 F</li><li><b>Contact Operation: </b>Close on liquid rise (standard)</li><li><b>Float Travel: </b>Float travel is determined by the rod length. An external pointer indicates the float position.</li><li><b>Materials (Standard): </b>#304 SS float, #316 SS rod, 2.5 in. cast iron bushing, brass sealing connector, Buna-N quad ring packing.</li><li><b>Water Level Change (in.): </b>4.75 - 9.25 (Min. - Max.)</li></ul></p><p><b>Specifications: </b><ul><li>Enclosure Type: NEMA-1</li><li>Size: 2-1/2"</li></ul></p>
