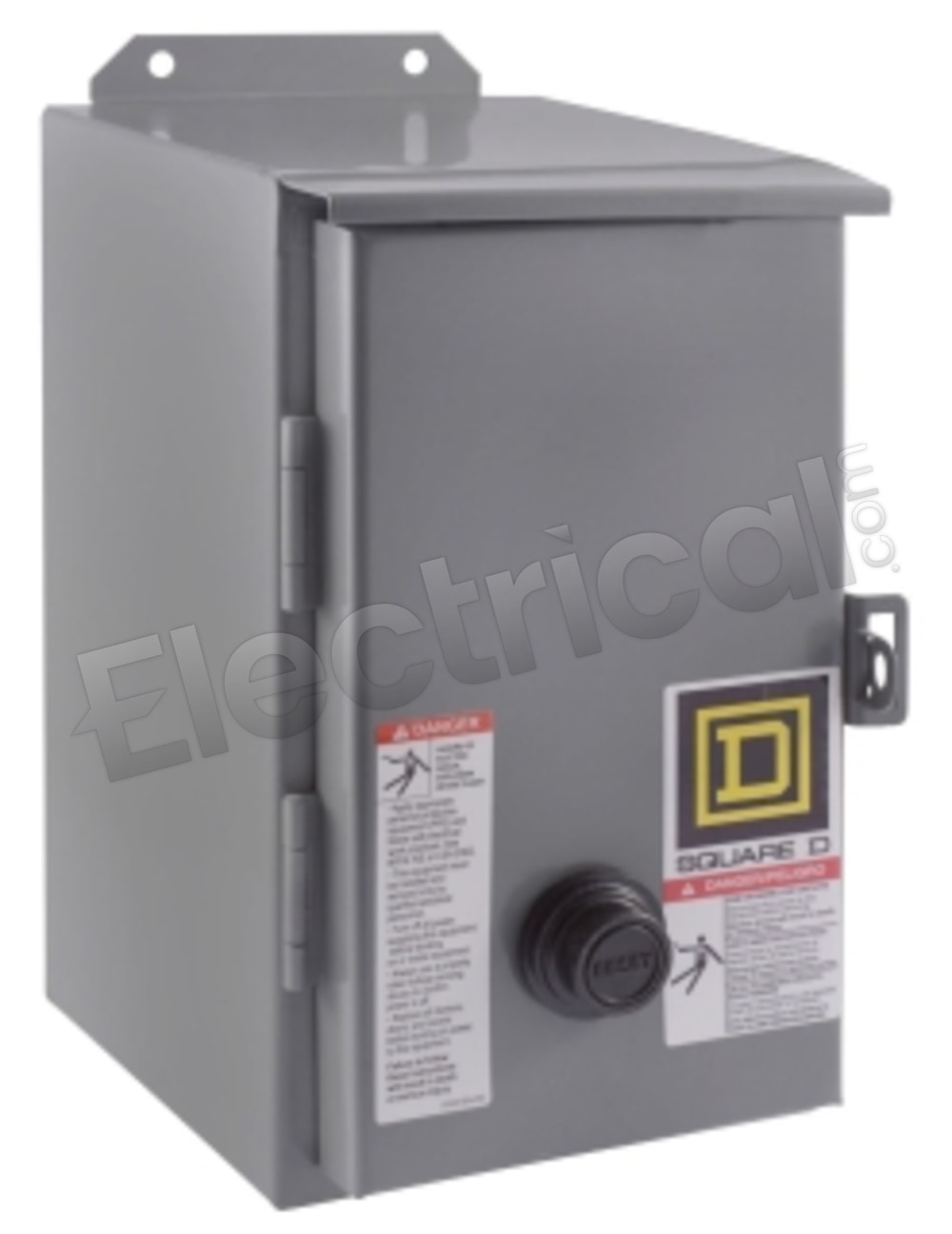

SQUARE D . 8536SCA3V02S

Full Voltage, Non Reversing; 7 1/2 Hp At 200/230 Vac 50/60 Hz, 10 Hp At 460/575 Vac 50/60 Hz; 27 Ampere; 3 Phase; Coil Voltage 110 V At 50 Hz, 120 V At 60 Hz; Size Nema 1; Nema 3R/12 Enclosure; Overloads Melting Alloy; Nema Construction Standard

Mfr Brand Name: SQUARE D / Catalog No.: 8536SCA3V02S / Product Name: SQUARE D 8536SCA3V02S U Coil120V 8536 USED / Extended Description: <ul><li>FULL VOLTAGE, NON REVERSING TYPE</li><li> NEMA 1 SIZE</li><li> 27 AMPERE CURRENT RATING</li><li> NEMA 12 ENCLOSURE TYPE</li><li> NEMA CONSTRUCTION STANDARD</li><li> 110 VAC AT 50 HZ, 120 VAC AT 60 HZ COIL VOLTAGE</li><li> 7.5 HP AT 200/230 VAC 50/60 HZ, 10 HP AT 460/575 VAC 50/60 HZ 3 PHASE</li></ul>

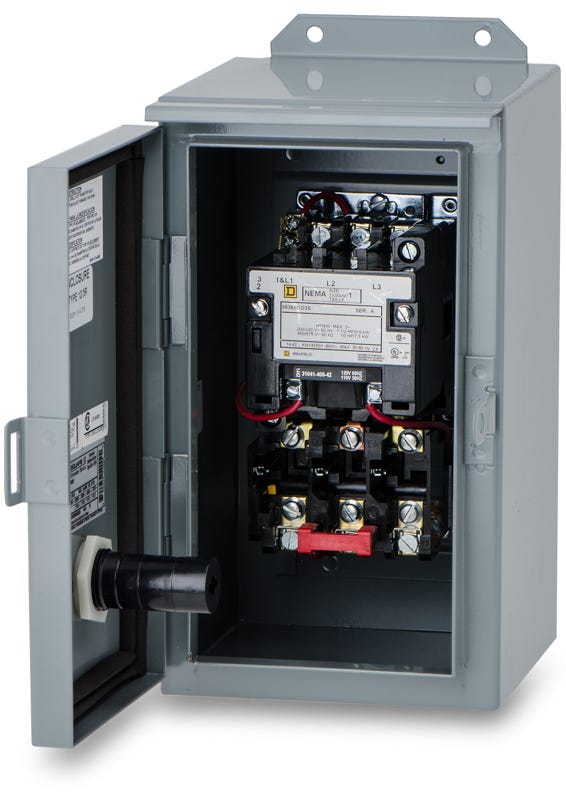

NEMA Magnetic Motor Starters with Standard Overload Relays Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.UL Listed and CSA Certified.<br /><br /> Item: Magnetic Motor Starter<br /> NEMA Size: 1<br /> Amps AC: 27<br /> Coil Volts: 120VAC<br /> Enclosure NEMA Rating: 12,3R<br /> HP @ 3 Phase - 240V: 7-1/2<br /> HP @ 3 Phase - 480V: 10<br /> Action: Nonreversing<br /> Number of Poles: 3<br /> HP @ 3 Phase - 208V: 7-1/2<br /> HP @ 3 Phase - 575V: 10<br /> Height: 12.75"<br /> Width: 6.38"<br /> Depth: 8.53"<br /> Standards: UL Listed/CSA Certified<br /> Starter Type: NEMA<br /> Hz: 50/60<br />
