Square D by Schneider Electric . 9038AG1C

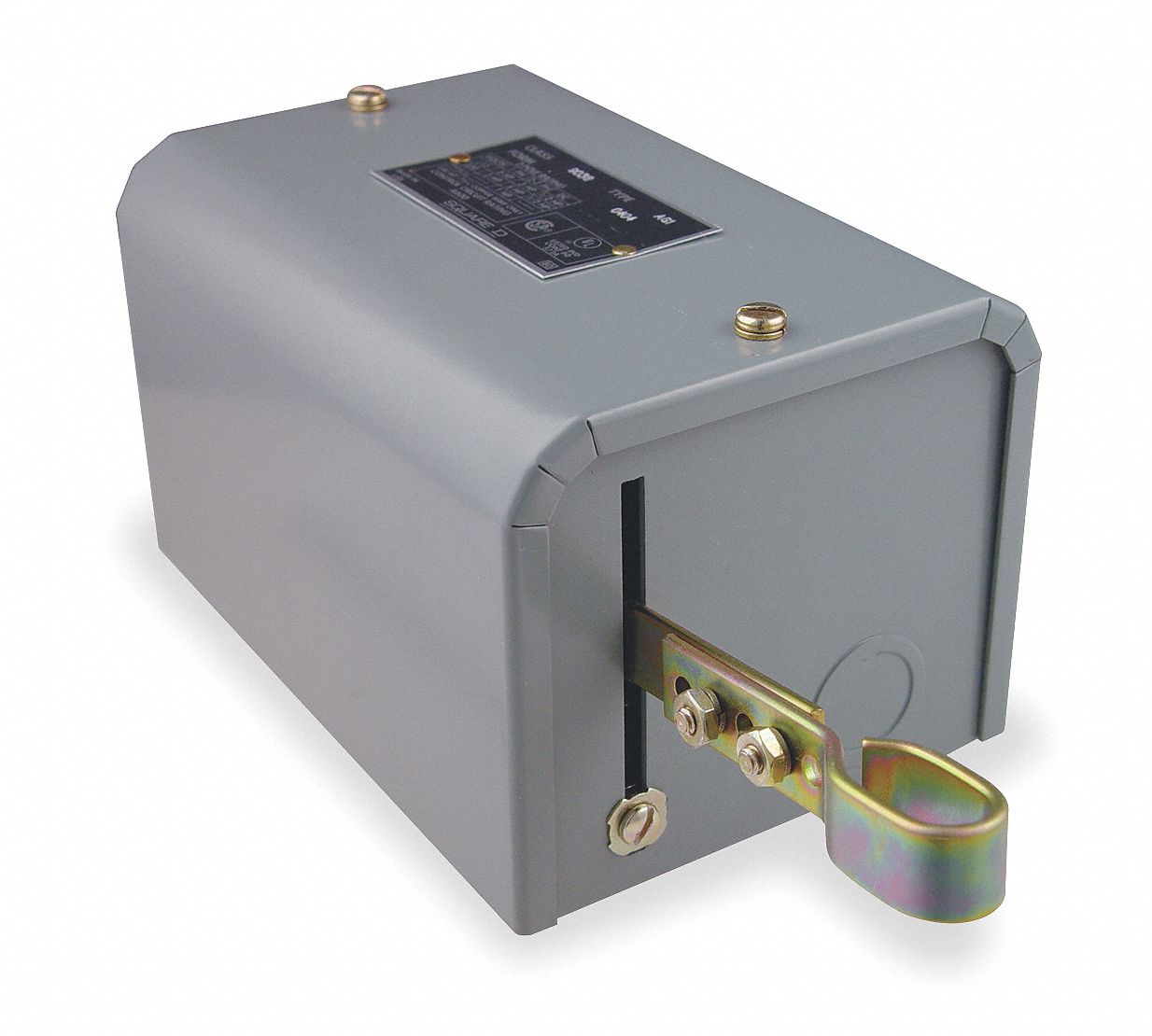

This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. Class 9036 switches are single-lever operated.<br /><br /> Item: Alternator Open Liquid Level Switch<br /> Amps: 10<br /> Contact Form: DPST<br /> VA Rating: 460VAC<br /> Float Travel: 1-1/4"<br /> NEMA Rating: 1<br /> Operating Temp. Range: -22 Degrees to 220 Degrees F<br /> Switch Function: Close On Rise<br /> Overall Length: 10.32"<br /> Float Material: Stainless Steel<br /> Float Length: 7.00"<br /> Float Dia.: 7.00"<br /> Height: 4.50"<br /> Width: 4.69"<br /> Max. Current: 600A<br /> Max. Voltage: 600<br /> HP @ 1 Phase - 120V: 2<br /> HP @ 1 Phase - 240V: 3<br /> HP @ 3 Phase - 240V: 5<br /> Mounting: Open Tank<br /> Body Material: Steel<br /> Float Position: Below<br /> Conduit Size: 4-1/2", 4-3/4"<br /> Standards: UL, CSA<br /> Electrical Connections: Screw Clamp<br /> Includes: Compensating Spring - Does Not Include Float

<p><b>Note: Image may not be exact representation of item.</b>Schneider Electric / Square D 2-Pole Float switch has DPST contact configuration for convenient operation. It has a power rating of 3 hp at 230 VAC for 1-Phase, 5 hp at 230 VAC for 3 phase, 1/2 hp at 230 VDC and 575 VAC polyphase. Switch features sturdy float rod for durable and convenient use. It is suitable to provide a positive means of mechanical alternating two pumps or motors and is perfect for connecting open tank/closed tank.Switch measures 4.690 Inch x 4.500 Inch and operates at a temperature of - 22 -220 deg F. It has a contact rating of 120 - 600 VAC and 125/250 VDC. It features a mounting hole of 1/2-Inch diameter for easy installation. Switch meets CSA/RU/RoHS standards.<p><b>Specifications: </b><ul><li>Material: Cold-Rolled Steel</li><li>Item: Float Switch</li><li>Mounting: Flange</li><li>Environmental Conditions: Ambient Air Temperature for Storage -22 to 220 deg F</li><li>Connection: 10 AWG Screw Clamp Terminal</li><li>Amps: 10</li><li>Float Travel: 1-1/4"</li><li>Switch Function: Close on Rise</li><li>Consist Of: Float, Rod</li><li>Contact Configuration: DPST</li><li>Brand Name: Schneider Electric / Square D</li><li>Number Of Poles: 2</li><li>Power Rating: 3 hp At 230 Volt AC 1 Phase, 5 hp At 230 Volt AC 3 Phase, 1/2 hp At 230 Volt DC</li><li>Operating Temperature: -22 to 220 deg F</li><li>Operating Cycles: 60 Per Min</li><li>Application: For Mechanically Alternating The Operation of Two Pumps or Motors</li><li>Action: Standard</li><li>Type: Mechanical Alternating, Open Tank</li><li>Voltage Rating: 125/250 Volt DC</li><li>Max. Current: 600A</li><li>Max. Voltage: 600</li><li>HP 1 Phase - 120V: 2</li><li>HP 1 Phase - 240V: 3</li><li>HP 3 Phase - 240V: 5</li><li>Standards: UL listed file E12158, CSA file LR25490, NEMA 1 UL 50</li><li>UNSPSC: 39122219</li><li>Product Type: Float Switch</li></ul></p>
