Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Grainger | 3DZX3 | 1 | 1 | ||
 Radwell | 9037-HW34 | 1 | -2 | 1 | 1 @ $346.00 |
 MRO Supply | 1050954 | 1 | 1 | ||
| gordonelectricsupply.com | 9037HW34 | 1 | 1 | ||
| AG6PQV | 1 | 1 | 1 @ $923.77 | ||
| AmazonSC | B000L9N6WO | 1 | 1 | ||
| Allied Electronics | 71437056 | 1 | 1 | ||
| sustainablesupply.com | C1193265 | 1 | -2 | 1 | 1 @ $543.70 |
 Zoro | G0322131 | 1 | 1 | 1 @ $475.99 | |
| standardelectricsupply.com | 2290730 | 1 | 1 | 1 @ $731.21 | |
 midwestapplianceparts.com | 9037HW34-SQ-P | 1 | Current Unavailable - No ETA Available | 1 | 1 @ $456.02 |
| SQD9037HW34 | 1 | 1 | |||
| 9037HW34 | 1 | Ships From Manufacturer | 1 | 1 @ $401.11 | |
| Graybar | 92113724 | 1 | 1 | 1 @ $716.85 | |
 cappusa.com | 1652324 | 1 | 1 | 1 @ $0.00 | |
 Galco | 9037HW34-SQD | 1 | 1 | 1 @ $455.40 | |
| Crescent Electric Supply Co | 9037HW34 | 1 | 1 | ||
 Digi-Key | 17175224 | 1 | 1 | 1 @ $633.29 | |
| 9037HW34 | 1 | 1 | 1 @ $699.97 | ||
| 9037HW34 | 1 | 1 | 1 @ $0.00 | ||
| SQD9037HW34 | 1 | 1 | 1 @ $501.77 | ||
 blackhawksupply.com | 9037HW34 | 1 | Get a Quote | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

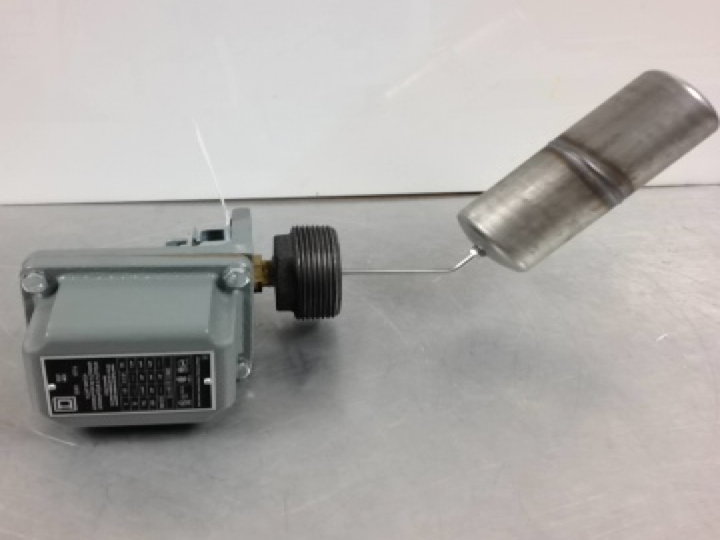

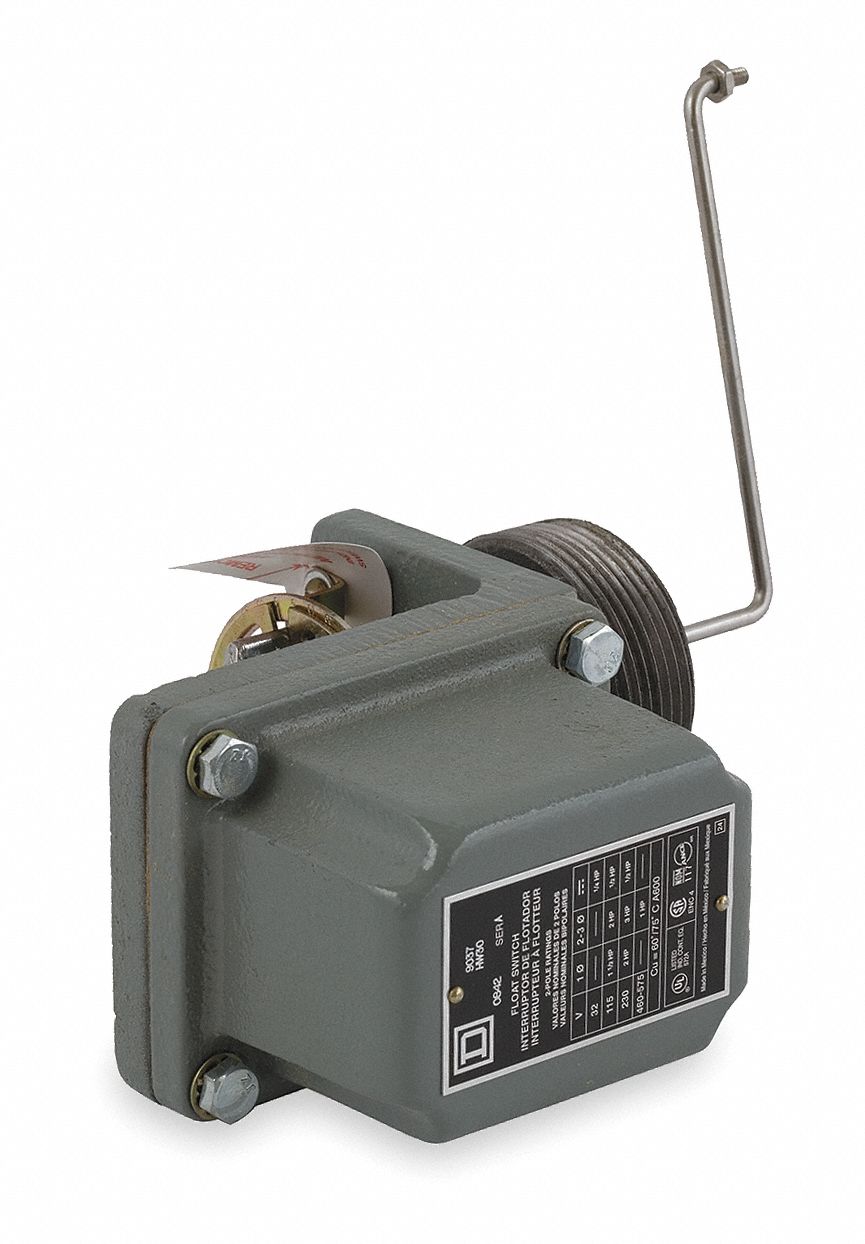

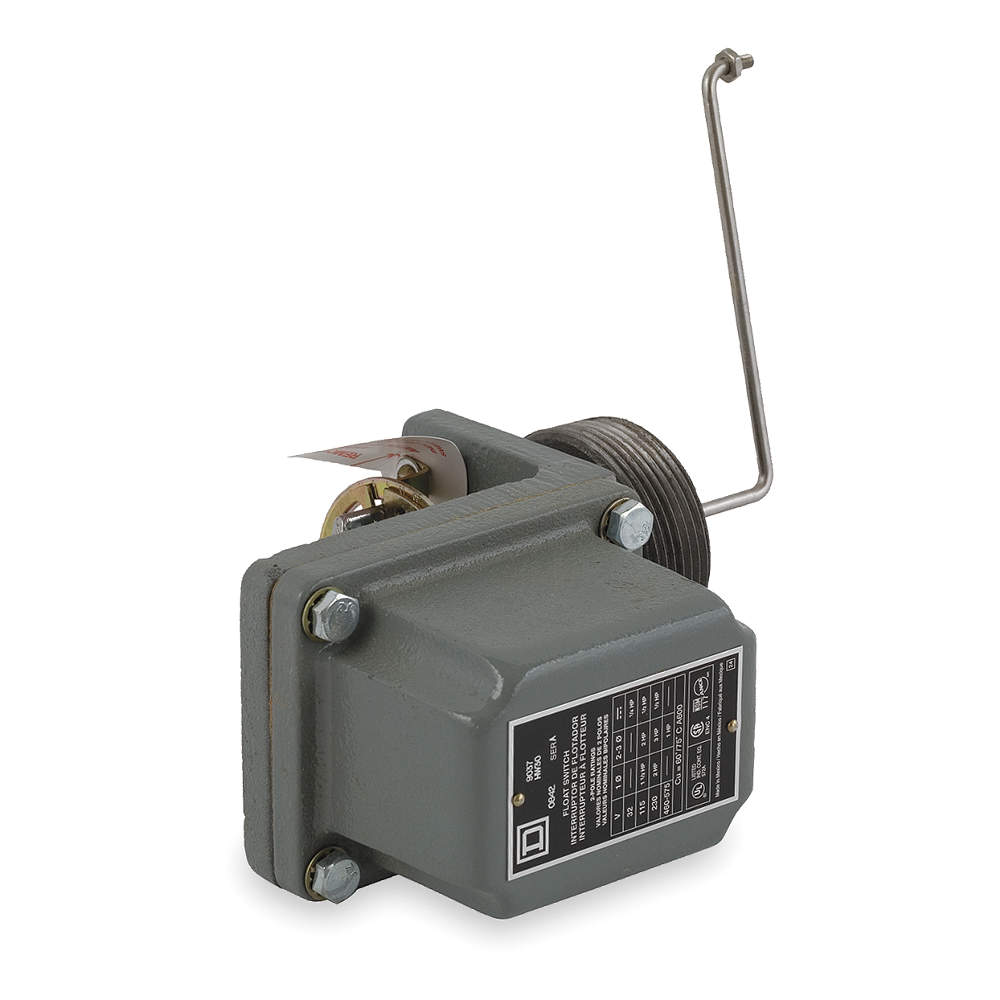

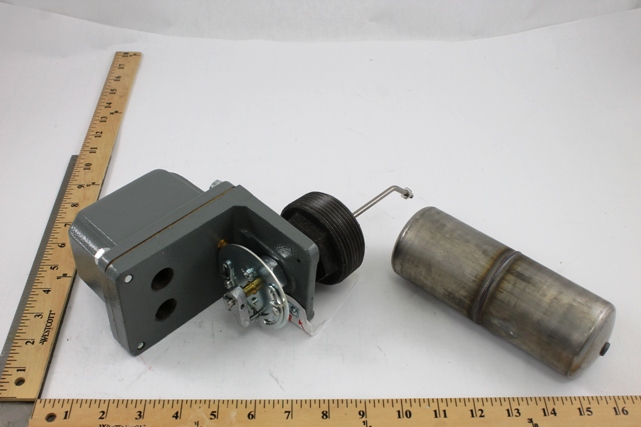

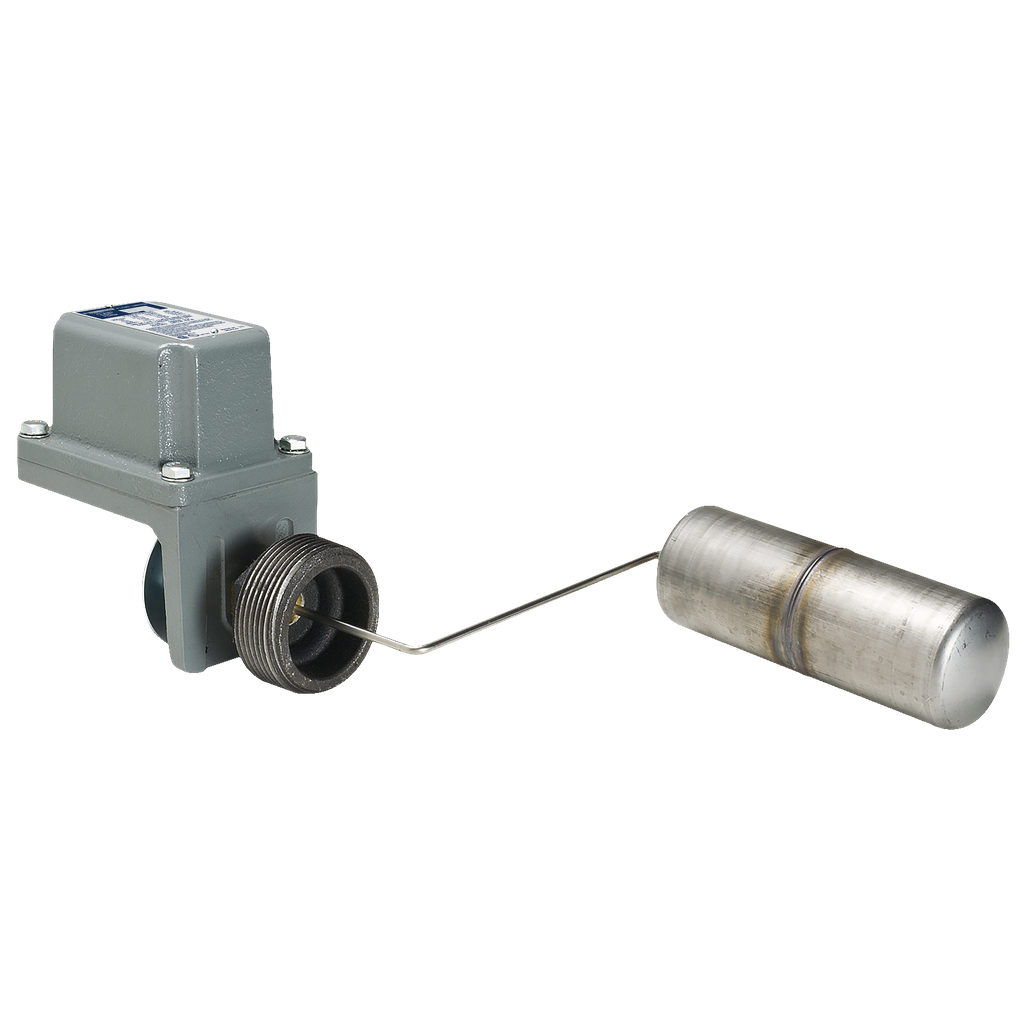

Square D 9037 Closed-Tank Float Switch with Bushing for Power Circuit, Side Mount, NEMA 4, Left Float Position, 45-Deg. Float Rod Angle, Contacts Close on Rise
Brand: Square D by Schneider Electric
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Model | 9037HW34 |
| Part number | 9037HW34 |
| Items per pack | 1 |
| Label | Schneider Electric |
| Manufacturer | Schneider Electric |
Catalog
| Feature | Float switch with screw-in bushing side-mounts to a closed-tank to activate a condensate or other pump |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 9037HW34 |
| UPC | 785901075417 |
| EAN | 94705590669 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | Schneider Electric |
Square D Tank Liquid Level Switch, Close On Rise, Stainless Steel, 2-1/2" MNPT
Brand: CAI - SQUARE D
This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. It includes an external pointer, nameplate, rod, and float. Class 9036 switches are single-lever operated.<br /><br /> Item: Tank Liquid Level Switch<br /> Switch Function: Close On Rise<br /> Mounting: Side<br /> Float Position: Left<br /> Float Rod Angle: 45 Degrees<br /> Float Travel: 6-1/4"<br /> Tank Connection Size: 2-1/2" MNPT<br /> NEMA Rating: 4<br /> Contact Form: DPST<br /> Operating Temp. Range: -22 Degrees to 220 Degrees F<br /> Max. Pressure: 50 psi<br /> Overall Length: 15.09"<br /> Float Material: Stainless Steel<br /> Float Length: 7.13"<br /> Float Dia.: 2.58"<br /> Stem Material: Stainless Steel<br /> Stem Length: 3.38"<br /> Height: 4.78"<br /> Width: 3.63"<br /> Max. Current: 600A<br /> Max. Voltage: 600<br /> HP @ 1 Phase - 120V: 2<br /> HP @ 1 Phase - 240V: 3<br /> HP @ 3 Phase - 240V: 5<br /> Body Material: Aluminum<br /> Conduit Size: 2-3/4"<br /> Electrical Connections: Screw Clamp<br /> Includes: Rod and Float
Listing
| Product group | BISS |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | 9037HW34 |
| Label | CAI - SQUARE D |
| Manufacturer | CAI - SQUARE D |
