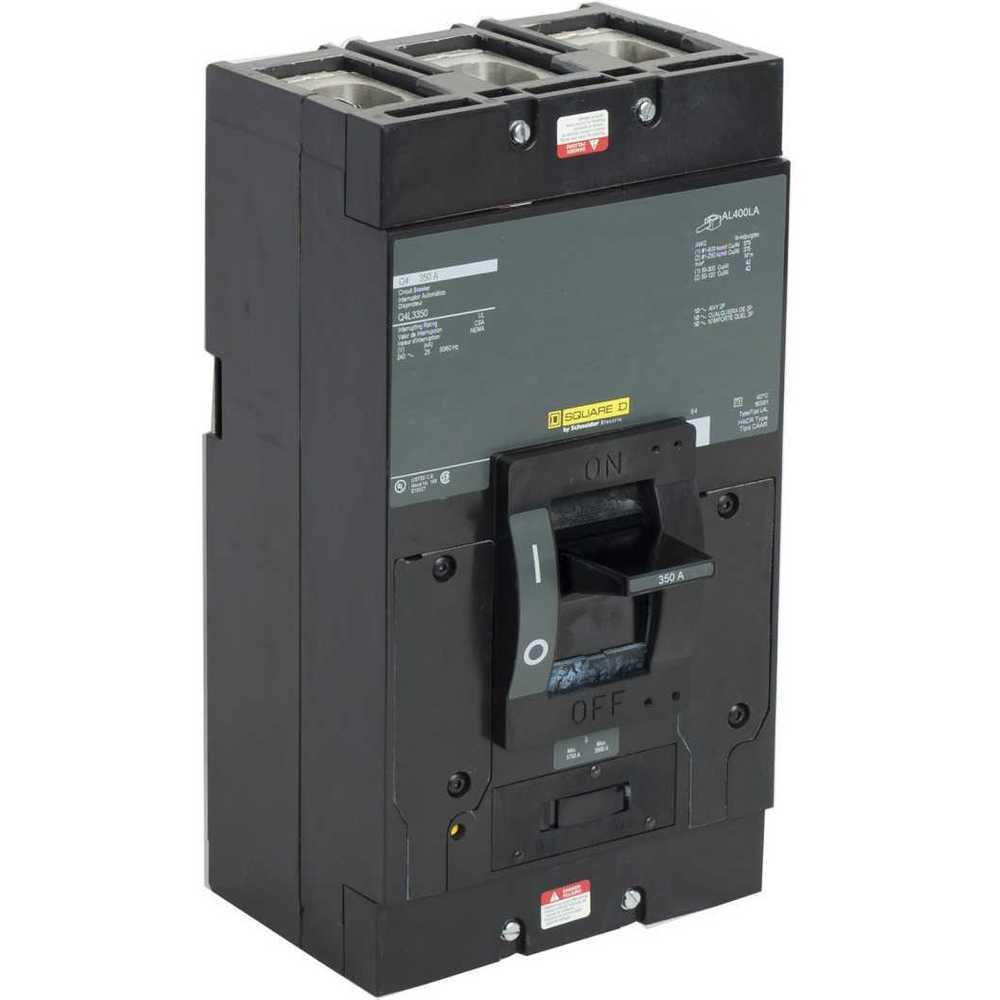

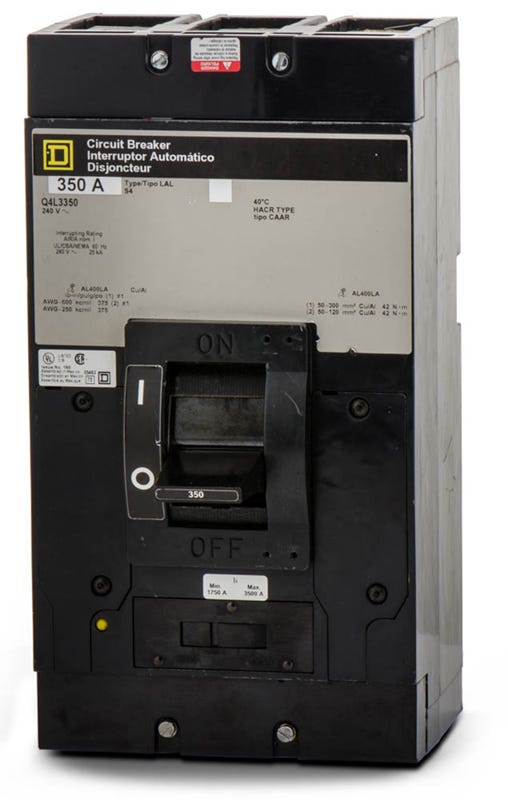

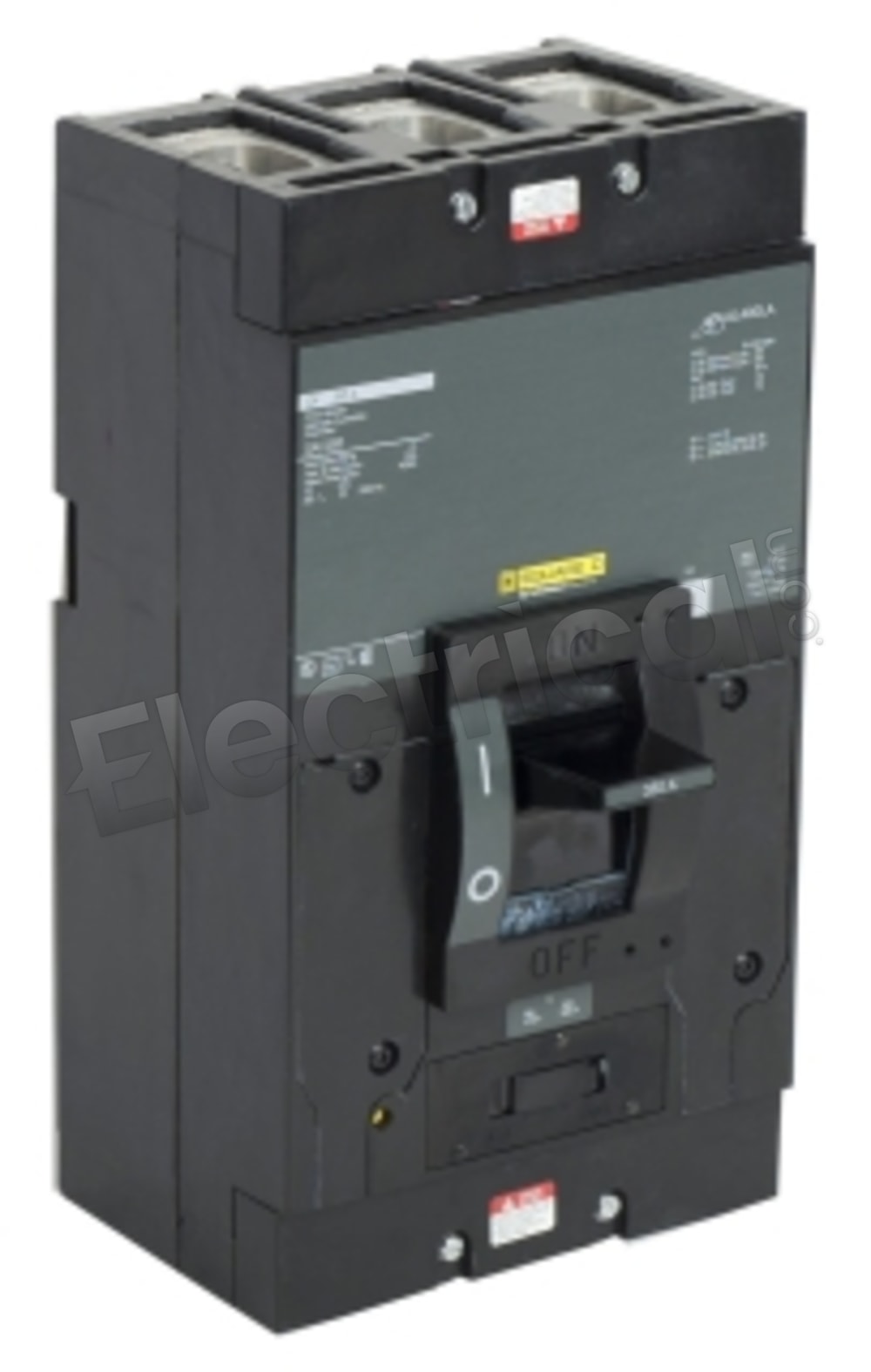

SQUARE D . Q4L3350

<p>Circuit Breaker, Amps 350, Number of Poles 3, Circuit Breaker Type Standard, AC Voltage Rating 240VAC, DC Voltage Rating Not Rated, For Use With -, Series Q4, Trip Type Thermal Magnetic, Terminal Connection Lug, Max. AIR Rating 25 kA, Phase Connection ABC, Mounting Free Standing, Height 11.00 In., Width 6.00 In., Depth 5.80 In., Min. Wire Size 1 AWG (Al), Max. Wire Size (1) 600 kcmil (Al) or (2) 250 kcmil (Al), Instantaneous Trip Adjustable, High Amp Trip Setting 3500A</p><p><b>Specifications: </b><ul><li>Phase: 3</li><li>Amps: 350</li><li>DC Voltage Rating: Not Rated</li><li>Low Amp Trip Setting: 1750A</li><li>Mounting: Free Standing</li><li>Phase Connection: ABC</li><li>Circuit Breaker Type: Standard</li><li>Width: 6.00"</li><li>Min. Wire Size: 1 AWG (Al)</li><li>Instantaneous Trip: Adjustable</li><li>For Use With: -</li><li>Height: 11.00"</li><li>AC Voltage Rating: 240VAC</li><li>Max. Wire Size: (1) 600 kcmil (Al) or (2) 250 kcmil (Al)</li><li>Depth: 5.80"</li><li>Max. AIR Rating: 25 kA</li><li>Trip Type: Thermal Magnetic</li><li>Item: Circuit Breaker</li><li>Standards: UL listed, CSA certified</li><li>Frame Size: 400A/Q4</li><li>High Amp Trip Setting: 3500A</li><li>Terminal Connection: Lug</li><li>Series: Q4</li><li>Number of Poles: 3</li></ul></p>

Square D Q4 molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. Q4 circuit breaker could be used for muliple applications such as construction, in commercial and industrail buildings, for control equipment panels for OEM commercial and even in mines. Molded case Q4 breakers have an yellow push-to-trip button provides a means to mechanically trip the circuit breaker, allowes maintenance checks on the breaker and othe associated equipment This 3 poles unit mount circuit breaker is equiped with thermal magnetic trip unit with rated current of 400A and voltage of 240 VAC. Breaker has an interrapting rating as 25kA at 240VAC and is provided with UL listed mechanical lugs or optional lugs could be possibly used. All Q4 molded case circuit breakers have trip indication as operating handle being in central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified. This listing is for Each. Brand Square D Warranty Description Contractual Warranty: 18 months Country of Origin Mexico Made in USA No Amperage Rating 350 Connection Lugs load;lugs line Frame Q4 Interrupt Rating 240 V AC, 25 KA AT 240 V AC Number of Poles 3 Special Features UNIT MOUNT Standard UL LISTED-IEC-CSA RoHS URL / ?action=export&pid=434405&lang=en-us Item Type Circuit breaker Length 5.84 Width 6 Height 11 Operating Temperature 40 A Degrees C Trip Range 1750 A, 350 A, 3500 A Trip Type Thermal-magnetic Voltage Rating 240 V AC
