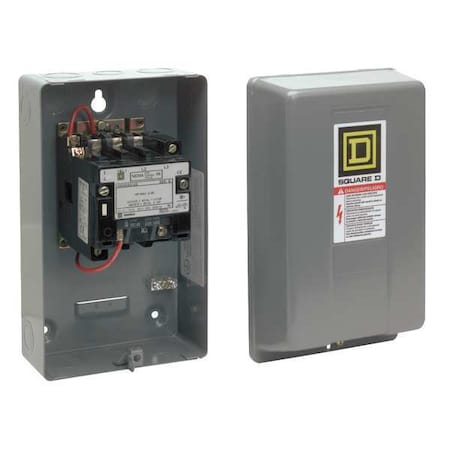

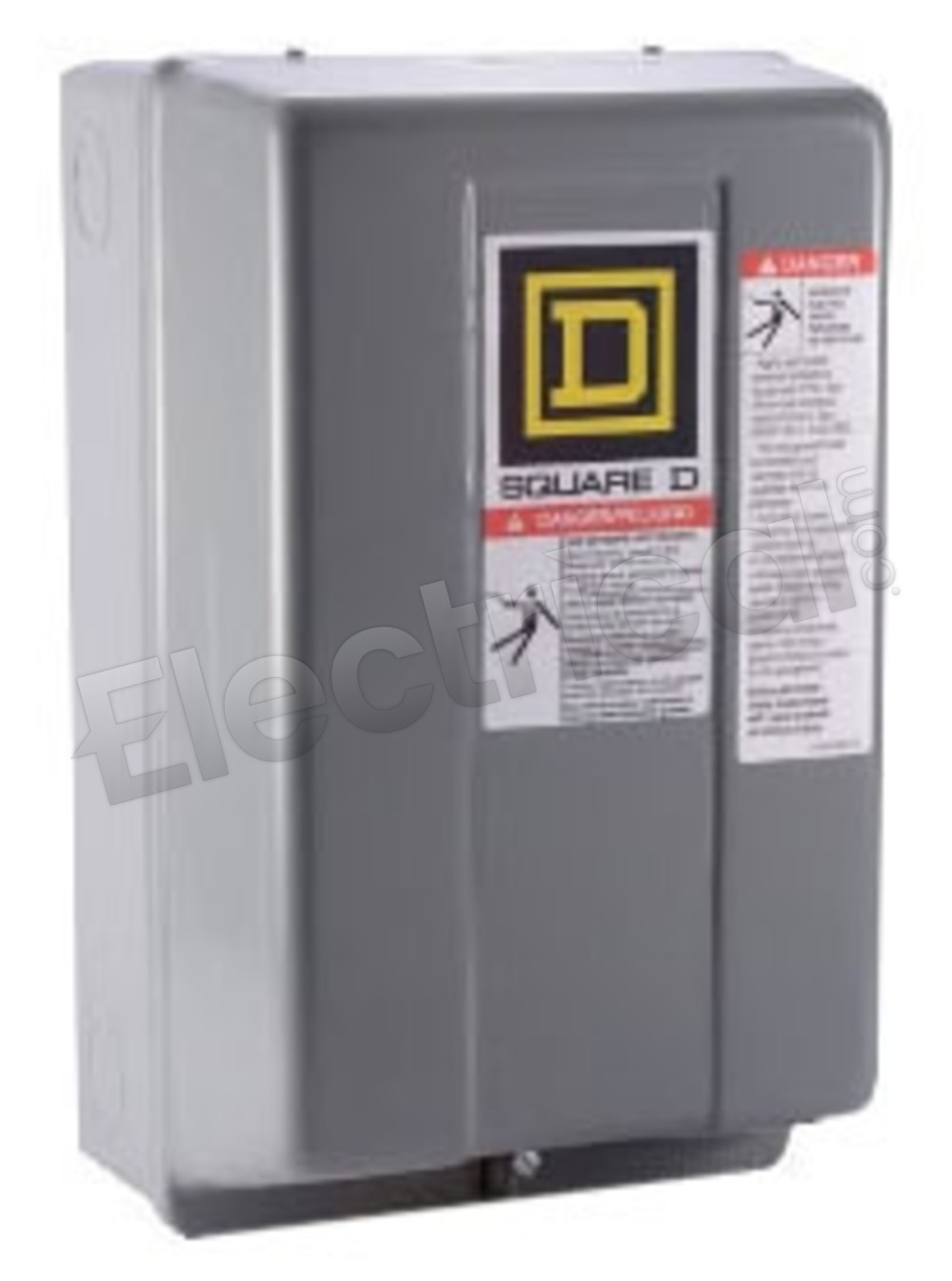

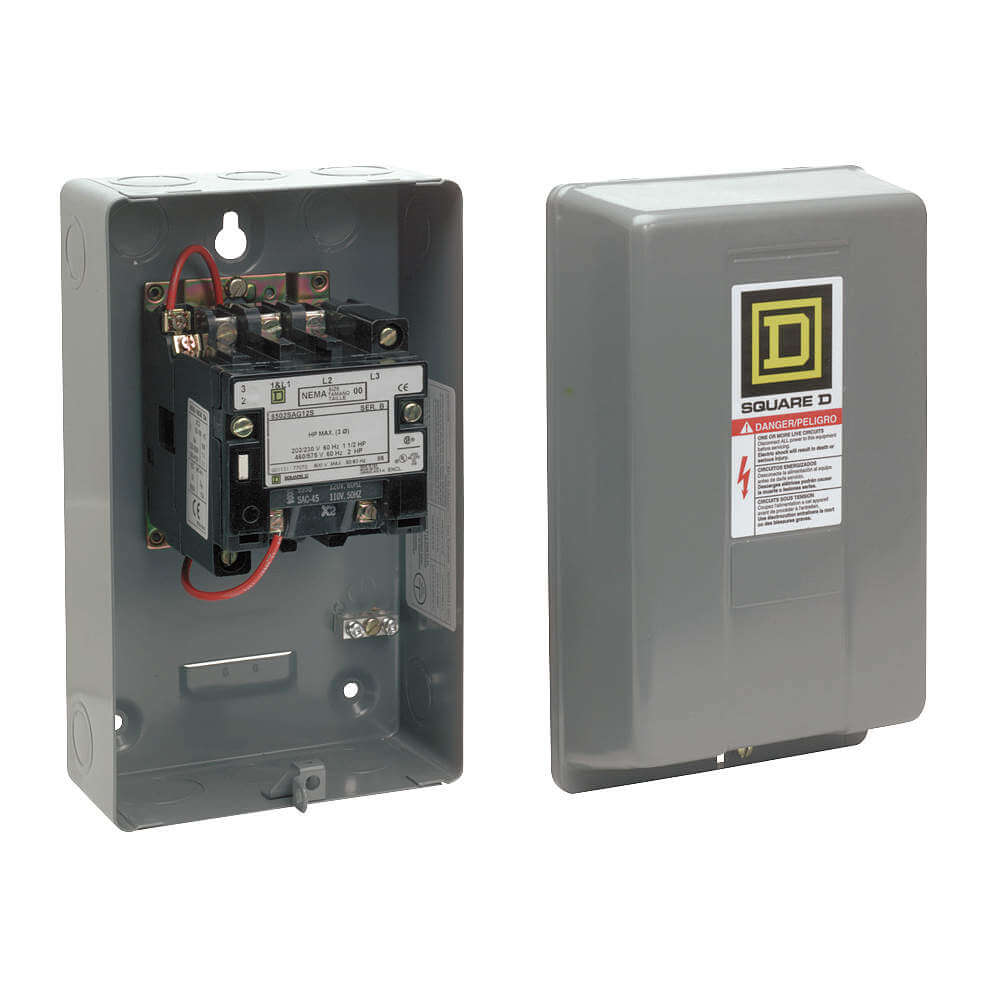

SQUARE D . 8502SAG12V02S

Class 8502 Type S magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided. Normally open holding-circuit contact for 3-wire control is provided as standard. Type S contactors are designed for operation at 600 Volts maximum. Used with heating loads, capacitors, transformers, electric motors, and other power loads where overload protection is provided separately. Commonly used in contruction, infrastructure, oil and gas, transportation and other applications. In accordance with NEMA standards.<br /><br /> Item: NEMA Magnetic Contactor<br /> Full Load Amps: 9<br /> Coil Volts: 120VAC<br /> NEMA Contactor Size: 00<br /> Reversing: No<br /> HP @ 3 Phase - 208V: 1-1/2<br /> HP @ 3 Phase - 240V: 1-1/2<br /> HP @ 3 Phase - 480V: 2<br /> HP @ 3 Phase - 575V: 2<br /> Number of Poles: 3<br /> Enclosure NEMA Rating: 1<br /> Hz: 50/60<br /> Height: 10"<br /> Width: 5.28''<br /> Depth: 6"<br /> Frame / Series / Class / Code: Class 8502<br /> Standards: UL, CSA<br />
