Proximity Series DSS Direct-Contact Speed Switch DSS-W3. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

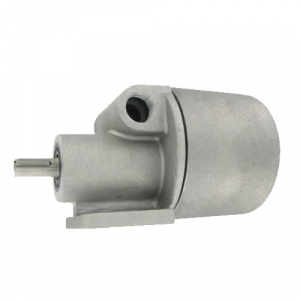

Proximity . DSS-W3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerProximity
Weight5
WeightUnitlbs
Weight_AttribWeight
moq, multiple, tierMinQty11
MPN, SKUDSS-W3
qtyInStock0
snippetProximity Series DSS Direct-Contact Speed Switch DSS-W3. ✅$20 OFF Orders over $599 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice11090.00
Temperature Limits-50 to 150°F
EnclosureAluminum with screw cover
Enclosure RatingMeets NEMA 4X
Switch TypeDPDT
Electrical Rating3A @ 120/240 VAC, 1/10 Hp @120/240 VAC
Electrical ConnectionsScrew terminal
Conduit Connections(2) 3/4" female NPT
Mounting OrientationAny
Set Point AdjustmentAdjustment screw
Power Requirements24 VAC/DC
Power Consumption3 Watts
Repeatability2% maximum at constant voltage and temperature
Signal PointSpeed at which relay will de-energize. Recommended to be 15-20% lower than pick-up point
Start-up DelayAdjustable up to 45 seconds
Radial Load on Input Shaft125 lbs maximum
End Thrust on Input Shaft100 lbs maximum
RotationEither clockwise or counter-clockwise
Driving Torque1"/lb maximum
Shaft5/8" diameter with 3/16" x 7/8" key
Agency ApprovalsUL

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotDSS-W3111 @ $1090.00
usmegastore.comDSS-W31Contact Us11 @ $1069.00
