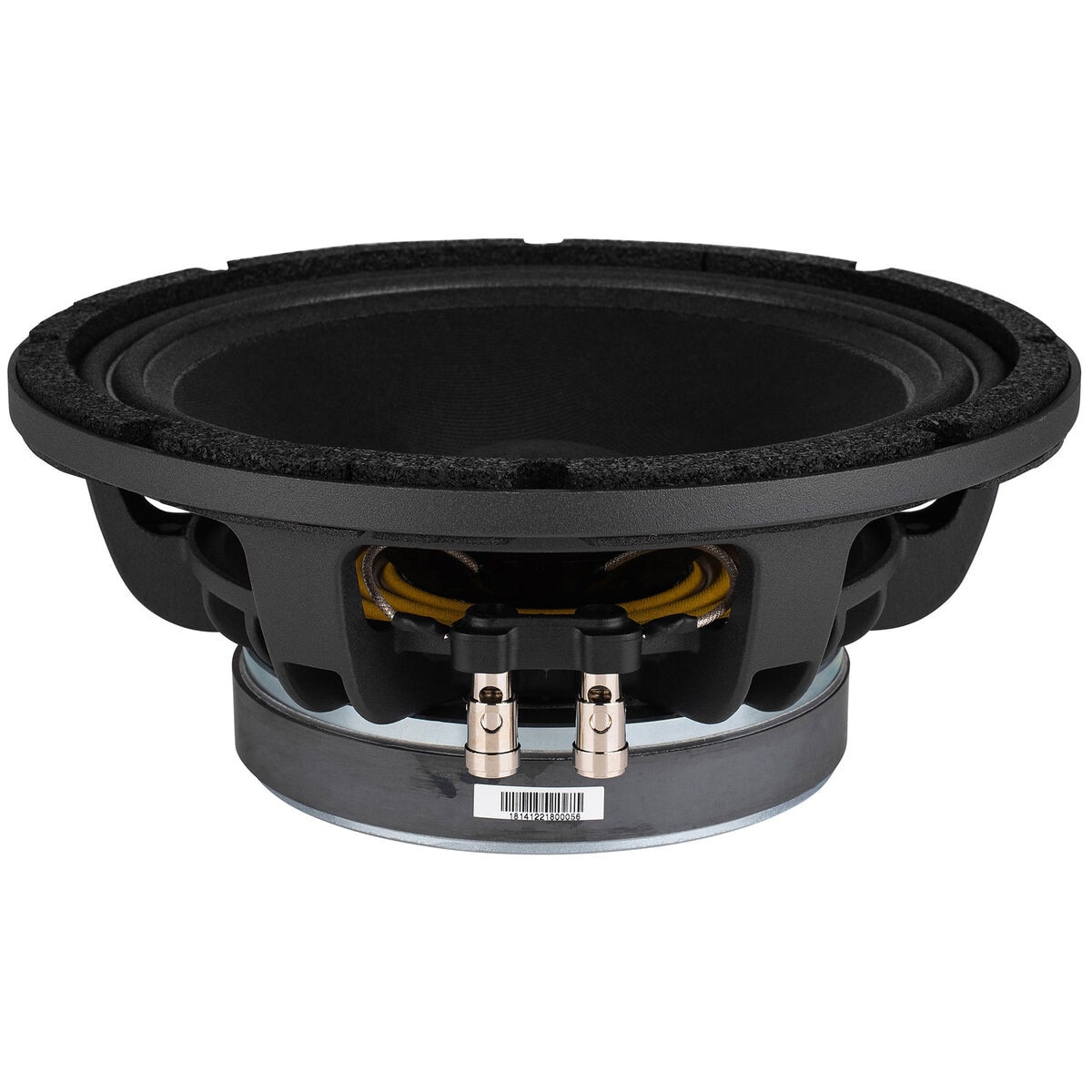

LaVoce WAF102.50 10" Ferrite Woofer

LaVoce . WAF102.50

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF102.50 10" Ferrite Woofer
UPC848864057385
Weight12.45
WeightUnitlbs
depth, length4.5
diameter, height, width10.28
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF102.50
qtyInStockOnly 2 In Stock
SKU, Part Number293-716
snippetLaVoce WAF102.50 10" Ferrite Woofer. Part Number: 293-716 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter10"
Bolt Circle Diameter9.69
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8?
Frequency Response70 to 4,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)71Hz
DC Resistance (Re)5.5?
Voice Coil Inductance (Le)0.8mH
Mechanical Q (Qms)5.3
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)0.83ft?
Mechanical Compliance of Suspension (Cms)0.14mm/N
BL Product (BL)16T?m
Diaphragm Mass Inc Airload (Mms)34.6g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)347cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter10.28"
Baffle Cutout Diameter9.12"
Depth4.5"
# Mounting Holes8
Vented Volume1ft?
Vented F367.8Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-7161Only 2 In Stock1
