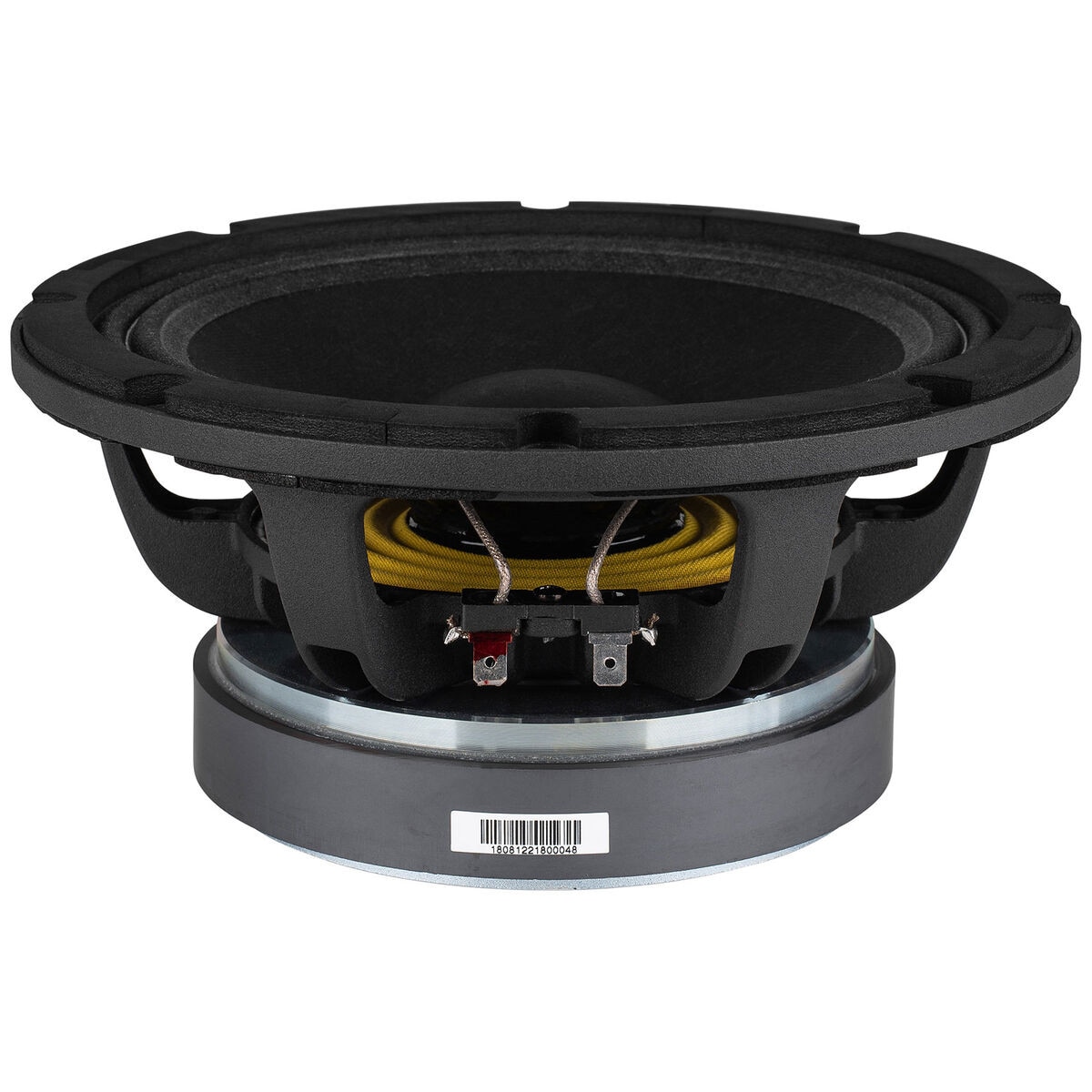

LaVoce WAF082.00 8" Ferrite Woofer 8 Ohm

LaVoce . WAF082.00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF082.00 8" Ferrite Woofer 8 Ohm
UPC848864057361
Weight10.3
WeightUnitlbs
depth, length4.19
diameter, height, width8.43
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF082.00
qtyInStockOnly 1 In Stock
SKU, Part Number293-714
snippetLaVoce WAF082.00 8" Ferrite Woofer 8 Ohm. Part Number: 293-714 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter8"
Bolt Circle Diameter7.87
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8?
Frequency Response80 to 3,000Hz
Sensitivity95.5dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)78Hz
DC Resistance (Re)5.5?
Voice Coil Inductance (Le)0.19mH
Mechanical Q (Qms)3.5
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.42ft?
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)12.5T?m
Diaphragm Mass Inc Airload (Mms)24g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)227cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter8.43"
Baffle Cutout Diameter7.31"
Depth4.19"
# Mounting Holes8
Sealed Volume0.24ft?
Sealed F3119.2Hz
Vented Volume0.75ft?
Vented F369.7Hz
