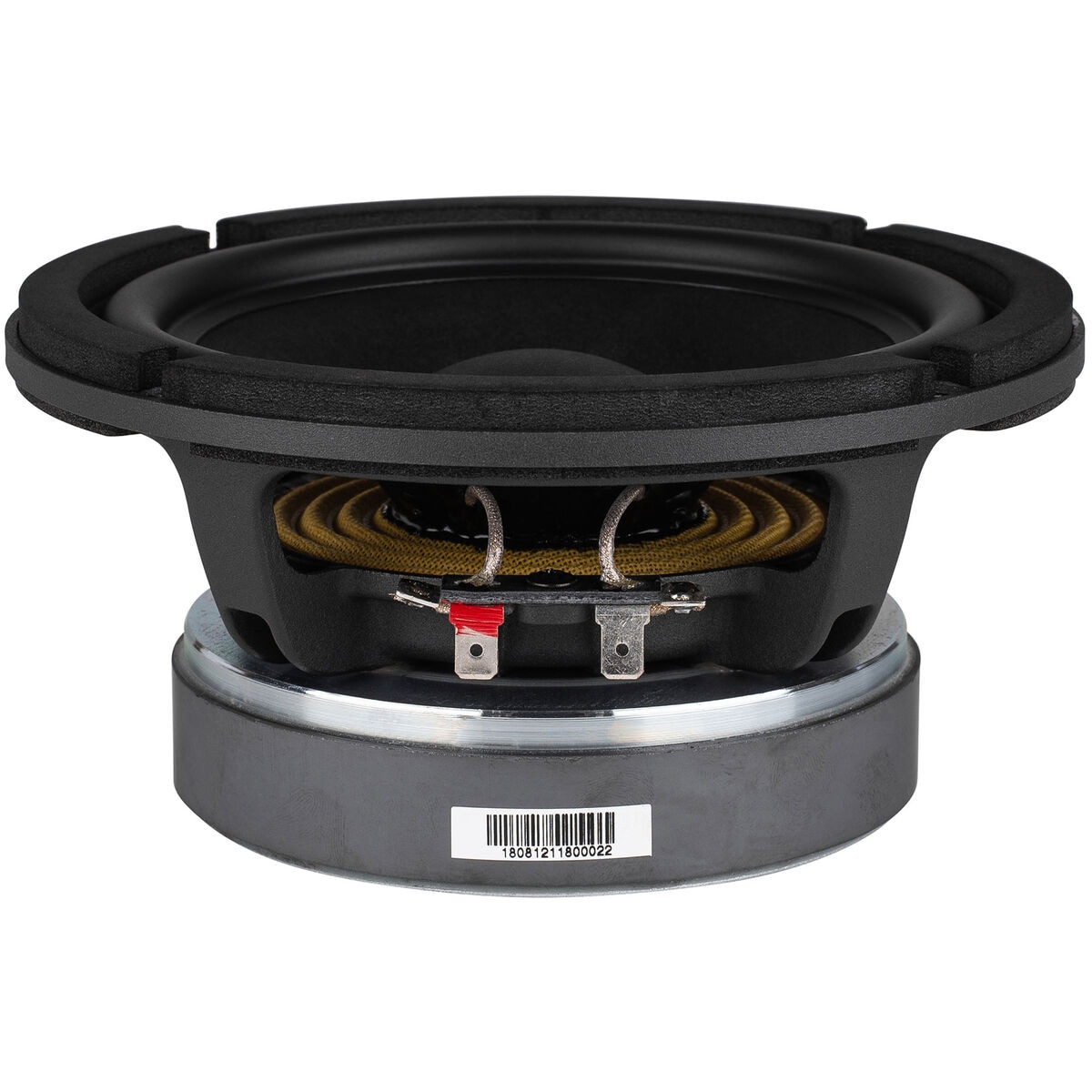

LaVoce WAF061.80 6-1/2" Ferrite Woofer 8 Ohm

LaVoce . WAF061.80

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAF061.80 6-1/2" Ferrite Woofer 8 Ohm
UPC848864057347
Weight5.5
WeightUnitlbs
depth, length3.44
diameter, height, width6.69
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAF061.80
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-712
snippetLaVoce WAF061.80 6-1/2" Ferrite Woofer 8 Ohm. Part Number: 293-712 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter6-1/2"
Bolt Circle Diameter6.14
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8?
Frequency Response65 to 5,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter1.8"
Resonant Frequency (Fs)65Hz
DC Resistance (Re)4.7?
Voice Coil Inductance (Le)0.33mH
Mechanical Q (Qms)8.6
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)0.26ft?
Mechanical Compliance of Suspension (Cms)0.3mm/N
BL Product (BL)9.5T?m
Diaphragm Mass Inc Airload (Mms)20g
Maximum Linear Excursion (Xmax)4.8mm
Surface Area of Cone (Sd)135cm?
Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter6.69"
Baffle Cutout Diameter5.71"
Depth3.44"
# Mounting Holes4
Sealed Volume0.15ft?
Sealed F390.9Hz
Vented Volume0.3ft?
Vented F360.4Hz
