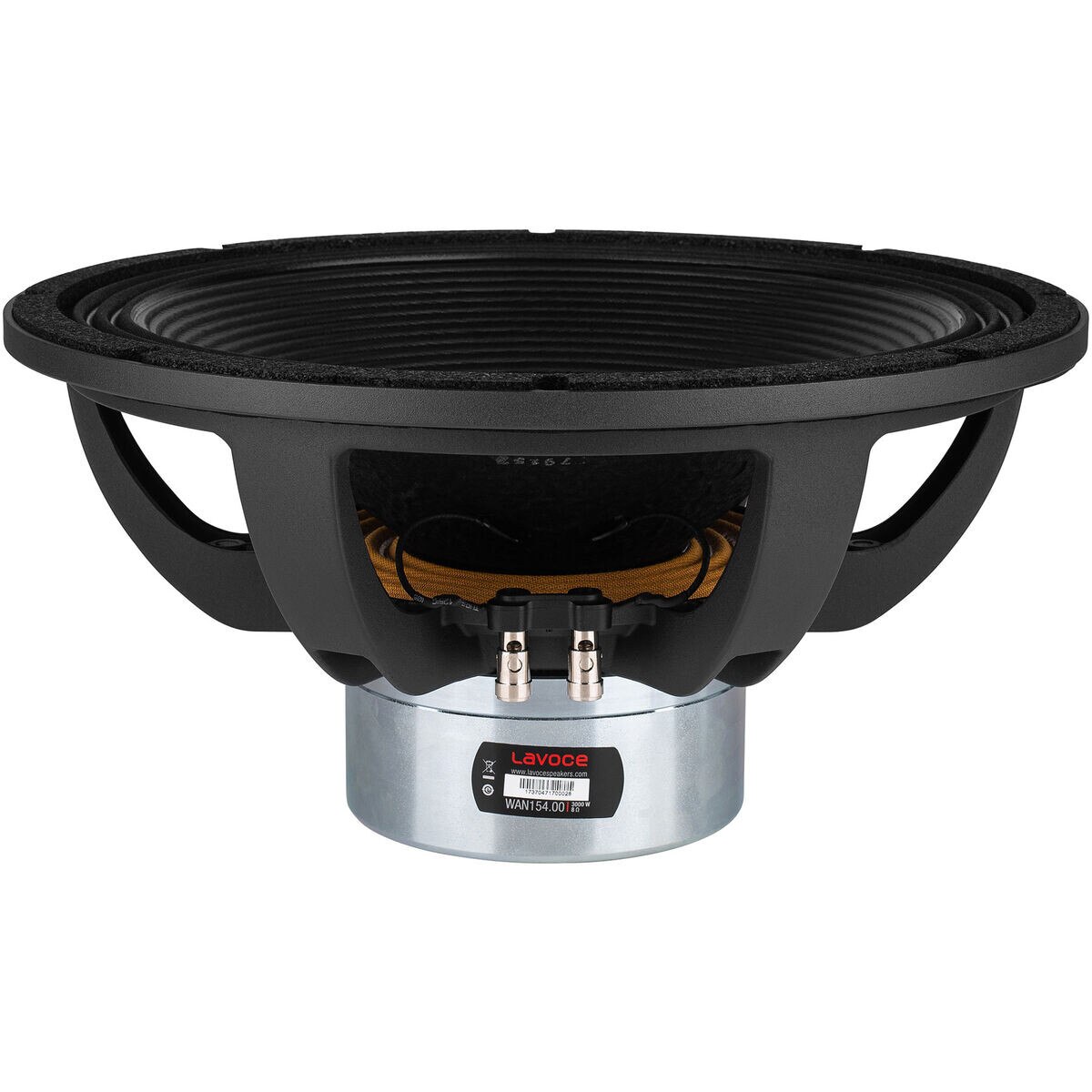

LaVoce WAN154.00 15" Neodymium Subwoofer 8 Ohm

LaVoce . WAN154.00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLaVoce
DimensionUnitinch
Extra Product NameLaVoce WAN154.00 15" Neodymium Subwoofer 8 Ohm
UPC848864057491
Weight25.4
WeightUnitlbs
depth, length7.63
diameter, height, width15.47
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelWAN154.00
qtyInStock0
SKU, Part Number293-726
snippetLaVoce WAN154.00 15" Neodymium Subwoofer 8 Ohm. Part Number: 293-726 by LaVoce.
BrandLavoce
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)1500 Watts
Power Handling (MAX)3000 Watts
Impedance8?
Frequency Response40 to 1,000Hz
Sensitivity95.5dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)40Hz
DC Resistance (Re)5.3?
Voice Coil Inductance (Le)1.8mH
Mechanical Q (Qms)8.5
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)3.71ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)25T?m
Maximum Linear Excursion (Xmax)12.5mm
Surface Area of Cone (Sd)830cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter15.47"
Baffle Cutout Diameter13.93"
Depth7.63"
# Mounting Holes8
Sealed Volume0.968ft?
Sealed F385.05Hz
Vented Volume2.842ft?
Vented F344.98Hz
